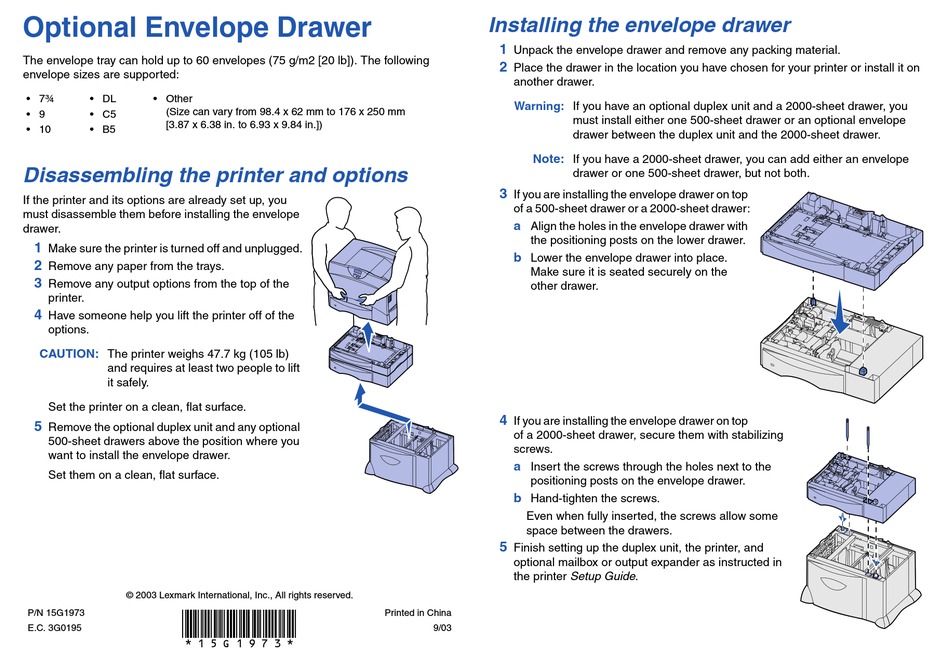

Lexmark C752 Installation Manual

Optional Envelope Drawer
The envelope tray can hold up to 60 envelopes (75 g/m2 [20 lb]). The following
envelope sizes are supported:
• 7¾ • DL • Other
(Size can vary from 98.4 x 62 mm to 176 x 250 mm
• 9 • C5
[3.87 x 6.38 in. to 6.93 x 9.84 in.])
• 10 • B5
Disassembling the printer and options
If the printer and its options are already set up, you
must disassemble them before installing the envelope
drawer.
1
Make sure the printer is turned off and unplugged.
2
Remove any paper from the trays.
3
Remove any output options from the top of the
printer.
4
Have someone help you lift the printer off of the
options.
CAUTION: The printer weighs 47.7 kg (105 lb)
and requires at least two people to lift
it safely.
Set the printer on a clean, flat surface.
5
Remove the optional duplex unit and any optional
500-sheet drawers above the position where you
want to install the envelope drawer.
Set them on a clean, flat surface.
© 2003 Lexmark International, Inc., All rights reserved.
P/N 15G1973 *15G1973*
E.C. 3G0195
Installing the envelope drawer
1
Unpack the envelope drawer and remove any packing material.
2
Place the drawer in the location you have chosen for your printer or install it on
another drawer.
Warning:
Note:
3
If you are installing the envelope drawer on top
of a 500-sheet drawer or a 2000-sheet drawer:
a
Align the holes in the envelope drawer with
the positioning posts on the lower drawer.
b
Lower the envelope drawer into place.
Make sure it is seated securely on the
other drawer.
4
If you are installing the envelope drawer on top
of a 2000-sheet drawer, secure them with stabilizing
screws.
a
Insert the screws through the holes next to the
positioning posts on the envelope drawer.
b Hand-tighten the screws.
Even when fully inserted, the screws allow some
space between the drawers.
5
Finish setting up the duplex unit, the printer, and
optional mailbox or output expander as instructed in
the printer Setup Guide.
Printed in China
9/03
If you have an optional duplex unit and a 2000-sheet drawer, you
must install either one 500-sheet drawer or an optional envelope
drawer between the duplex unit and the 2000-sheet drawer.
If you have a 2000-sheet drawer, you can add either an envelope
drawer or one 500-sheet drawer, but not both.
