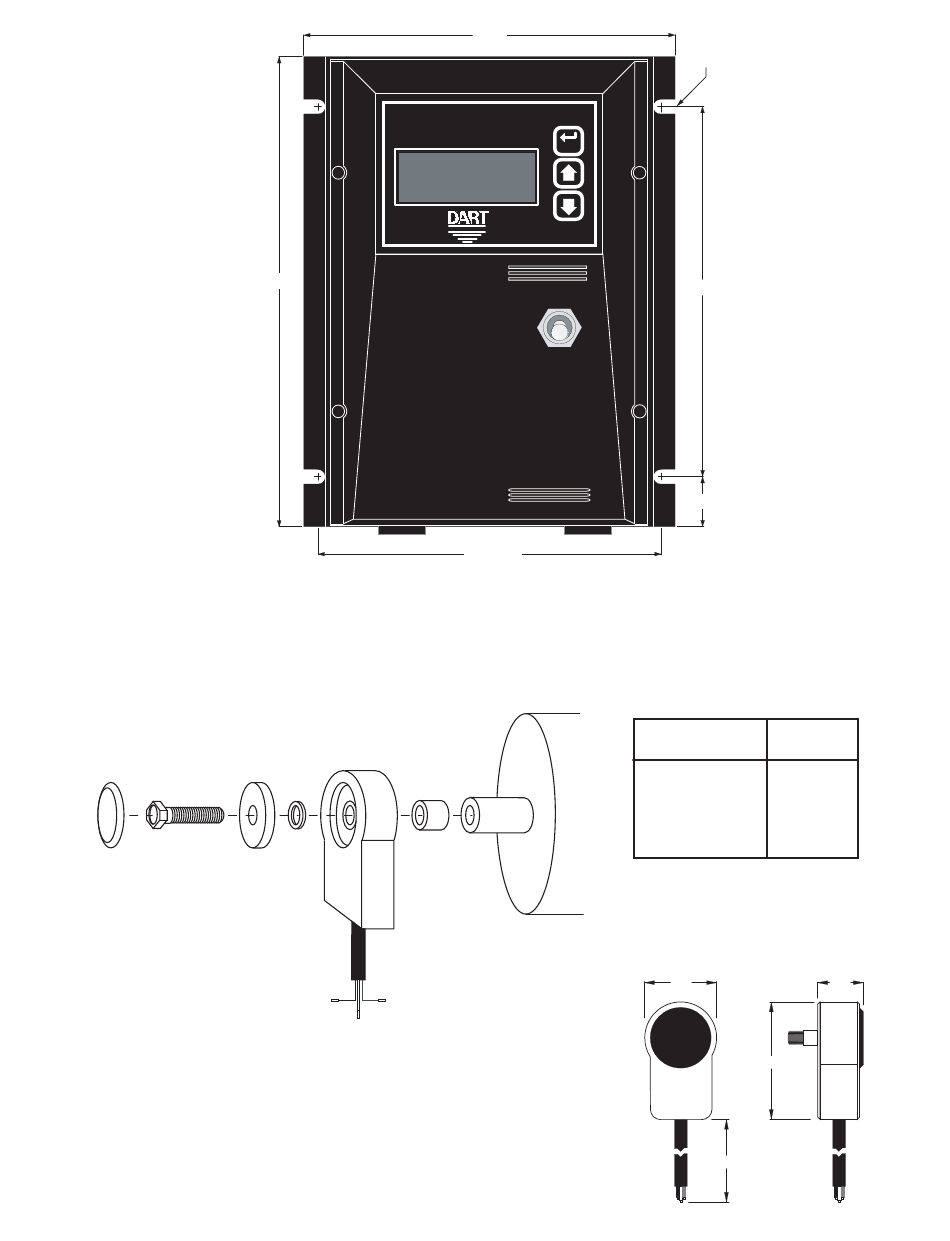

MD3E Mounting and Dimensions
7.400

PU-E Series Pickup Installation

The PU-E series pickup is an economical way to monitor motor speed. Its patented design provides for
ease of installation in otherwise diffi cult to reach areas. The PU-E operates from a +5V power supply,
producing a 5 volt square wave whose frequency is proportional to speed. This signal is fed into the
MDP control as a speed or position reference for the microprocessor.
10-32
screw
dust magnet
cover disc
black wire
common
DO NOT OVER TIGHTEN MOUNTING SCREW !!
No other mounting screws are necessary, as the cord
will keep the unit from rotating.
Page Item
CONTROLS
PU-E
bearing
tapped
flat
motor
washer
3/16"
spacer
red wire
+5 volts
white wire
signal
CAUTION:
5.530
Valu Tach
ENTER
ON
OFF
5.125 TYP.
shaft
7
7/32" TYP.
(4 SLOTS)
.350 DEEP
5.500
.750
Model
Pulses per
Number
Revolution
1
PU-2E
2
PU-4E
10
PU-20E
20
PU-40E
Dimensions
1.60 .875
2.40
72.00
