Installation and Mechanical Dimensions

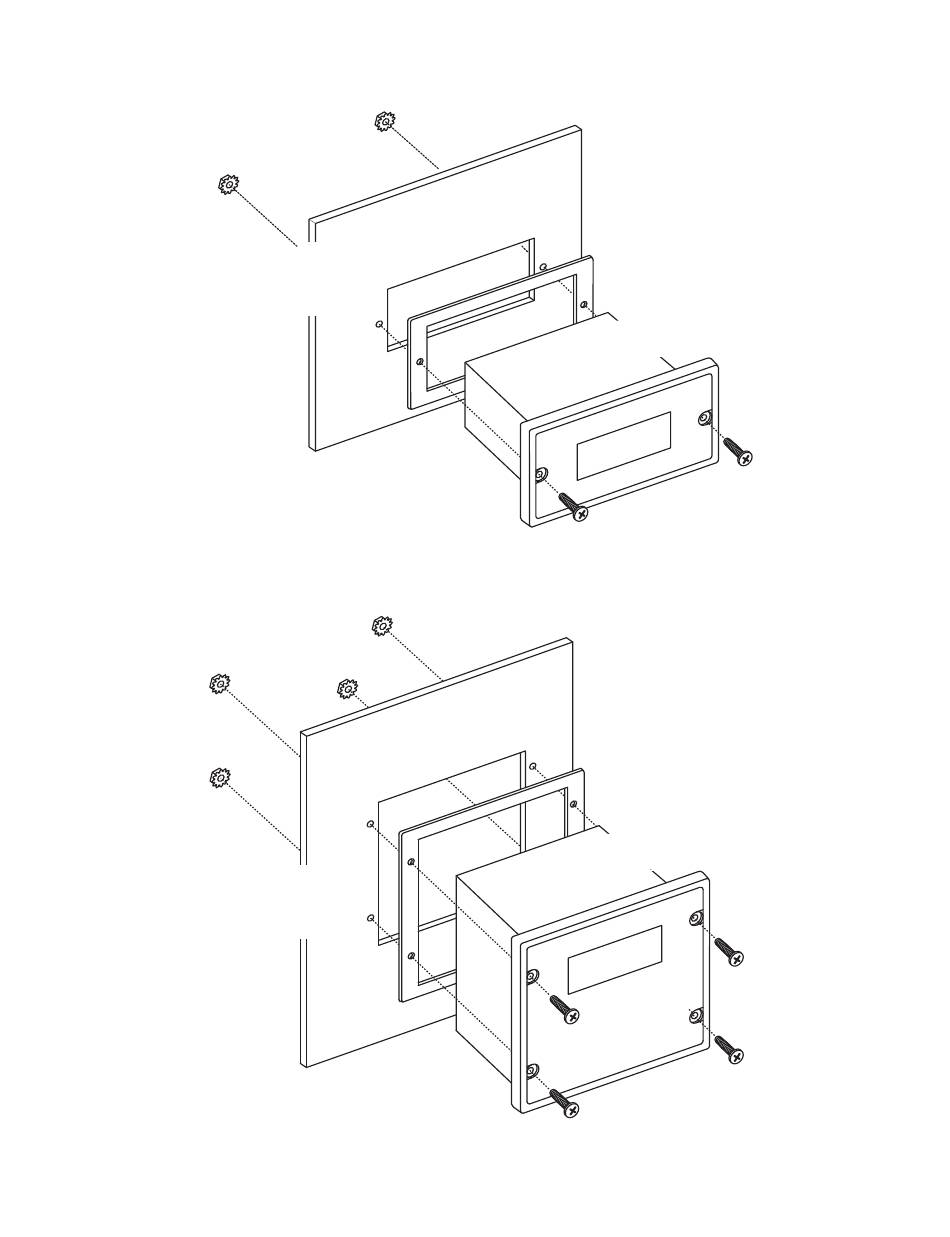

Exploded Panel View

CUSTOMER
MOUNTING PANEL
(HOLE CUT-OUT FOR CONTROL
HOUSING APPROXIMATELY
3.622" WIDE BY 1.770" HIGH)
SUPPLIED WITH EACH CONTROL:
1) GASKET
2) (2) 6-32 X 3/4 PANHEAD BLACK OXIDE STAINLESS SCREWS
3) (2) #6 NUT WITH LOCKWASHER
CUSTOMER
MOUNTING PANEL
(HOLE CUT-OUT FOR CONTROL
HOUSING APPROXIMATELY
3.622" WIDE BY 3.622" HIGH)
SUPPLIED WITH EACH CONTROL:
1) GASKET
2) (4) 6-32 X 3/4 PANHEAD BLACK OXIDE STAINLESS SCREWS
3) (4) #6 NUT WITH LOCKWASHER
PANEL MOUNTING GASKET
(WITH THE ADHESIVE SIDE OF
GASKET FACING THE CUSTOMER
MD10P
CONTROL
PANEL MOUNTING GASKET
(WITH THE ADHESIVE SIDE OF
GASKET FACING THE CUSTOMER
MD3P
CONTROL
5
MOUNTING PANEL)
MOUNTING PANEL)
