- Page 1 Owner’s Manual BSS3x Microwave Radar Blind Spots System Version1.1...
- Page 2 Table of Contents I..Items List......................2 II..Technical Specification..................3 III..Installation Diagram....................3 IV..Wire Connection Diagram..................4 V..Installation Guide....................5 VI..Alert Conditions....................8 VII..System Indicators....................8 VIII...Troubleshooting....................9 IX..Technical Support Info..................9 X..Limited Warranty....................9 XI..To Obtain Warranty Service................10...

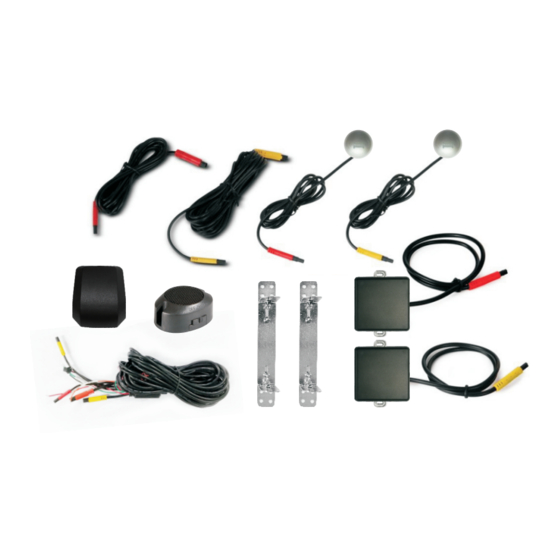

- Page 3 I. Items list Number Item Name Quantity Picture Main Harness 1SET &Extension Cable Radar Sensor 2PCS LED Indicator 2PCS LED Indicator Housing 2PCS Adjustable Buzzer GPS Antenna Radar Puck Bracket 2PCS Installation Angle Tool Drill 1PC& Drill Bit and Rivets Rivets 12PCS Zip Ties 10PCS...
-
Page 4: Important Safety Information
II. Technical Specification Detection Angle 70 degrees ( Horizontal ) < 0.5mph Speed Accuracy Speed Restriction The system will be only activated at the speed over 18mph Direction of Movement Vehicles Approaching or Vehicles You Are Passing Detection Range -6.5ft to 80ft Operating Voltage 8V to 30V Waterproof... - Page 5 IV. Wire Connection Diagram L_sensor R_sensor Yellow Black Black ACC/IGN Orange R_lamp Pink Yellow L_lamp Black L_LED indicator Green Reverse Trigger R_LED indicator Buzzer...
- Page 6 V. Installation Guide 1. Sensor Installation Use Supplied Tool to Set Proper Radar Puck Angle: the default installation angle is: 38 degree. Depending on actual situation, the install angle could be adjusted accordingly: 38° 38°...
- Page 7 Mounting Radar Pucks with Provided Adjustable Brackets from side Please follow directions below: 1) Prepare Materials: 2) Mount the sensor module on the bracket: 3) After found angle set, firmly screw or bolt the bracket to the car:...
- Page 8 2. Installation of the left/right turn signal. Step 2. Using the voltage multi-meter, locate the left and right isolated* turn signal trigger wires behind the tail lamp. Once verified, connect the left and right signal wires of the BSS3x wire harness to the correct signal wires.
- Page 9 VI. Alert conditions: When the system is on and functioning, the system is designed to detect the following events: 1. Blind spots while driving: Objects in the blind spot areas around your vehicle-in the lanes on the left/right and directly behind the vehicle at a distance of up to 82 ft (approximately 25 m). 2.
- Page 10 1. Installation by anyone other than an authorized Rydeen Mobile Retailer may void the warranty. 2. Any products distributed outside of the USA by Rydeen North America Inc. (Rydeen) or which is not purchased in the USA or Canada. 3. Any product(s) which are purchased from an unauthorized retailer (in-store or online).
- Page 11 Any cosmetic damages due to normal wear and tear. g) Any consumable items (such as fuse or batteries). If any problems develop with your Rydeen products during or after the Limited Warranty Period, or if you have any questions regarding the operation or installation of the product, you should contact your Rydeen retailer.
- Page 12 Phone: 1-877-777-8811 Fax: 1-310-943-3778 Copyright © 2020 Rydeen North America Inc. All Rights Reserved. RYDEEN ® is a registered trademark of Rydeen North America Inc. These materials are protected by copyright law and international treaties. Any unauthorized use, reproduction or distribution of these materials, or any portion herein, will result in severe civil and...
