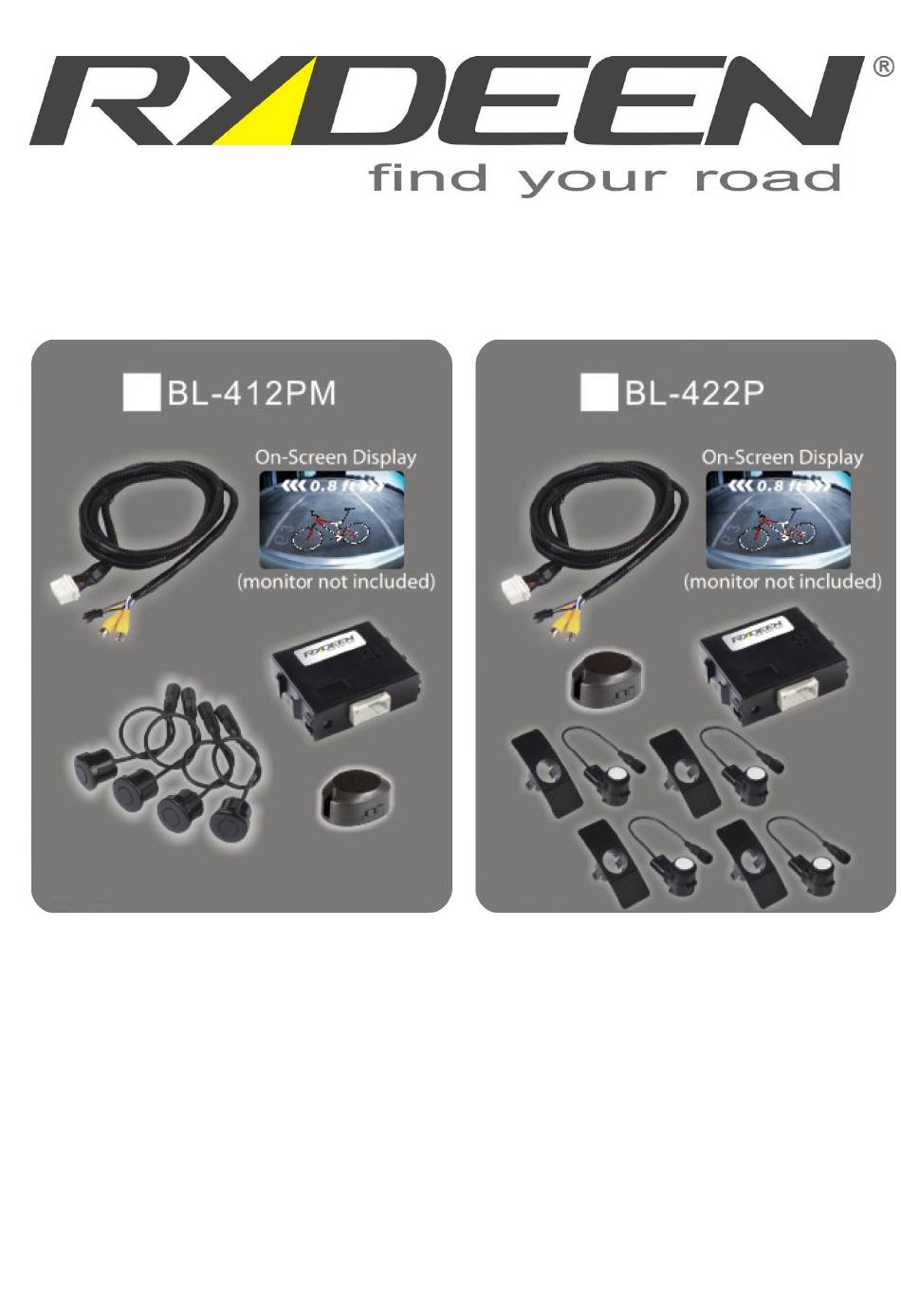

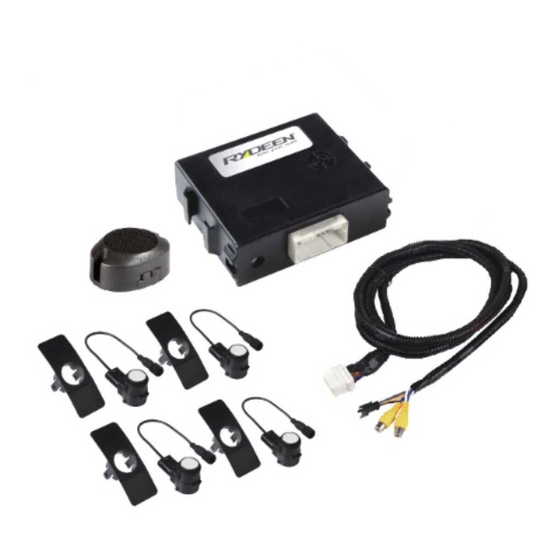

- Page 1 BL-422P BL-412PM Owner’s Manual Ultrasonic Parking Sensor Systems v1.1...
- Page 2 The Parking Sensor Systems are used for the rear placement only, these are not recommended for front mounted bumpers. The use of Rydeen Parking Sensor system should never replace normal operational and safety precautions needed for reversing a vehicle.
- Page 3 For BL-412PM Paint the plastic rings together with the sensor heads. 5) (BL-422P ONLY) Depending on the vehicle body color, place white silicon rubber rings for a lighter color vehicle, place black rings for a dark color vehicle. 3. System Overview For a Passenger Car Place the speaker and control box inside a vehicle.
- Page 4 For a Truck 4. Installation 1) The proper placement of the sensors is important both for appearance and for the proper operation of the unit. Sensors should be mounted at 90° angles to the ground. It is important to avoid obstructions caused by bumper shape. 2) Measure the height on a bumper for proper installation locations.
- Page 5 BL-422P sensors MUST be installed inside the bumper and only the sensor head to exposed to outside. Bumper removal is required for this installation. Top view BL-412PM sensors MUST be installed from outside of the bumper. Please check the direction dot (WHITE) and make sure of the correct orientation.
- Page 6 Important! Do not use the negative charge wire of the vehicle back-up light for ground. Some vehicles have a “check bulb” feature that makes that wire not a true ground. The system may not detect a small and round pole (such as a fire hydrant or light pole, etc).
- Page 7 6) Check for if the image is in a perfect mode. Adjust according to camera or monitor’s installation manual. 7. Technical Support Contact Info If you have other questions about the RYDEEN Parking Sensor Products, please contact your retailer or Technical Support: •...
- Page 8 (Parking Sensor Systems) only to the original purchaser as described by the following: Warranty Period Rydeen warrants this product for a period of one (1) year from the original purchase date. Warranty Coverage This warranty covers all defects in material and workmanship except as specified below.
