Rydeen BSS3 Owner's Manual

Microwave radar blind spots system
Hide thumbs Also See for BSS3:
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
BSS3
Microwave Radar Blind Spots System
Version 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BSS3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rydeen BSS3

Summary of Contents for Rydeen BSS3

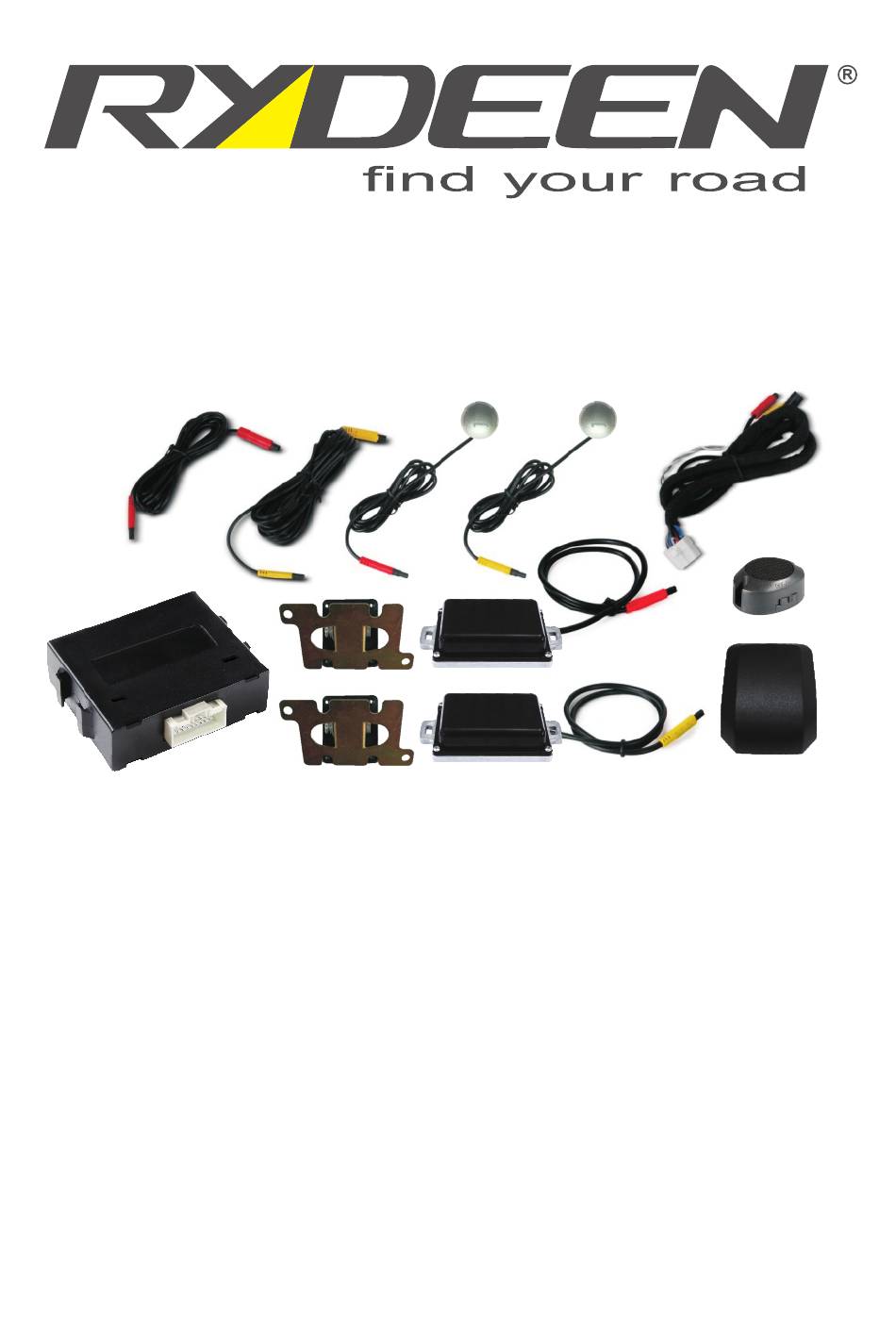

  • Page 1 Owner’s Manual BSS3 Microwave Radar Blind Spots System Version 1.1...
  • Page 2 Table of Contents I..Items List......................2 II..Technical Specification..................3 III..Installation Diagram....................3 IV..Wire Connection Diagram..................4 V..Installation Guide....................5 VI..Alert Conditions....................8 VII..How does it Alert....................8 VIII...Troubleshooting....................9 IX..Technical Support Info..................9 X..Limited Warranty....................9 XI..To Obtain Warranty Service................10...

  • Page 3: Items List

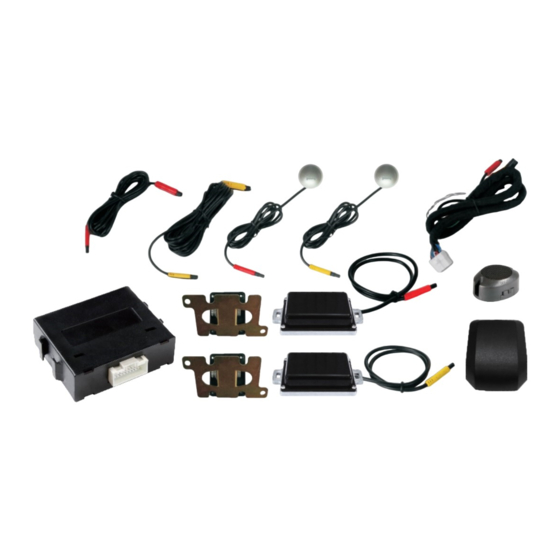

    I. Items list Number Item Name Quantity Picture Main Unit Main Harness 1SET &Extension Cable Sensor Extension 1SET Cable (R&L) LED Extension 1SET Cable (R&L) Radar Sensor 2PCS LED Indicator (R&L) 1SET Extra LED Indicator Lens 2PCS and Double Sided Tape GPS Antenna Buzzer 4 PCS hook-and-...

  • Page 4: Technical Specification

    II. Technical Specification Detection Range 52 degrees ( Horizontal ) Speed Range 0.5mph 137mph < 0.5mph Speed Accuracy 1. There are 4 speed restriction option: 5 mph, 10 mph, Speed Restriction 15 mph, 20 mph. Default is 20mph. Please see below (from 1-4 switch, it could control 4 speed restriction) Switch 1 =5 mph, Switch 2=10 mph, Switch 3=15 mph, Switch 4=20 mph 2.

  • Page 5: Wire Connection Diagram

    IV. Wire Connection Diagram Black FUSE(2A) Black ACC/IGN Yellow Yellow L_sensor Orange Black R_lamp L_LED indicator Pink L_lamp R_sensor Green Reverse Trigger R_LED indicator Buzzer...

  • Page 6: Sensor Installation

    V. Installation Guide 1. Sensor Installation There are two angle tools included for adjustment of microwave radar pucks: A. Using the 20-degree angle tool will cover B. Using the 17-degree angle tool will cover a wider range of detection. a narrow range of detection. 17 or 20 17 or 20...
  • Page 7 Mounting Radar Pucks with Provided Adjustable Brackets Note: Please install it according to the correct wiring way 1) Prepare the material 2) Use 4 small screws to install the bracket to the sensor backside 3) Use two big screws to fix the bracket on the car 4) After angle fixed, fix firmly the screw of the bracket...
  • Page 8 2. Installation of the left/right turn signal. Step 2. Using the voltage Multi-meter, locate the left and right isolated turn signal trigger wires behind the tail lamp. Once verified, connect the left and right signal wires of the BSS3 wire harness to the correct signal wires.

  • Page 9: Alert Conditions

    VI. Alert conditions: WARNING THIS PRODUCT FUNCTIONS AS AN AID FOR NOTIFYING THE PRESENCE OF OBSTACLES IN VEHICLE BLIND SPOTS. IT DOES NOT DETECT ALL DANGERS AND OBSTACLES AND IS NOT A SUBSTITUTE FOR YOUR JUDGEMENT AND CAREFUL ATTENTION. BEFORE ANY MANEUVER, VISUALLY CHECK BOTH SIDES OF THE VEHICLE TO CONFIRM. When the system is on and functioning, the system is designed to detect the following events: 1.

  • Page 10: Troubleshooting

    1. Installation by anyone other than an authorized Rydeen Mobile Retailer may void the warranty. 2. Any products distributed outside of the USA by Rydeen North America Inc. (Rydeen) or which is not purchased in the USA or Canada. 3. Any product(s) which are purchased from an unauthorized retailer (in-store or online).
  • Page 11 Any cosmetic damages due to normal wear and tear. g) Any consumable items (such as fuse or batteries). If any problems develop with your Rydeen products during or after the Limited Warranty Period, or if you have any questions regarding the operation or installation of the product, you should contact your Rydeen retailer.
  • Page 12 Phone: 1-877-777-8811 Fax: 1-310-943-3778 Copyright © 2020 Rydeen North America Inc. All Rights Reserved. RYDEEN ® is a registered trademark of Rydeen North America Inc. These materials are protected by copyright law and international treaties. Any unauthorized use, reproduction or distribution of these materials, or any portion herein, will result in severe civil and...
