Rydeen CM-AHD1 Owner's Manual

AHD Backup Camera

Speciﬁcations

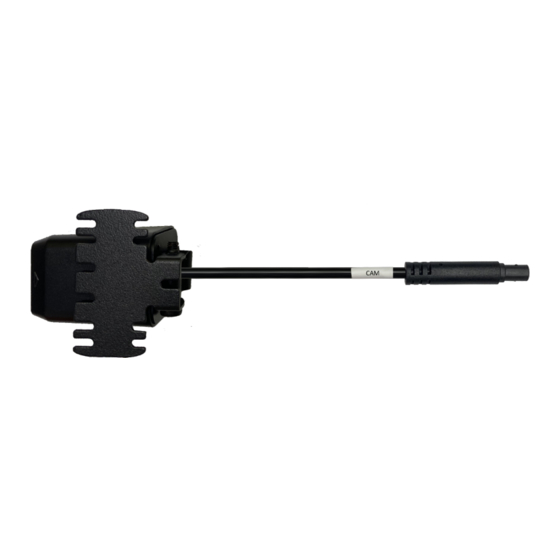

Thank you for purchasing the Rydeen CM-AHD1. The CM-AHD1 is a high deﬁnition backup

camera which is compatible with the following Rydeen rear view mirrors ( TOMBO 360,

TOMBO 360X, 360 VIEW, SM1 & DC1).

The CM-AHD1 can be mounted using any of the following methods. Choose the conﬁguration

that best suits your vehicle.

Use Wing Mount attached on camera (pre-installed)

Rear windshield mounting location (Interior Top Mounted)

Pillar B

Owner's Manual

Included Items

AHD Camera Extension Cable

Rear

Windshield

Pillar C

Allen Key

Table of Contents

Do you have a question about the CM-AHD1 and is the answer not in the manual?

Page 1 AHD Camera Extension Cable Speciﬁcations Product Introduction Thank you for purchasing the Rydeen CM-AHD1. The CM-AHD1 is a high deﬁnition backup camera which is compatible with the following Rydeen rear view mirrors ( TOMBO 360, TOMBO 360X, 360 VIEW, SM1 & DC1).
Page 2 Warranty Period Rydeen warrants this product for a period of one (1) year from the original purchase date. Warranty Coverage This warranty covers all defects in material and workmanship except as speciﬁed below.
