Owner's Manual
BSS2
Microwave Radar Blind Spots System
Version 2.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BSS2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rydeen BSS2

Summary of Contents for Rydeen BSS2

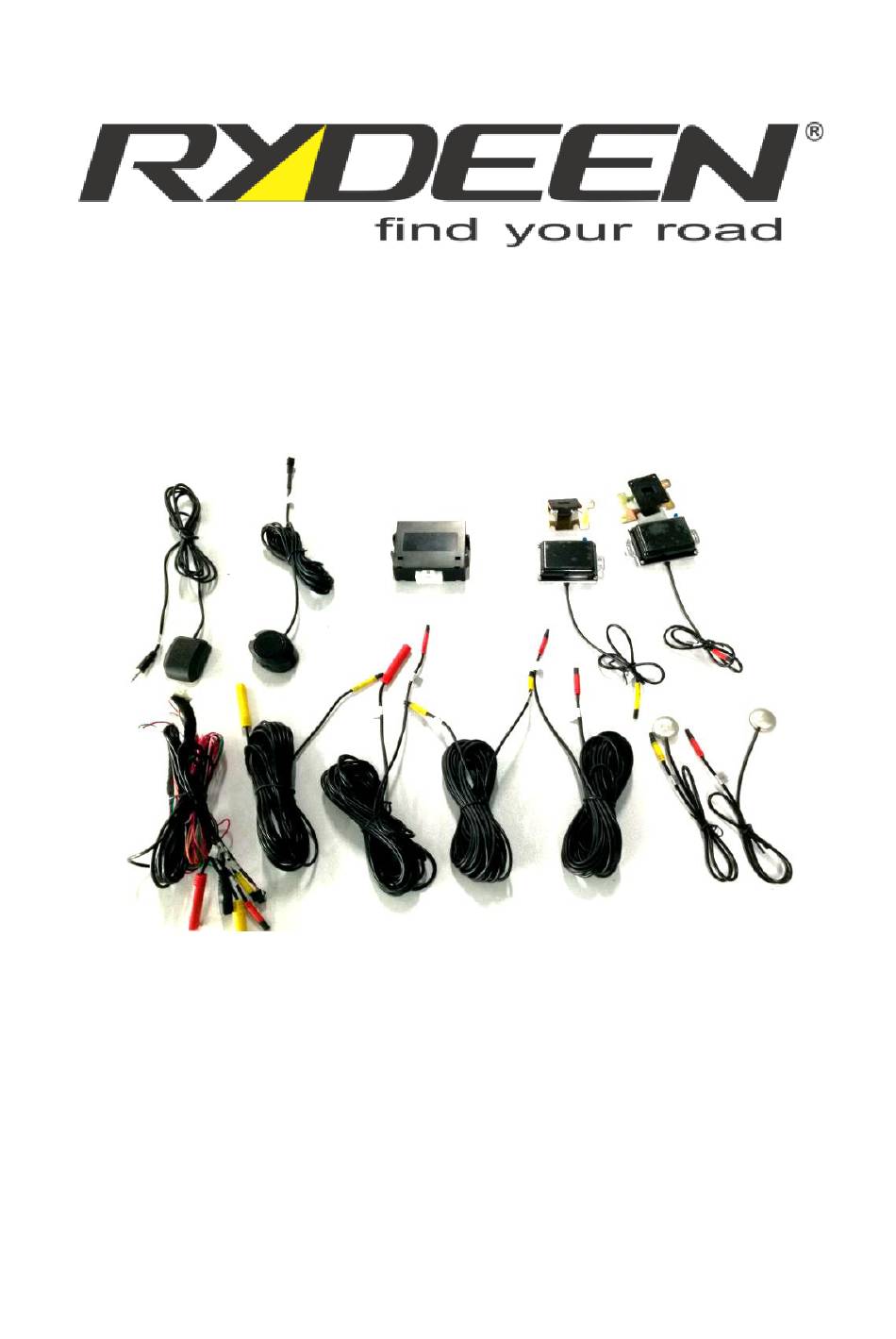

  • Page 1 Owner’s Manual BSS2 Microwave Radar Blind Spots System Version 2.1...

  • Page 2: Table Of Contents

    Table of Contents Items List ..........................2 Technical Specification ..................3 III. Installation Diagram.................... 4 Wire Connection Diagram ................... 4 Installation Guide ....................5 Alert Conditions ....................9 VII. How does it alert ....................10 VIII. Troubleshooting ....................11 Technical Support Info.

  • Page 3: Items List

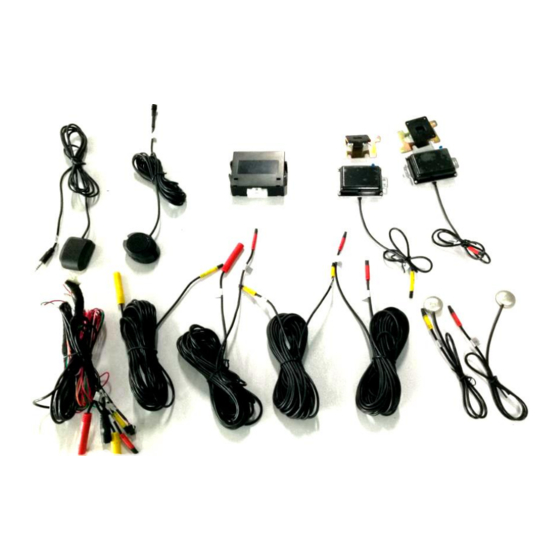

    I. Items list Number Item Name Quantity Picture Main Unit 1PCS Main Harness 1SET + Extension Cable Radar Sensor 2PCS LED Indicator (BLACK LED’S?) 2PCS GPS Antenna 1PCS Buzzer 1PCS Puck Bracket 2PCS Installation Angle Tool 1PCS...

  • Page 4: Technical Specification

    II. Technical specification Sensor Operating Frequency 24GHz Transmit Power 15dbm Detection Area Range 1feet - 35 feet Detection Ability 5 targets can be detected at the same time Detection Speed Range 0.5mph---137mph Speed Accuracy < 0.5mph 1. There are 4 speed restriction options; 5 mph, 10 mph, 15 mph, 20 mph.

  • Page 5: Installation Diagram

    III. Installation Diagram IV. Wire Connection Diagram...

  • Page 6: Installation Guide

    Step1: Measuring method: Measure the rear bumper using the angle gauge to locate the 20 to 30 Degrees angle. (Fig.3-Fig.4) Fig.3 Fig.4 The microwave sensors are only intended for plastic bumpers vehicles. Please note the BSS2 is NOT applicable metal bumpers.
  • Page 7 Step2: Locate the desired position for the radar pucks. (Fig.5 - Fig.6) Fig.5 Fig.6 Step3: Remove the rear bumper to clean the surface for the radar pucks. (Fig.7) Make sure the surface is clean before Velcro placed with sensors. Fig7 Step4: Place the provided Velcro (To Help Absorb Vibration) on the surface of the sensors (black side) and the desired location on the bumper (See image below).
  • Page 8 Mounting Radar Pucks with Provided Adjustable Brackets Use Angle Tool to Set Proper Angle...
  • Page 9 Step 5. Using the voltage multi-meter, locate the left and right turn signal trigger wires behind the tail lamp. Once verified, connect the left and right signal wires of the BSS2 wire harness to the correct signal wires. (Fig10, Fig11, Fig12) (Please make sure not shared with Brake Lamp)

  • Page 10: Alert Conditions

    Note Illumination of the LED indicator on the control box: 1. The LED comes on solid when the system is first powered up; 2. The LED blinks slowly while GPS module is connected to the satellites; 3. The LED blinks quickly while sensing moving objects that are approaching in the blind spot (same frequency as to the alarm LED indicators &...

  • Page 11: How Does It Alert

    VII. How does it alert? A. Blind Spot detection on right side: 1. R-LED indicator will be activated, and indicator will glow when there is an object approaching to the right-side blind area of your vehicle at speed over 20 mph. 2.

  • Page 12: Troubleshooting

    IX. Technical Support Contact Info. • Telephone: 1-877-777-8811 (within USA only) • Email: tech1@rydeenmobile.com • Web Address: www.rydeenmobile.com X. Limited Warranty Rydeen North America Inc. (a manufacturer of “Rydeen" products) warrants this product (BSS2) only to the original purchaser as described following:...

  • Page 13: Limited Warranty

    This warranty covers all defects in material and workmanship for (1) year except as specified below. 1. Installation by anyone other than an authorized Rydeen Mobile Retailer may void the warranty. 2. Any products distributed outside of the USA by Rydeen North America Inc. (Rydeen) or which is not purchased in the USA or Canada 3.
  • Page 14 Phone: 1-877-777-8811 Fax: 1-310-943-3778 Copyright © 2018 Rydeen North America Inc. All Rights Reserved. RYDEEN ® is a registered trademark of Rydeen North America Inc. These materials are protected by copyright law and international treaties. Any unauthorized use, reproduction or distribution of these materials, or any portion herein, will result in severe civil and criminal penalties and fines.
