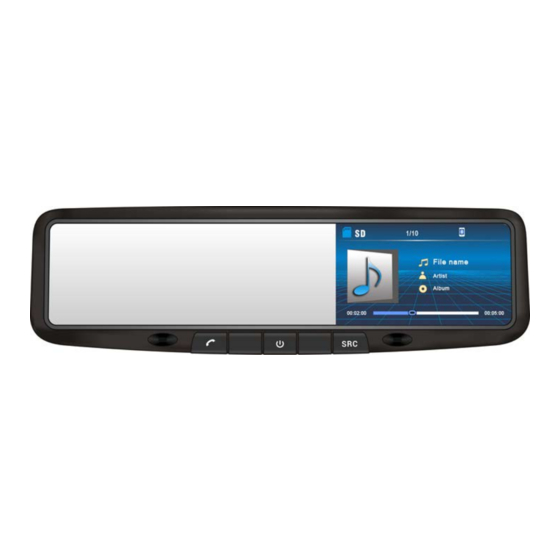

Rydeen MD4BT Owner's Manual

Digital input mirror replacement system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
MD4BT
Digital Input Mirror Replacement System
v1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD4BT and is the answer not in the manual?

Questions and answers

Related Manuals for Rydeen MD4BT

Summary of Contents for Rydeen MD4BT

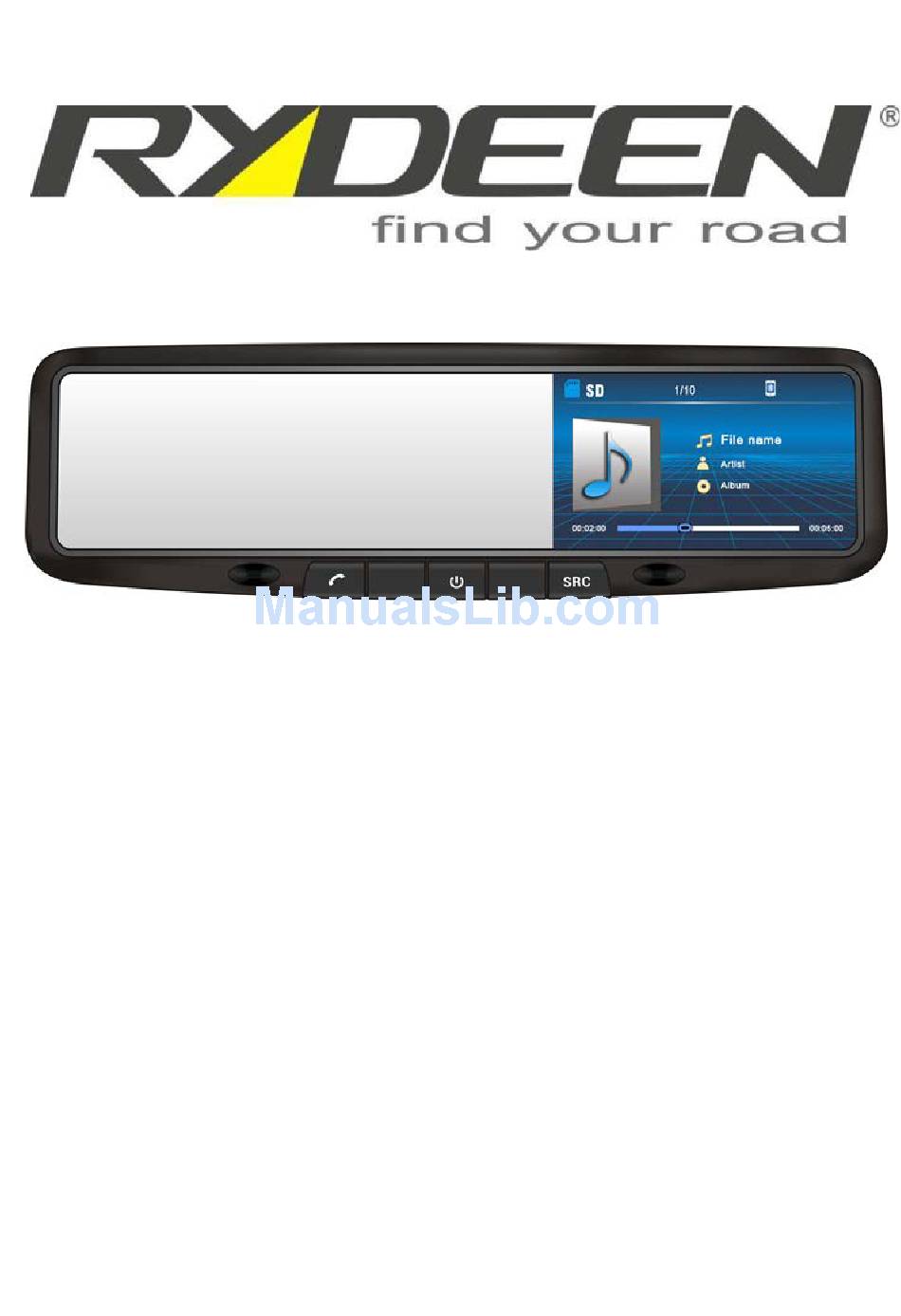

  • Page 1 Owner’s Manual MD4BT Digital Input Mirror Replacement System v1.1...

  • Page 3: Table Of Contents

    Contents Contents 1. Welcome Statement & Warnings 2. What’s in the Box 3. Product Overview and Features 4. Installation 5. Rydeen MD4BT Configurations Settings Operations............15 Mi-Link Operations............16 Bluetooth Operations.............16 Bluetooth Phone Call history..........17 Bluetooth Phone Call............17 Voice Command Activation..........18 Bluetooth Audio..............18 SD Operations..............18...

  • Page 4: Welcome Statement & Warnings

     SEVERE INJURY RISK -DO NOT mount your MD4BT on the surface of, or in the deployment field of your vehicle’s driver and passenger airbag units.
  • Page 5 Keep the MD4BT unit out of reach of small children. Removable parts • (Micro SD memory card) can be a choking hazard. The MD4BT unit IS NOT WATERPROOF. Avoid exposing it to rain or other forms of • excessive moisture. Water damage is not covered under the warranty.

  • Page 6: What's In The Box

    What’s in the Box 2. What’s in the Box Your MD4BT system comes complete with everything you need to get set up and get going. Please take a moment to review the contents of your system.

  • Page 7: Product Overview And Features

    Product Overview and Features 3. Product Overview and MD4BT...
  • Page 8 Product Overview and Features Operation Spread Sheet Front Description Mirror Wide Angle Mirror (Transparent for Display) ♦Built in Microphone for Microphone IR Sensor Bluetooth♦IR Sensor for Wireless Remote ♦Short Press (while incoming call):Receive Phone Call♦Short Press (while Mi-Link mode):Select Audio input on HDMI Source&...
  • Page 9 Product Overview and Features Wiring Diagram Illustrations:...
  • Page 10 Product Overview and Features Wiring Diagram Descriptions: BACK / CABLE Description Mi-Link HDMI Connector Digital Audio, Video Input Adaptor Green Reverse Trigger Pink Parking Break Trigger Yellow (Battery) 12V+ Constant power supply Red (ACC) 12v+ ACC Controlled Power Supply Black (GND) - Chassis Ground Backup Camera Input Video Input for Backup Camera...
  • Page 11 Product Overview and Features Remote Control Illustration： Key Number Key Image Description Operation Function Long Press Power Off ① Power Power Power On Screen On / Off End Phone call Reject ① ② ③ ④ Symbol Short Press Incoming Call Short Press Change Source Exit out of the Settings Menu...
  • Page 12 With easy connection to your Smartphone via MHL cable (Rydeen P/N MHL01 for Android phones), MD4BT mirrors the phone screen to the screen on MD4BT. You can also use a HDMI adaptor together with Lightening to USB cable from Apple to...
  • Page 13 Default(standards): Contrast 28/ Brightness 38/ Color 15 • Display Auto Dimmer Function The TFT display of MD4BT has an auto-dimming function which is designed to adjust the brightness of the screen automatically with a photo sensor that senses day & night, which could efficiently protect the LCD as well as your eyes.

  • Page 14: Installation

    Dropping your MD4 BT unit or subjecting it to excessive shock and vibrations may cause it to malfunction and void warranty. • The MD4BT is not Waterproof. Please avoid exposing it to rain or excessive moisture. Water damage is not covered under the warranty.
  • Page 15 Most vehicles have the mirror mounted directly onto the glass; therefore improper tools or techniques used in the removal of existing mirror or installation of MD4BT could result in a damaged or broken windshield. Rydeen is not responsible for damage to the windshield caused by installation.
  • Page 16 Installation 4) Route the mirror cable along the headliner and down the A pillar, and make power, ground and accessory connections. Yellow- Constant 12V+ source Red- Ignition controlled ACC 12V+ source. Black- (-) Ground (Connecting to car chassis works the best) 5) Solder or use T-taps on pre-tested and verified wires.

  • Page 17: Rydeen Md4Bt Configurations

    To turn On/Off the display screen auto-dimming function. ● Speaker Out (Internal Speaker/Audio Line Out Selection) To turn On/Off Audio Line Out speaker (you can use either MD4BT internal speaker or Line out external speakers). ● Setup parameters by buttons on the unit ①...

  • Page 18: Mi-Link Operations

    2. Press the SRC button on unit(or on remote control) to place device in Bluetooth mode. 3. Select ”RYDEEN MD4BT” on your phone, and it will ask you to enter the pairing code used by the mirror unit. (The default code is 0000) Once the code is entered,...

  • Page 19: Bluetooth Phone Call History

    Rydeen MD4BT Configurations 4. Once the pairing process is successful, the unit will remember your device info and will connect to your device automatically. Note: If your phone does not locate the mirror unit, repeat the pairing procedure, ensuring that you are within acceptable range and completing the process within the 60-second period.

  • Page 20: Voice Command Activation

    To remove the card, you should first select another source, in order to avoid ● damaging the card, press the card slightly, and take off the card after it pops out. The unit can remember the last time playback status. ● The MD4BT can support up to32G Micro SD Card capacity. ●...

  • Page 21: Music Playback

    Rydeen MD4BT Configurations Wireless Remote Controller Music Playback • The screen displays up to 5 songs on each interface. • Use & & on remote to select and confirm a song to play. ● Insert a Micro SD Card, the unit will start to play the first file on your SD Card.

  • Page 22: Technical Support Contact Informatio

    2. Any products distributed outside of the USA by Rydeen North America Inc. (Rydeen) or which is not purchased in the USA or Canada unless the product is purchased through the USA Military Exchange Service. 3. Any product(s) which are purchased from an unauthorized retailer (in store or online).

  • Page 23: To Obtain Warranty Servic

    Standard time and obtain a Return Authorization Number (“RA”) Number. 2. Please pay for any shipping charge to Rydeen Customer Service Department. Rydeen will pay the return shipping charge, if the repair or service was performed during the warranty period. Rydeen will ship freight collect (recipient is responsible for shipping charge) if Rydeen determine the service was performed outside of warranty period or exclusions described above.
  • Page 24 2701 Plaza Del Amo, Suite 705, Torrance, California 90503 USA Phone: 1-877-777-8811 Fax: 1-310-943-3778 Copyright © 2013 Rydeen North America Inc. All Rights Reserved. RYDEEN ® is a registered trademark of Rydeen North America Inc. This material is protected by copyright law and international treaties. Any unauthorized use, reproduction or distribution of these materials, or any portion herein, will result in severe civil and criminal penalties and fines.
