Rydeen 360 VIEW Quick Reference Manual

Quick Reference Guide
Included Items
MicroSD Slot
GPS Unit(A)
Velcro Straps Pre-Installed

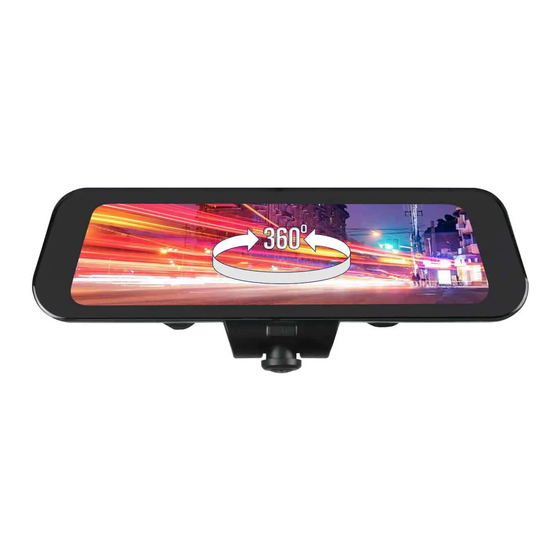

360 VIEW Main Unit
on the Mirror
Getting Started
1.Mount the 360 VIEW onto the mirror
using provided Velcro straps
Paste the adhesive provided in the position as
shown in the picture below.
Dot Dot
surface surface
up up
Touchscreen Operation
3.Main User interface
Record Photo
4.Settings
· ·
Note:
To enter Settings, you must stop recording.
·
When selecting "PiP Off" option, Reverse mode is disabled.
When selecting "PiP ON" option, double-click on the image in the lower right corner to display the backup camera in
full screen mode. Slide the screen up or down to adjust the viewing angle of the rear camera. Double-tap the touch
·
screen to exit full-screen mode and return back to the main screen.
These settings (Rear Cam Image, PiP On, PiP Off) only apply when using the optional CM-AHD1 backup camera.
Cigarette Lighter Mirror Cleaning Pry Tool(C)
Power Cable(B) Cloth(C)
Extension Y-cable(E)
Mounting
MicroSD
Adhesive(D) Screw Driver(F)
Inserted in Slot
2.Route GPS antenna and Plug power
adaptor into cigarette lighter
*Reverse Trigger: Connect only if using the
optional CM-AHD1 backup camera.
Settings
Lock Modes
5.Modes
360° Mode Wide Mode
360° Mode
Wide Mode
·
Note:
In wide mode, the front camera should be facing forward to give you a super wide viewing angle. Viewing angle
·
adjustment is not available within this mode.
·
Dash camera defaults back to original view setting (Cigarette Lighter Power Cable).
Dash camera will memorize last view setting when using optional (PWH-037) power cable.
Power Button Operation
6.Short press to (turn On/Off) the LCD Monitor. Long press to Power On/Off.
Note: For vehicles in which the cigarette lighter retains power when the key is Off. Please refer to Pg.23 of the Owner's
Manual.
Technical Support Contact Info
7.For any questions about 360 VIEW, please contact your retailer or RYDEEN Technical
Support:
·
· · Phone: 1-877-777-8811 (within USA only) or 1-310-787-7880
Email: tech1@rydeenmobile.com
Web: https://rydeenmobile.com/contact-support/
*For more detail instructions, please visit our website at
Split Mode Tri-split Mode
Split Mode
Tri-split Mode
www.rydeenmobile.com/manual-catalog-downloads/
