Summary of Contents for Rydeen rdv360II

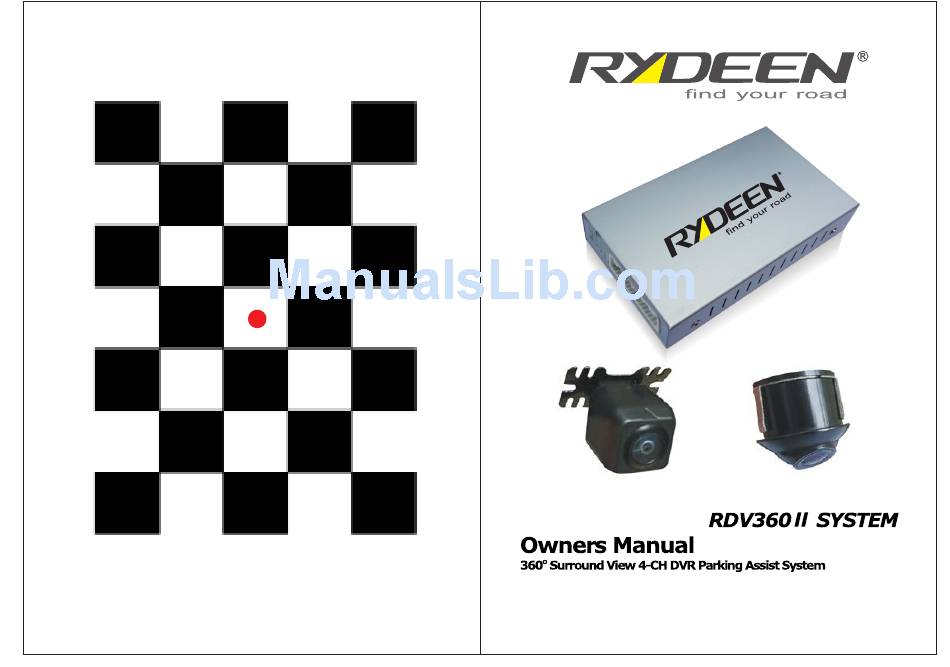

- Page 1 V1.0...
-
Page 2: Wire Harness Connections
2.Wire Harness Connections Video output & camera input: A.USB port; B.Blue Cable: connect to DVD or monitor trigger DAMAGE FROM IMPROPER INSTALLATION WILL VOID THE WARRANTY. C.Yellow Port: video output to the DVD or monitor D:3pin connector:Connect to IR remote Blue wire: monitor trigger controller receiver extend cable E:Black Port: connect to the front view camera... -
Page 3: Preparation Before Installation
4.Preparation Before Installation 2.Prepare 4 sets of black and white checkered mats, Confirm/ 1.25ft measuring tape. Infrared the sizes are 1600mmX1200mm. play/ Pause transmitter Bird View Turn On and Off Return Direction / Select camera view Data Save Adjustment Data increase Data decrease /Rewind /Fast Forward... - Page 4 6.How to locate the left and right turn signals 7.Calibration 1.Location: Most connections can be found near the steering column or kick panel of the driver seat. 1.Put the measuring tapes on each side of the vehicle 1.1 It should form a box after placing each measuring tape on each side. (See picture 1) 1.2 Adjust camera's angle and tapes in a symmetrical position, press remote control"...
-
Page 5: Calibration Process
4.Calibration Process Adjust camera view angle After completing the previous steps, go to the main menu. 3.1. Front and Rear camera view 3.1.1.The vehicle should show on the bottom of the screen. The location of the camera should be no 4.2 Input the password: 654321 4.1 Select "CALIBRATION"... - Page 6 8.Main menu 4 advanced setup 140mmX105mm Adjustment card Press “OK” into main menu settings DVR Set: File play/delete/lock/driving record settings 140mm Disp Set: System turn on/delay settings Calibration: Calibration settings Lens Adj.: Single camera calibration: after completing the calibration and the bird's eye view is Sys.Setting: Upgrade/backup/restore the backup/display setup/ not perfect, go to “Lens Adj.”...
- Page 7 10.Display Set 3.File playback 11.8 Voltage Four Picture Front View Picture Hazard ON\OFF\15second\1min: : Display ON, display will show on the screen when the user double taps the hazard button. OFF: OFF: Hazard function is disabled. 15second\1min: Display will only show for certain amount of time. Startup: ON\OFF\15second\1min : Display on DVD or monitor when ACC ON,and recording is on at the same time.
- Page 8 11.System set Select main menu “system setup”, press “ ” and input the password “654321”. ：Used to update the software( file name:sys.bif). download Upgrade the file from the computer using the USB flash drive.Then put the USB into the Bird view USB port, and press "Upgrade". The system will update and the RDV360 II must NOT turn OFF during the update process.
