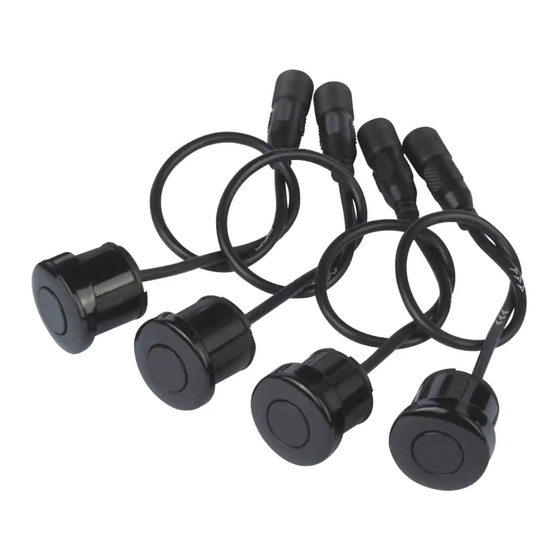

Rydeen PSR4000D Owner's Manual

Rydeen PSR4000D Owner's Manual

Digital parking sensor systems

Advertisement

Quick Links

Owner's Manual
Digital Parking Sensor Systems
V1.0
PSR4000D
PSK4
PSK4 Flush
SPK003
LED003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSR4000D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rydeen PSR4000D

  • Page 1 PSR4000D PSK4 PSK4 Flush SPK003 LED003 Owner’s Manual Digital Parking Sensor Systems V1.0...
  • Page 2: Kit Contents

     The Parking Sensor Systems are used for the rear placement only, these are not recommended for front mounted bumpers.  The use of Rydeen Parking Sensor system should never replace normal operational and safety precautions needed for reversing a vehicle.
  • Page 3: Technical Information

    2. Technical Information 1) Basic Specification Specifications Display Direction indicator (LED display is included) Detecting distance 0 - 8.0 feet for flat surfaces; 0 - 6.0 feet for human or uneven surfaces Universal sensors. Rear sensors instantly turn on with reverse gear Sensors selection;...
  • Page 4 2. Painting the Sensors 1) Preparation For PSR4000D/PSK4 For PSK4 Flush Remove the plastic rings (silicon Make sure the silicon rubber rings are rubber is not removable, not installed around the sensor head do not attempt to remove) 2) Sand the surface of sensors with a fine sandpaper (1000 or 1200 grit) for better paint adhesion.
  • Page 5: Systems Overview

    3. Systems Overview For Passenger Cars Speaker/LED Display - 4 -...
  • Page 6: Installation

    For Trucks There are 8 LED Display Options Place the speaker and control box inside a vehicle. Avoid from water damages. The LED built-in speaker/speaker sound will indicate the distance between the sensors and the object. Shorter pitch tone sound indicates getting closer to objects.
  • Page 7 4)Three installation options: a. 4 digital parking sensors for rear. (PSR4000D) b. 2 digital parking sensors for front, 2 for rear. (PSR4000D) c. 4 digital parking sensors for rear, 4 for front. (PSR4000D and PSK4 / PSK4 Flush) - 6 -...
  • Page 8 (A) first to prevent from paint to chip, then drill the hole in clockwise direction (B). PSR4000D/PSK4 sensors MUST be installed from outside of the bumper. Please check the direction dot (WHITE) and make sure of the correct orientation.
  • Page 9 6) It is important not to drill the hole larger than the measurement indicated. MUST use the hole saw provided. 6) Route the sensor wires through the bumper to a suitable location in the vehicle trunk or rear hatch. Connect the main control unit RED wire to a positive charge wire of the vehicle back-up light.
  • Page 10: Technical Support Contact Info

    6. Technical Support Contact Info If you have other questions about the RYDEEN Parking Sensor Products, please contact your retailer or Technical Support: • Telephone: 1-877-777-8811 (within USA only) • Email: tech1@rydeenmobile.com • Web Address: www.rydeenmobile.com  Tech Forum: http://rydeen.forumotion.com/...
  • Page 11: One Year Limited Warranty

    (Parking Sensor Systems) only to the original purchaser as described by the following: Warranty Period Rydeen warrants this product for a period of one (1) year from the original purchase date. Warranty Coverage This warranty covers all defects in material and workmanship except as specified below.
