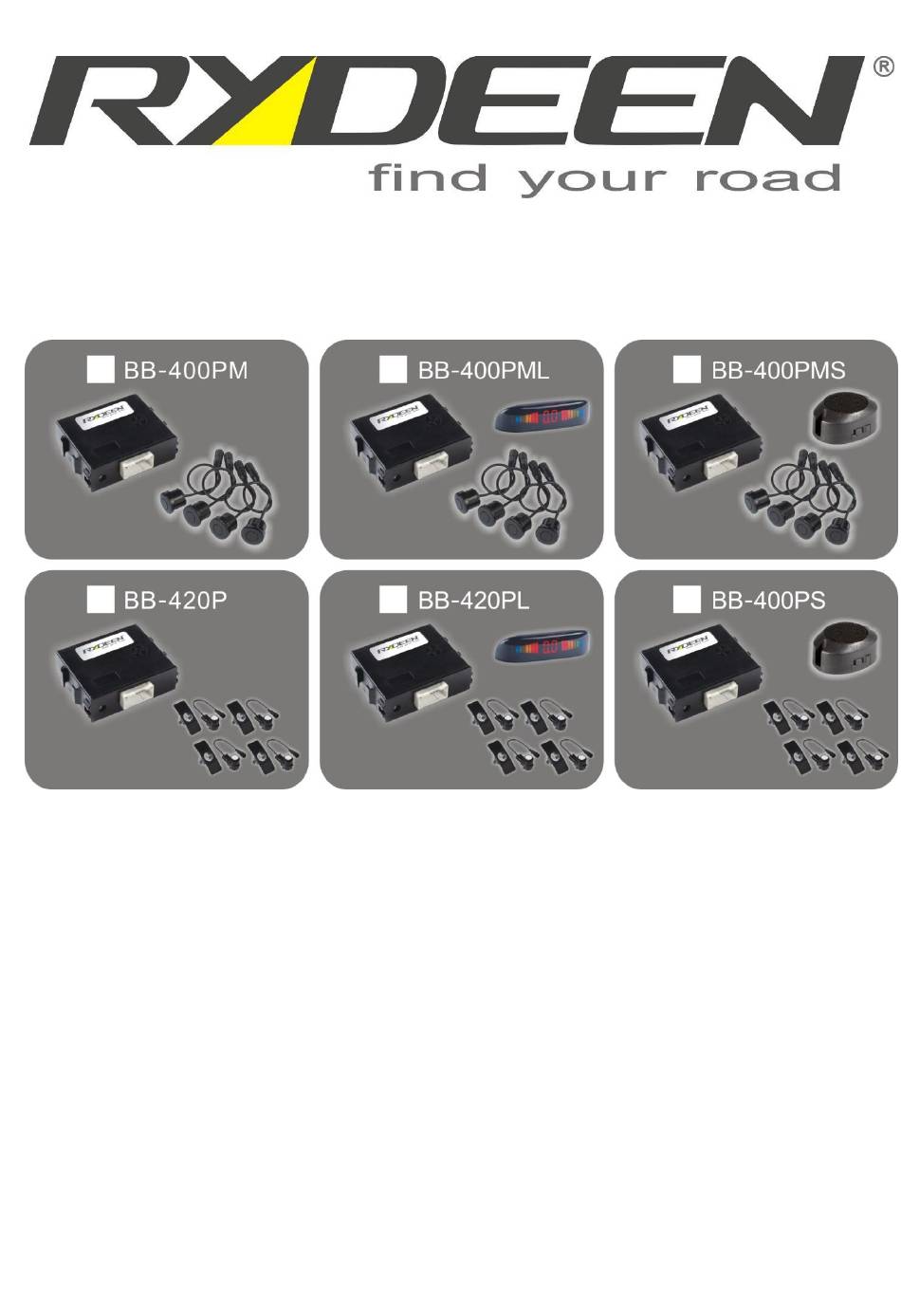

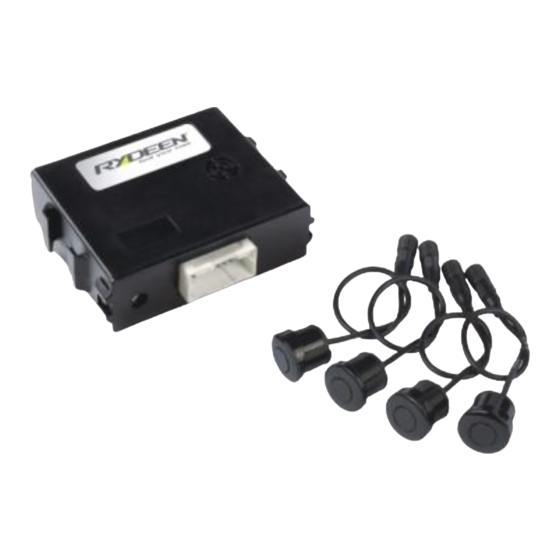

- Page 1 BB-400PM BB-400PML BB-400PMS BB-420P BB-420PL BB-420PS Owner’s Manual Ultrasonic Parking Sensor Systems v1.1...
- Page 2 The Parking Sensor Systems are used for the rear placement only, these are not recommended for front mounted bumpers. The use of Rydeen Parking Sensor system should never replace normal operational and safety precautions needed for reversing a vehicle.
- Page 3 4) Spray and paint 3) Place the sensors inside the paint mask box (provided). Apply a thin coat of paint. Let it dry then paint again for better paint coating coverage. For BB-420P/BB-420PL/BB-420PS Paint the plastic rings together with the sensor heads.
- Page 4 For a Truck 4. Installation 1) The proper placement of the sensors is important both for appearance and for the proper operation of the unit. Sensors should be mounted at 90° angles to the ground. It is important to avoid obstructions caused by bumper shape. 2) Measure the height on a bumper for proper installation locations.
- Page 5 Bumper removal is required for this installation. Top view BB-400PM sensors MUST be installed from outside of the bumper. Please check the direction dot (WHITE) and make sure of the correct orientation. Check for the direction 5) It is important not to drill the hole larger than the measurement indicated.
- Page 6 Important! Do not use the negative charge wire of the vehicle back-up light for ground. Some vehicles have a “check bulb” feature that makes that wire not a true ground. The system may not detect a small and round pole (such as a fire hydrant or light pole, etc).
- Page 7 2-feet or 3-feet. Make sure to TEST before the usage (using at least 3X3-feet size cardboard) in order to avoid accidents. 6. Technical Support Contact Info If you have other questions about the RYDEEN Parking Sensor Products, please contact your retailer or Technical Support: •...
- Page 8 (Parking Sensor Systems) only to the original purchaser as described by the following: Warranty Period Rydeen warrants this product for a period of one (1) year from the original purchase date. Warranty Coverage This warranty covers all defects in material and workmanship except as specified below.
