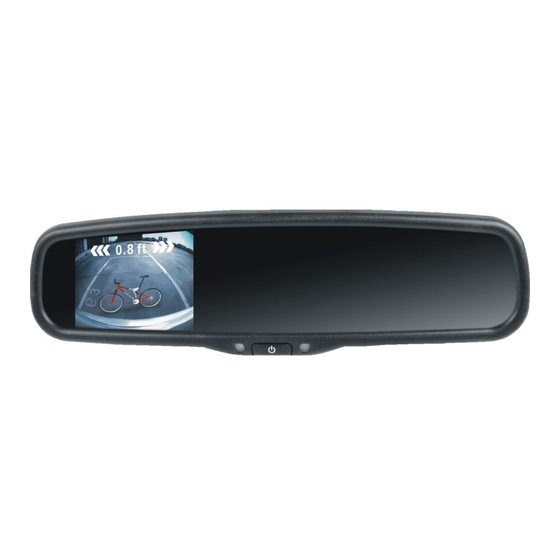

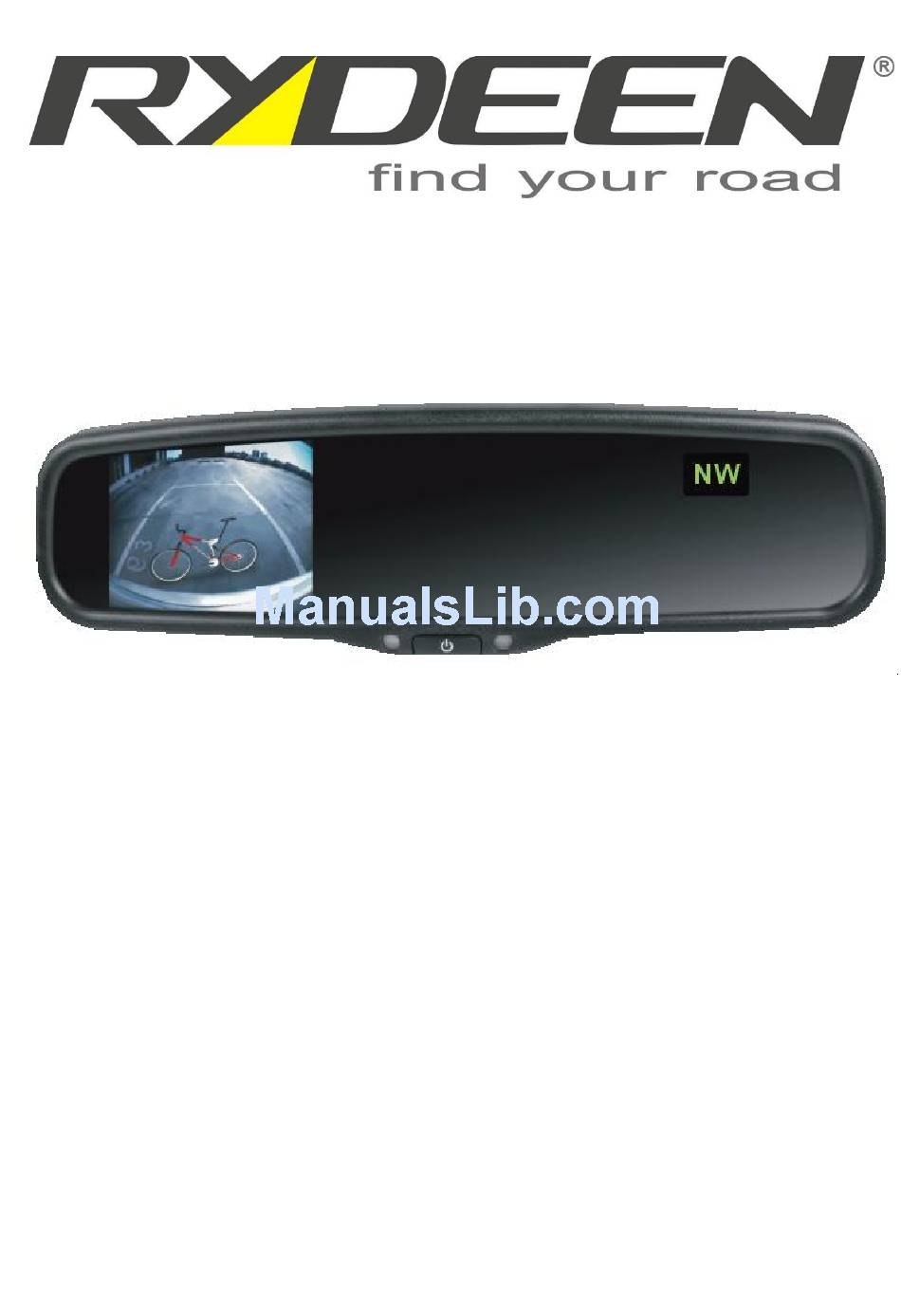

- Page 1 Owner’s Manual MV311T Replacement Mirror Monitor System with Temperature & Compass Display v1.0...
- Page 2 2. Installation 1) Remove existing mirror from vehicle. 2) If existing mirror tab is D-tab style mount MV311T mirror to windshield and go to step 3. If original mirror is not D-tab style or headliner mount go to step 2a) Locate the supplied D-tab and the rearview mirror adhesive and install on windshield as per adhesive instructions.
- Page 3 3) Remove the knee bolster on the driver side as well as the A-pillar cover (it may also be necessary to remove the sun visor and maybe even the overhead console in order to freely route the power harness from the knee bolster to the mirror connector).
- Page 4 3. Setup 1) Turn Ignition ON 2) Parking lines on mirror will turn ON 3) If AUX video 1 source was connected (turn video source ON then press PWR button on mirror and the image should appear on screen) 4) Shift vehicle into reverse, the camera image will appear on the screen 5) Shift vehicle out of reverse and the camera image will disappear and go back to its previous stage 6) Press the key...
- Page 5 Manual Compass Calibration “H-” Press once to adjust Compass(﹣25° ～﹢25° ) Find out the magnetic declination of the certain area. Automatic Compass Calibration “A-“ Hold for 3 seconds to save the previous setting then enters the Automatic Compass Calibration “A-“. The mirror will start counting from 0-200 Starting from 20 seconds, put the vehicle in drive and drive the vehicle less than 5MPH going counter clockwise.
- Page 6 A: Connect the Green jumper at the camera harness to turn the parking line feature OFF. 6. Technical Support Contact Info If you have other questions about the RYDEEN MV311T, please contact your retailer or Technical Support: Telephone: 1-877-777-8811 (within USA only) ...
- Page 7 (MV311T) only to the original purchaser as described by the following: Warranty Period Rydeen warrants this product for a period of one (1) year from the original purchase date. Warranty Coverage This warranty covers all defects in material and workmanship except as specified below.
- Page 8 2701 Plaza Del Amo, Suite 705, Torrance, California 90503 USA Phone: 1-877-777-8811 Fax: 1-310-943-3778 Copyright © 2012 Rydeen North America Inc. All Rights Reserved. These materials are protected by copyright law and international treaties. Any unauthorized use, reproduction or distribution of these materials, or any portion...
