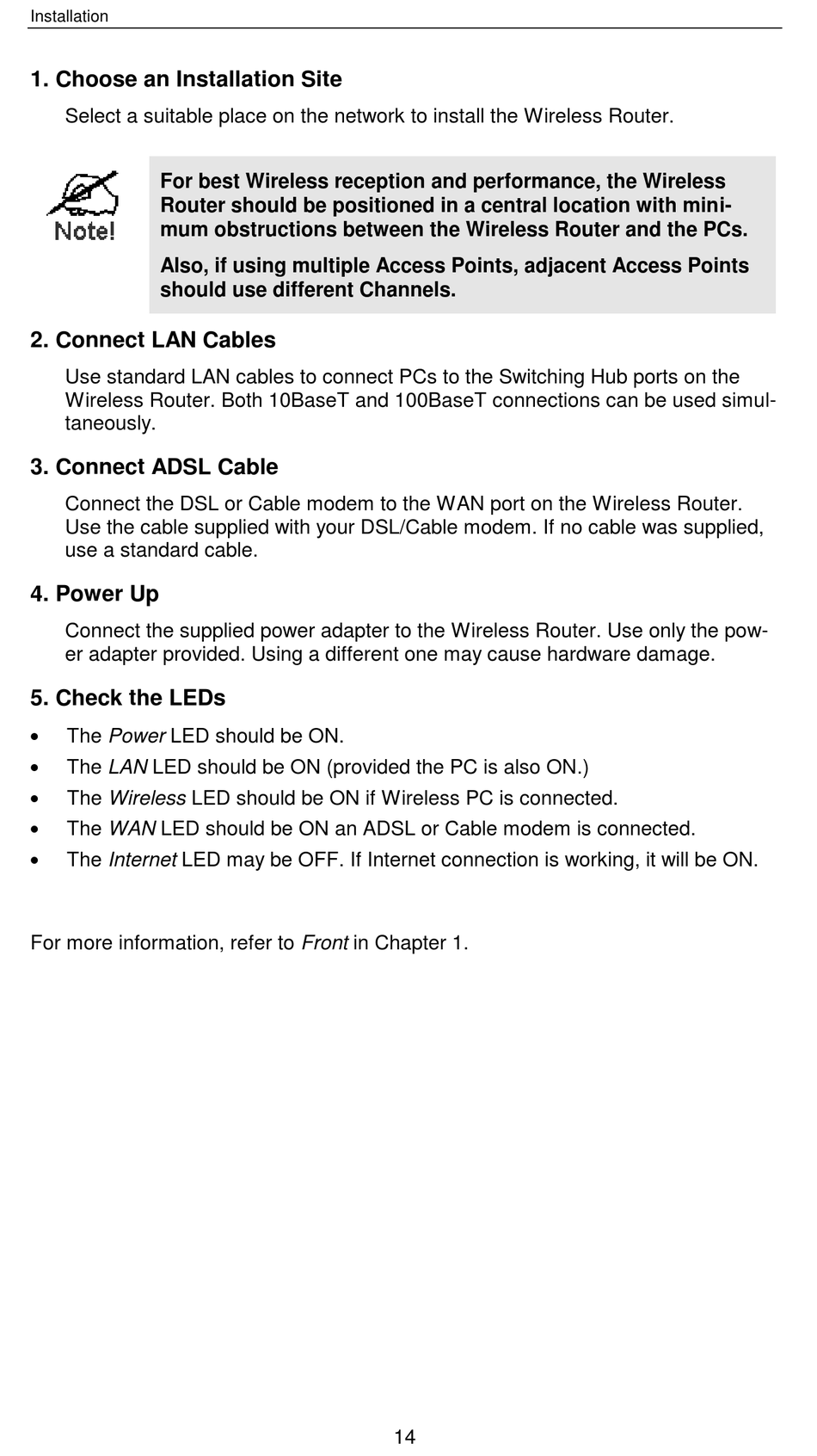

Installation
1. Choose an Installation Site
Select a suitable place on the network to install the Wireless Router.
For best Wireless reception and performance, the Wireless
Router should be positioned in a central location with mini-
mum obstructions between the Wireless Router and the PCs.
Also, if using multiple Access Points, adjacent Access Points
should use different Channels.
2. Connect LAN Cables
Use standard LAN cables to connect PCs to the Switching Hub ports on the
Wireless Router. Both 10BaseT and 100BaseT connections can be used simul-
taneously.
3. Connect ADSL Cable
Connect the DSL or Cable modem to the WAN port on the Wireless Router.
Use the cable supplied with your DSL/Cable modem. If no cable was supplied,
use a standard cable.
4. Power Up
Connect the supplied power adapter to the Wireless Router. Use only the pow-
er adapter provided. Using a different one may cause hardware damage.
5. Check the LEDs

The Power LED should be ON.

The LAN LED should be ON (provided the PC is also ON.)

The Wireless LED should be ON if Wireless PC is connected.

The WAN LED should be ON an ADSL or Cable modem is connected.

The Internet LED may be OFF. If Internet connection is working, it will be ON.
For more information, refer to Front in Chapter 1.
