SmallRig MagicFIZ User Manual

Wireless follow focus system
Hide thumbs
Table of Contents

Advertisement

Quick Links

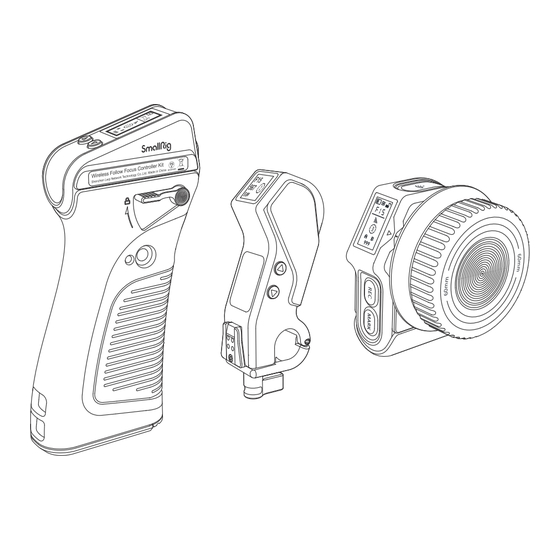

MagicFIZ Wireless Follow Focus System
- User Manual -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MagicFIZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SmallRig MagicFIZ

Summary of Contents for SmallRig MagicFIZ

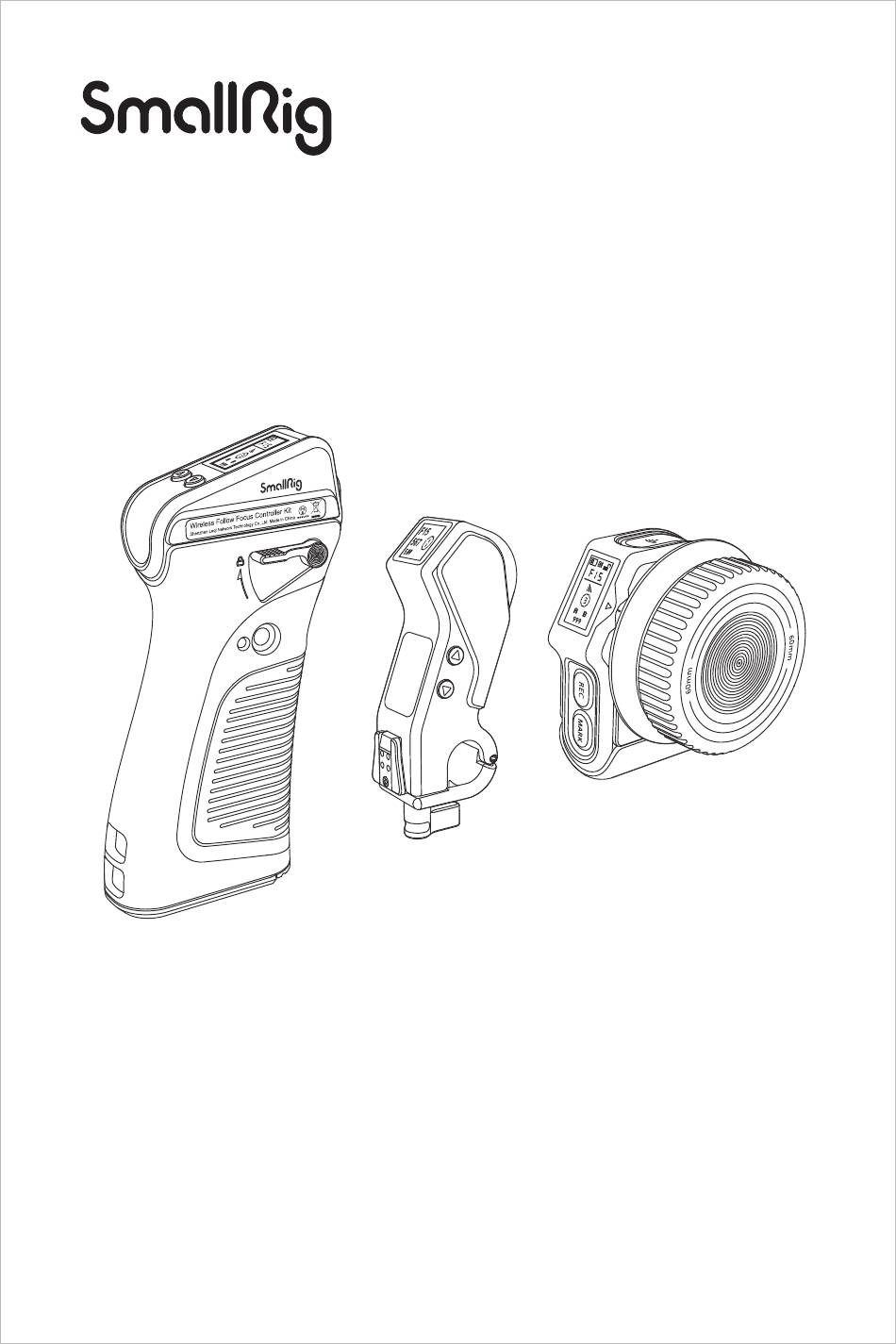

  • Page 1 MagicFIZ Wireless Follow Focus System - User Manual -...

  • Page 2: Intended Use

    MagicFIZ Wireless Follow Focus Basic Kit MagicFIZ Wireless Follow Focus Handgrip Kit ID: 4091 Follow Focus Marking Disk (Wooden) ID: 3266 USB-C to D-Tap Cable ID: 3918 ID: 3268 MagicFIZ Wireless Follow Focus Two Motor Kit USB-C to DC Cable...

  • Page 3: Product Function Description

    In the Box ID: 3781 ID: 3782 ID: 3918 × 1 Electronic Controller Module × 1 Wireless Handwheel Controller × 1 Wireless Handwheel Controller × 1 Wireless Handgrip Wireless Receiver Motor × 1 Wireless Receiver Motor × 1 Electronic Controller Module ×...
  • Page 4 Indicator: Six color display, including red - green - blue - yellow - pink - white. USB-C Port: Charging and wired communication port. Contact Port: Charging and communication port. Extension Port: 1/4"-20 threaded hole. Marking Disk: Replaceable. 2.Wireless Handgrip USB-C Port Indicator Safety Lock Extension Port...
  • Page 5 4. Wireless Receiver Motor M0.8 Gear OLED Screen Up Button REC Port Down Button Port φ15mm Rod Opening Battery Plate Port Up / Down Button: 1. Channel Adjustment; 2. Motor Number Adjustment. REC Port: Connect the camera REC port for wired control. Port: Power supply and communication Port.
  • Page 6 3. Installtion Guide for Wireless Handgrip 3.1 Combined Installation of Electronic Controller Module, Wireless Handwheel Controller, and Wireless Handgrip. Safety lock is in locking 3.2 The Wireless Handgrip is suitable for both left and right hands. Left hand holding Handgrip Adapter Right hand holding 3.3 Installation Guide for Shoulder Rig Adapter, VCT-14 Extension Arm, and ARRI Rosette...
  • Page 7 4.2 Use the standard USB-C to USB-C cable to connect the Wireless Handgrip for powering the Wireless Receiver Motor, achieving the cabled control. Wireless Receiver Motor Wired control and power Port indication supply of the Wireless Handgrip 4.3 Power the Wireless Receiver Motor through the Battery Plate. Powered by the Battery Plate Wired Control of the Compatible with NP-F batteries...

  • Page 8: Interface Instruction

    5.2 Directly connect the Wireless Handwheel Controller and Electronic Controller Module with the camera BLE to wirelessly control the REC recording. Sony Canon Nikon A7C, A7RⅢ, A7RIV, A7 IV, FX3, EOS 90D, EOS M6 Mark II A7SⅢ, A9, A9 II, RX100 Ⅶ, EOS M50, EOS R, EOS R5 DSC-RX100M7, A6100, EOS RP, G7X Mark III...

  • Page 9: Basic Operation

    Wireless Handwheel Wireless Controller Handgrip Control Bar Control Bar 000 999 Instruction for Wireless Handwheel Controller Interface (double controls) Basic Operation 1. ON / OFF Operation Press and hold the UP / DOWN button to Press and hold the REC button turn on the machine;...
  • Page 10 Wireless Handwheel Controller Single-Display Mode: Click SET " " to activate the motor number; click to adjust the number; press and hold SET " " to exit. [Note] The motor can be controlled only with same channel and motor number. Wireless Handwheel Controller Double-Display Mode: Click SET "...
  • Page 11 Method 1-2: Manual lens calibration with the Wireless Handwheel Controller The automatic lens calibration lasts for over 20s, or click MARK " " to switch to manual mode automatically, Click MARK " " to confirm starting point and ending point. Manually Finished Lens Starting...
  • Page 12 Click SET to complete the Wireless Handwheel Controller: Press and hold SET, Turn the knob (K1) calibration, so that "000" Select K1-CAL for calibration. Click SET to enter to the end point or "999" will be shown. SETTING SETTING SETTING K1-DIR K2-DIR SCREEN...

  • Page 13: Specifications

    7.2 Electronic Controller Module BLE Setting: SETTING SETTING SETTING SETTING K1-DIR K1-CAL Scan... Connect Press and hold Click REC button to Scanning connection Click simultaneously to enter / start BLE scanning is successful, and turn off BLE exit the menu, click camera confirms to turn pages, click REC matching...

  • Page 14: Fcc Compliance Statement

    Screen Size OLED 0.52” Peak Torque 0.5N.m Input Voltage 5V ~ 16.8V Wireless Receiver Maximum Transmission Distance ≤100m ( Ideal Conditions ) Motor Communication Frequency 2.4000～2.4835GHz Input Voltage of External Battery 7.4V ~ 8.2V Compatible Rods Standard Φ15mm Rod For more methods, please scan the code for details. QR code of the Wireless QR code of the Wireless Follow Focus System...
  • Page 15 ISED Statement English:This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 16: Guarantee Card

    (not caused by human abused), return shipping cost will be on SmallRig’s charge. 2. 1-Year Warranty: Within 1-year from the date of the package receipt, defective product which is not caused by human abused is eligible to get repair / replacement for free;...
