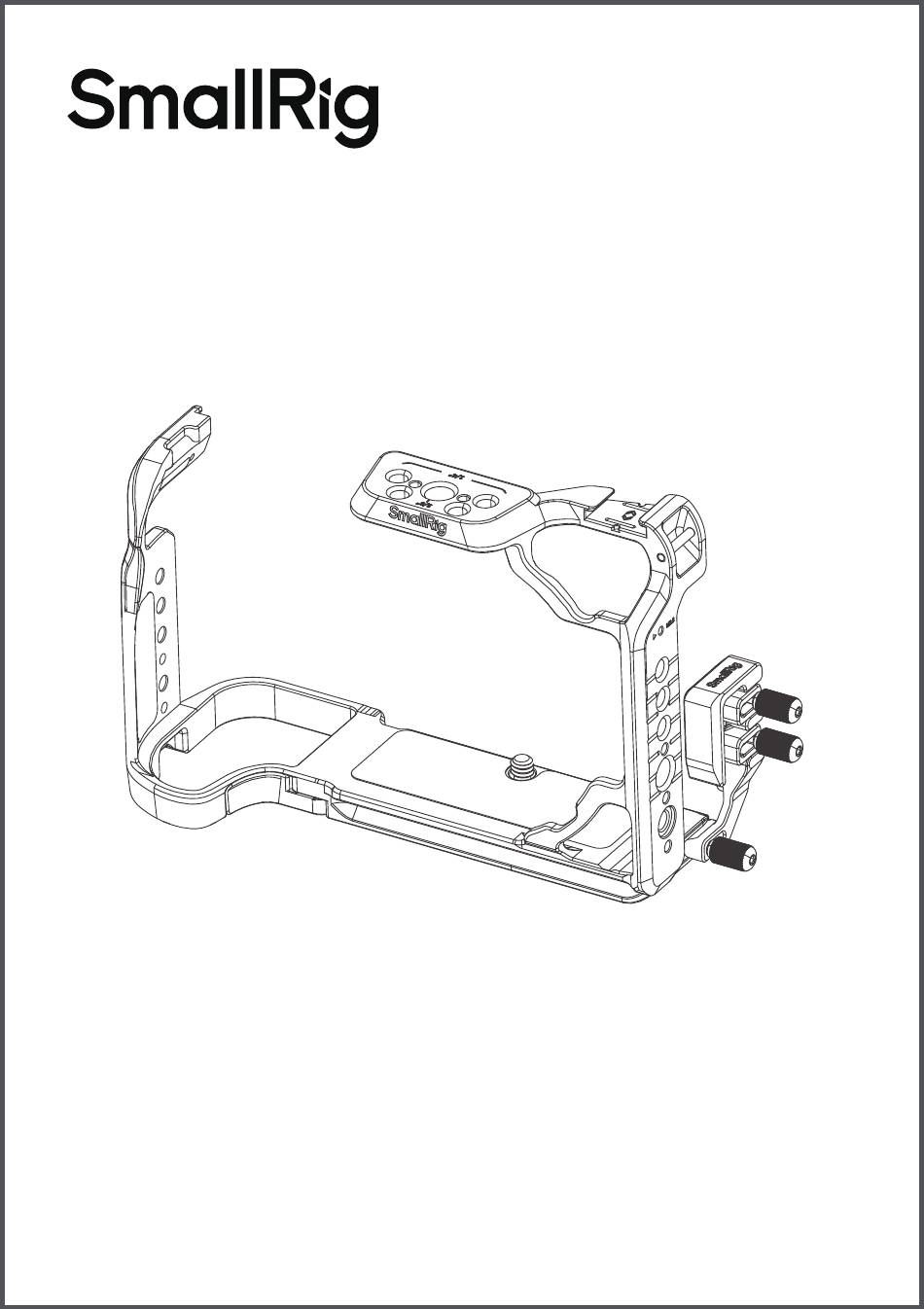

- Page 1 Cage Kit for FUJIFILM GFX100S II — 富士 GFX100S II 拓展框套件 — Operating Instruction / 操作指引...
- Page 2 Thank you for purchasing SmallRig's product. 感谢您购买 SmallRig 产品。 In the Box / 包装清单 Cage × 1 Operating Instruction × 1 拓展框 操作指引 × 1 HDMI & USB-C Cable Clamp Guarantee Card × 1 HDMI & USB-C 线夹 保修卡 Product Details / 产品介绍...
- Page 3 Cage Installation Instruction / 拓展框安装步骤 1. Remove the both sides split D-ring before installing the cage. 取下相机双侧肩带环。 * The package does not include the camera * 相机机身需另购 2. Put the camera into the cage from back to the front. 将相机从后往前放入相机拓展框。 * The package does not include the camera * 相机机身需另购...
- Page 4 Install the cage via tightening the 1/4"-20 screw and locating screw. 拧紧底部1/4"-20 螺丝，锁紧固定拓展框。 Remove the two M2.5 screws at both sides of the cage, then pass the M2.5 screws through the shoulder strap holes on both sides of the camera and tighten them onto the cage.
- Page 5 HDMI & USB-C Cable Clamp Installation Instruction HDMI & USB-C线夹安装步骤 1. Install the cable clamp to the cage by tightening the thumbscrew 通过一颗手拧螺丝，将线夹和拓展框锁紧固定。 * The package does not include the camera * 相机机身需另购 2. Loosen the thumbscrew, then insert the HDMI & USB-C cables, tighten the thumbscrew to secure the cable.
-
Page 6: Specifications
Specifications / 产品参数 Compatibility FUJIFILM GFX100S II / GFX100S / GFX50S II 适配性 富士GFX100S II / GFX100S / GFX50S II Product Dimensions 7.2 × 4.6 × 2.6in 产品尺寸 182.8 × 117.1 × 64.8mm Product Weight 7.6 ± 0.2oz 215.0 ± 5.0g 产品重量...
