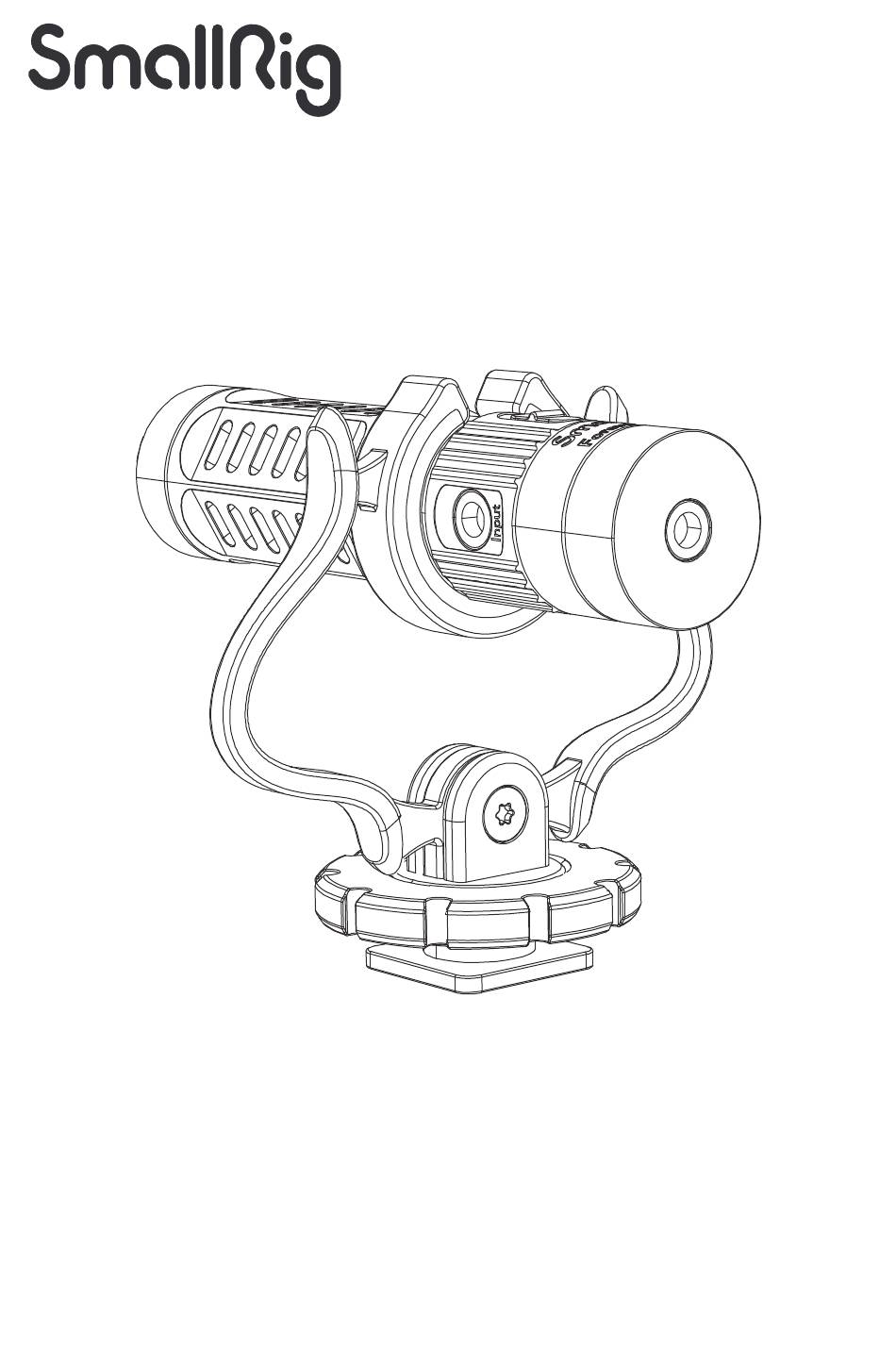

- Page 1 Forevala S20 On-Camera Microphone User Manual...
- Page 2 Equipped with a built-in cardioid microphone and designed with stereo recording mode, SmallRig Forevala S20 on-camera microphone was distinguished in recording extremely vivid presence sound! The feast of sound is right beyond. Hopefully you will be able to use this efficient...
- Page 3 3.5mm TRS output: Connect the recording device like a DSLR camera to S20 with the TRS camera cable via this jack. Or connect the smartphone to S20 with TRRS phone cable via this jack. For iPhone 7 or version above, it required the extra lightning to 3.5mm headphone jack adapter (not included).
- Page 4 2.Fix the shock mount onto the cold shoe mount on a DSLR camera or a camcorder, or the 1/4” screw thread of a tripod. 3.Putting a furry windscreen or a foam windscreen onto S20 can effectively eliminate wind noise based on recording scene needs.
- Page 5 4.Connect the 3.5mm output jack of S20 with the 3.5mm input jack of DSLR camera via the 3.5mm TRS cable. 5.For the professional stereo effects, please connect a extra microphone like the customized lavalier microphone to the S20 and toggling the mode switch button to “S”...
-
Page 6: Operation Tips
Operation tips A.When using a DSLR camera or a camcorder for recording, please link the S20 and the DSLR camera with the 3.5mm TRS cable. If it was going to install on the cold shoe adapter of a DSLR camera or a camcorder, please tighten the locking knob until the bottom of the shock mount was completely fixed to the devices. - Page 7 Q1: Is it compatible with different devices? A1: Yes. S20 is compatible with devices having 3.5mm microphone input jacks, such as DSLR camera / camcorder/ portable recorder / Windows or Mac OS PC / mobile phone / laptop.You can opt for 3.5mm TRS camera cable to connect DSLR camera / camcorder/- portable recorder / Windows or Mac PC.
-
Page 8: Specifications
Specifications Product Components On-Camera Mic Lavalier Mic Dimensions φ20 × 82mm 6.7ft Materials Aluminum alloy TPE + PC Polar Pattern Cardioid Cardioid Microphone Type Condenser Condenser Sensitivity -38dB ± 3dB -42 ± 3dB Frequency Range 50Hz ~ 20kHz 50Hz ~ 20kHz 70dB 65dB Input Jack... -
Page 9: Service / Warranty
5. Product damage caused by fires, floods, lightning and other force majeure factors. Warranty Mode: • For the products within the scope of warranty, SmallRig will repair or replace them on the basis of specific failures; the repaired/replaced products/parts are entitled to the remaining part of the original warranty period. - Page 10 Add: Rooms 103, 501 and 601, Building 5, Fenghe Industrial Park, Nos. 1301-50 Guanguang Road, Longhua District, Shenzhen, Guangdong, China. Consignor: Shenzhen LC Co., Ltd Add: Rooms 602, Building 5, Fenghe Industrial Park, No. 1301-50 Guanguang Road, Xinlan Community, Guanlan Street, Longhua District, Shenzhen, Guangdong, China. Made in China www.smallrig.com...
