SmallRig MagicFIZ User Manual page 12

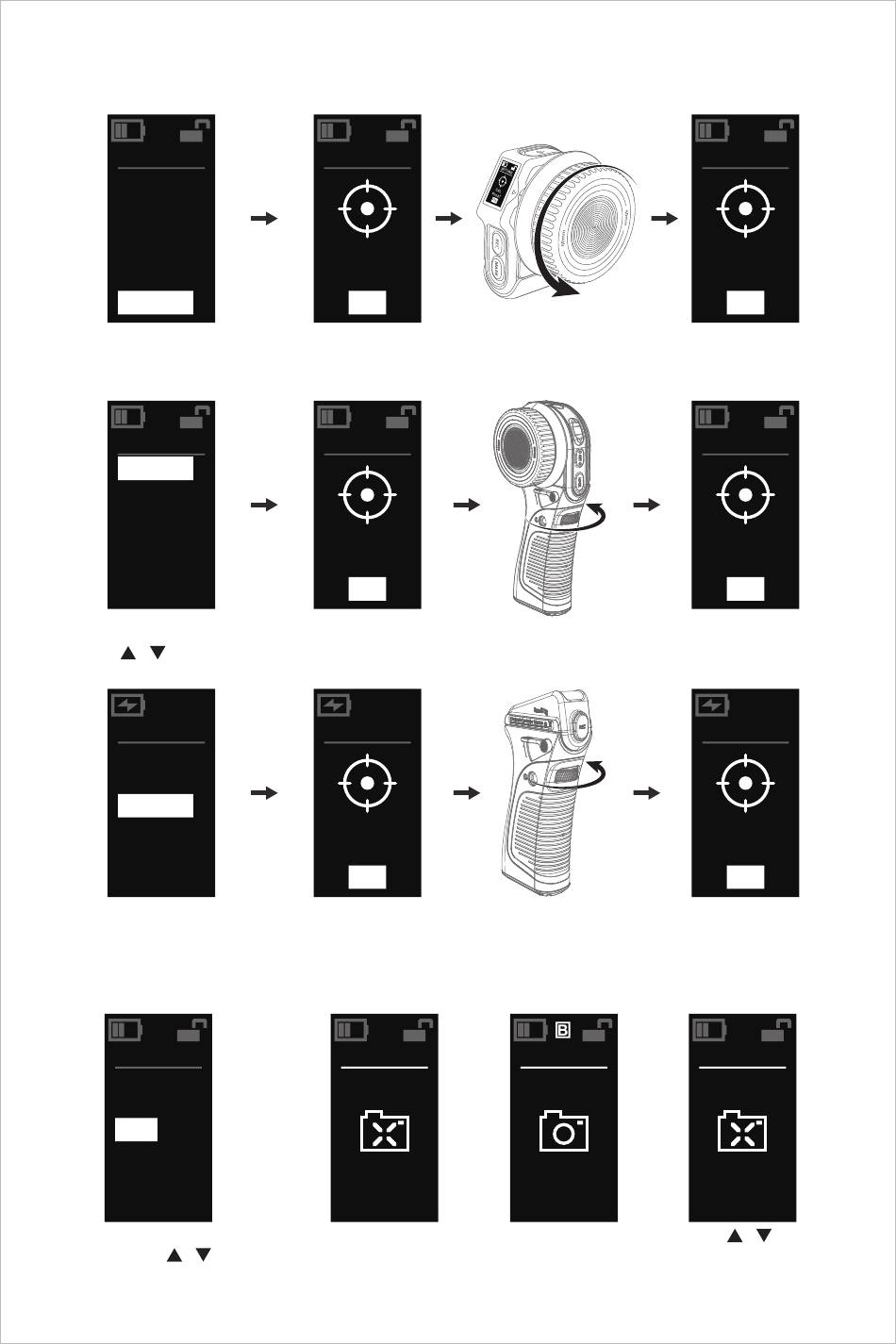

Wireless Handwheel Controller:
Press and hold SET,
Select K1-CAL for calibration.
SETTING
LED
K1-DIR
K2-DIR
BLE
SCREEN
K1-CAL
Wireless Handwheel Controller:
Press and hold SET,
Select K2-CAL for calibration.
SETTING
K2-CAL
VER
Electronic Controller Module: Press
and hold / simultaneously,
select K2-CAL for calibration.
SETTING
K2-DIR
BLE
K2-CAL
VER
7. BLE Connection
Camera Setting: BLE Setting → BLE Function → On Status → Click to Match.
7.1 Wireless Handwheel Controller BLE Setting:
SETTING
LED
K1-DIR
BLE
SCREEN
K1-CAL
VER
Press and hold SET to enter / exit
the menu, click / to turn
pages, click SET to enter options
Click SET to enter
SETTING
CAL
Knob 1
456
Click SET to enter
SETTING
CAL
Knob 2
636
Click REC to enter
SETTING
CAL
Knob 2
636
SETTING
Scan...
Click SET
to start BLE
scanning
Turn the knob (K1)
to the end point
Turn the knob (K2)
to the end point
Turn the knob (K2)
to the end point
SETTING
Connect
Scanning connection is
successful, and camera
confirms the matching
Click SET to complete the
calibration, so that "000"
or "999" will be shown.
SETTING
CAL
Finished
000
Click SET to complete the
calibration, so that "000"
or "999" will be shown.
SETTING
CAL
Finished
000
Click REC to complete the
calibration, so that "000"
or "999" will be shown.
SETTING
CAL
Finished
000
SETTING
OFF
Click /
to turn off BLE
