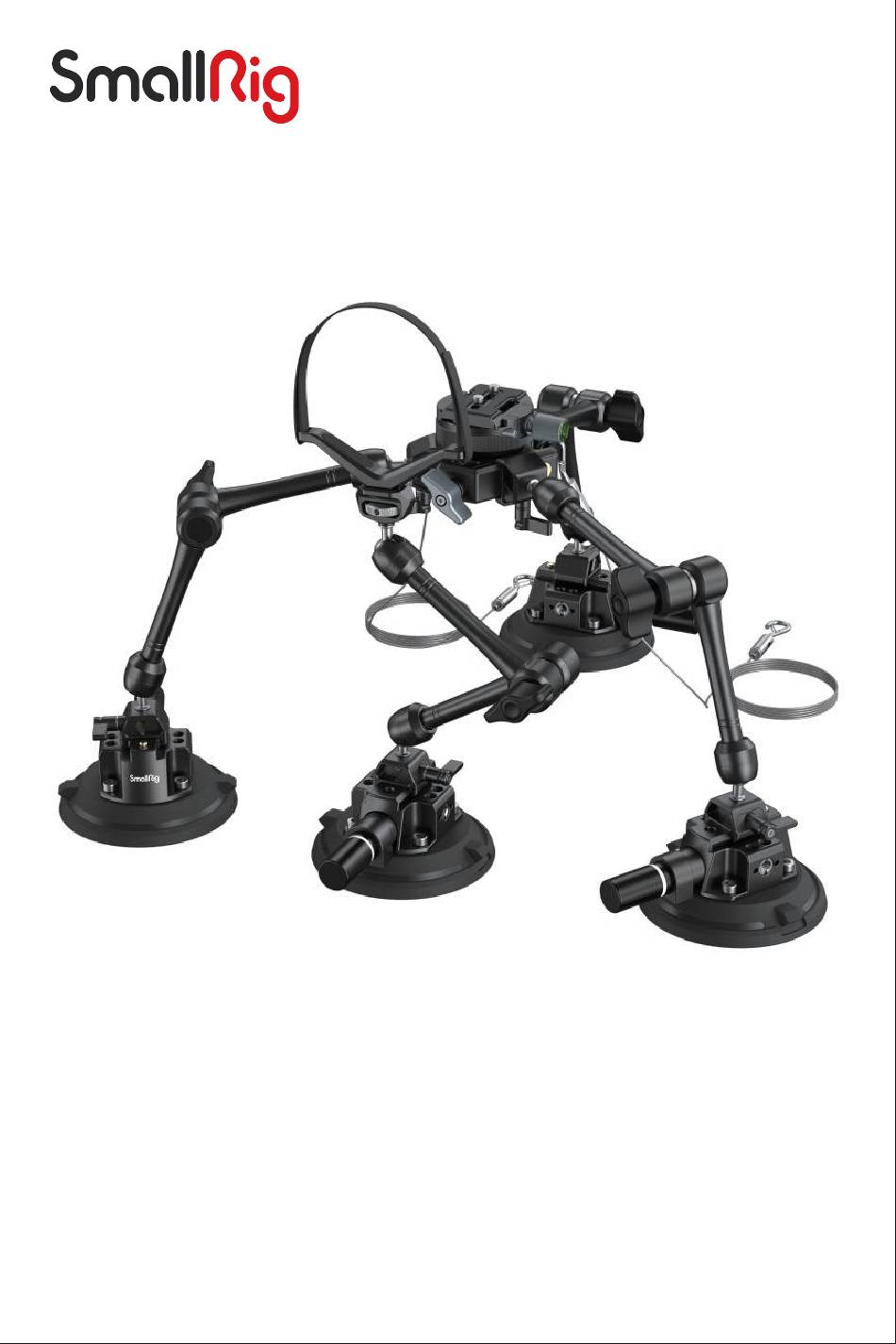

- Page 1 4-Arm Suction Cup Camera Mount Kit SC-15K User Manual...
-
Page 2: Intended Use
“Warnings” below and properly keep this User Manual for future reference. Foreword Thank you for purchasing SmallRig products. Warnings 1. Please read this User Manual carefully. 2. The 4-Arm Suction Cup Camera Mount Kit, when adhering on a still object, has a tested maximum horizontal suction of 120 kg and maximum vertical suction of 30 kg. - Page 3 Overview of the components. Take off the dust cover before use, and check the bottom of the suction cup to ensure it is clean, intact, and undamaged. Before use, clean the surface thoroughly and make sure that it is dry, level, free of debris, and firmly secured.
- Page 4 Press the suction cup with one hand and push the air pump inward with the other hand. When the white marking line on the air pump is only partially retracted, it indicates that the suction is incomplete. Please continue pressing the air pump until it is tightly locked in place.
- Page 5 The locking knob at the end of the magic arm’s NATO clamp is pullable. If there is any interference of the suction cup during the locking process, you can pull up the locking knob at the NATO clamp end and push it to an angle where there is no interference until it locks securely in place.
- Page 6 Install the Quick release plate onto the camera cage (it is recommended to use it with “SmallRig cage”, only one screw can be locked at the bottom of the camera, which may lead a risk of deflection!)
- Page 7 Unlock the Half Ball Head, fine-tune the camera to a horizontal position, and then lock the PTZ dome camera. Install the Y-shaped lens support (recommended for use with larger and longer lenses) onto the magic arm end of the 1/4 "-20 interface. Connect the lens support with the magic arm, and then lock onto the suction cup.
- Page 8 Pass a magic sticker through the Y-shaped lens support and wrap around the lens to make the lens and the Y-shaped support well fitted. Attach a safety rope to the cage. Lock another safety rope onto the Half Ball Head. Lock the other end of the above two safety ropes onto the vehicle, and wrap and tight...
- Page 9 Finally, manually check the entire unit to ensure that the white marking line of the suction cup is retracted, and all of the suction cups are firmly attached, and the unit is steadily connected. Besides, it is recommended to check the status of the unit every 2 hours.
