SmallRig MagicFIZ User Manual page 5

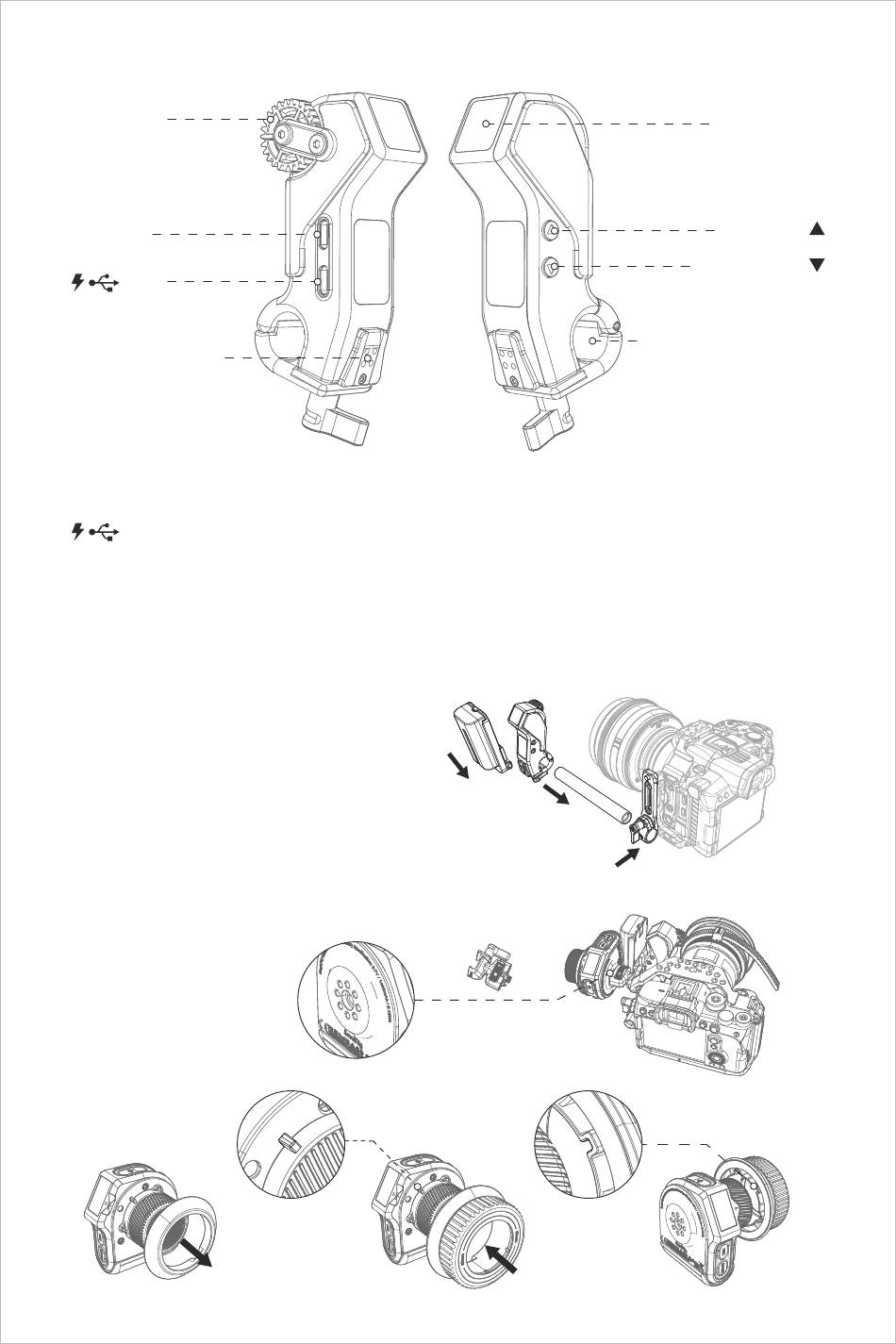

4. Wireless Receiver Motor
M0.8 Gear
REC Port
Port
Battery Plate Port
Up / Down Button:
REC Port:
Connect the camera REC port for wired control.
Port:
Power supply and communication Port.
Battery Plate Port: Used with Battery Plate (ID: 3777), compatible with NP-F batteries.
Instruction of Product Installation and Power Supply
1. Installation Guide for Wireless Receiver Motor
Install the Wireless Receiver Motor on
the camera side by use of the included
accessories.
2. Installation Guide for Wireless Handwheel Controller
2.1 Install the Wireless Handwheel Controller on the camera side by
use of the Handgrip Adapter via 1/4"-20 threaded hole.
2.2 Marking Disk Replacement / Installation.
4
1. Channel Adjustment; 2. Motor Number Adjustment.
④ ③
②
Handgrip Adapter
Align with the
slot for installation
OLED Screen
Up Button
Down Button
φ15mm Rod Opening
①
