SmallRig 4841 Operating Instruction

Rotatable bilateral quick release side handle

Advertisement

Quick Links

4841 / 4842
Rotatable Bilateral
Quick Release Side Handle
- Operating Instruction -

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4841 and is the answer not in the manual?

Questions and answers

Summary of Contents for SmallRig 4841

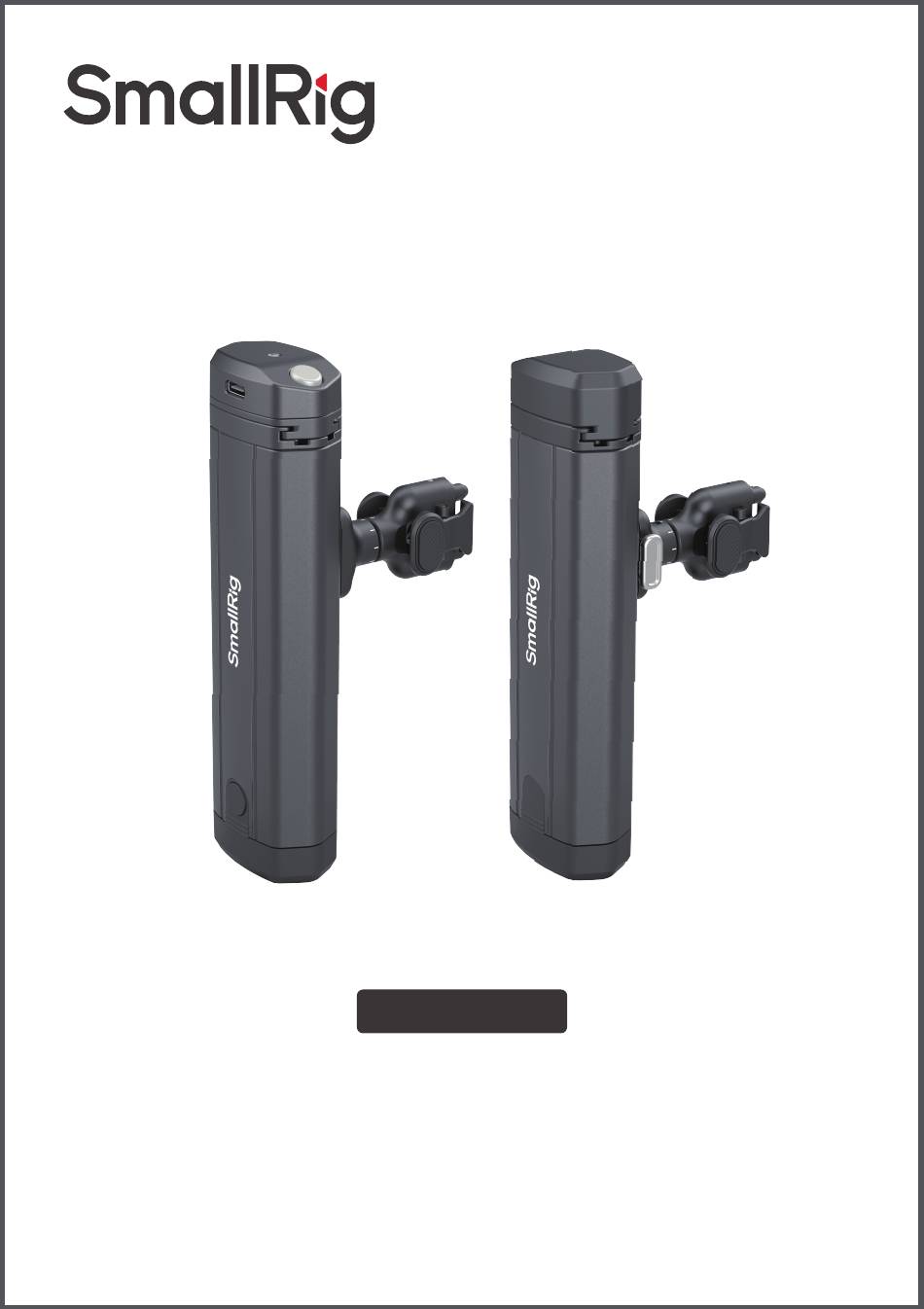

  • Page 1 4841 / 4842 Rotatable Bilateral Quick Release Side Handle - Operating Instruction -...
  • Page 2: Product Details

    Allen Wrench M.2 SSD Enclosure (4841) (4842) Rotatable Bilateral Quick Release Rotatable Bilateral Quick Side Handle with M.2 SSD Enclosure Release Side Handle Note: 【4841】 The M.2 SSD is not included in the handle; 【4842】 Wireless remote controller is not included.
  • Page 3: Installation Steps

    Installation Steps 1. Handle installation and adjustment: The handle quick release adapter features bilateral quick released functions. Press and hold the button on the quick release adapter as illustrated, align the chute on the adapter with the quick release slider of the handle and slide it in, release the button to lock.
  • Page 4: Key Features

    2. The 4841 side handle has a wireless remote control module, which can control the mobile phone shooting, focus and zoom functions; 3. The 4841 side handle can be extended with M.2 SSD to support mobile phone recording ProRes 4K•60 video;...
  • Page 5 4841 Wireless Remote Control Functions & Settings Adaptation system: Apple, Android, Harmony OS. Key description: two-stage shutter button, zoom lever, system switch button. 1. Bluetooth Connection Name SmallRig WR-05 Press and hold the shutter button for 2 seconds to turn on,...
  • Page 6 2. Apple IOS system connection settings (For example IOS17.5.1) After connecting with the Bluetooth on the Apple phone, be sure to set the following settings: (1) Go to Apple “Settings” → “Accessibility” → “Touch” → “AssistiveTouch” → On. (2) Go to Apple “Settings” → “Accessibility” → “Touch” →“AssistiveTouch” → “Mouse Key”...
  • Page 7 Note: iPhone 16 Pro Max: Adjust to Variable 7 (3) Go to Apple “Settings” → “Accessibility” → “Touch” → “AssistiveTouch” → “Tracking Sensitivity” → Adjust to Minimum.
  • Page 8 (4) Drop-down to open “Control Center" → turn on “Portrait Orientation Lock" → ON. 3. Shooting In the pairing state, after starting the camera: Focus: Half-Press the shutter button for more than 0.3 seconds to focus and metering with the center of the frame as the focal point. Lock Focus: Hold and half-press for more than 2 seconds to lock the center as focal point.
  • Page 9 Specification of Wireless Remote Controller (4841) Operating Power Consumption ≤3mW Standby Power Consumption ≤0.04mW Input 5V⎓0.1A Battery Capacity Parameters 3.7V 145mAh 0.54Wh Current Operating Temperature -30℃ to 60℃ / -22°F to 140°F Wireless Remote Control Distance 10m / 32.8ft Wireless Frequency 2.4GHz...
  • Page 10 SSD Test Report - the phone can directly power to (no docking station and external power supply required) Test Mobile: iPhone 15 Pro USB3.1 Copy / Tested SSD Remark Read / Write Format Samsung 980 M.2 NVMe SSD 2280 1TB Samsung PM991a M.2 NVMe SSD 2230 1TB WD 990PRO M.2 NVMe...
  • Page 11 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 12 4841 / 4842 旋转双快拆侧手柄 — 操作指引 —...
  • Page 13 ·感谢您购买 SmallRig 产品。 ·使用本产品之前,请仔细阅读操作指引。 ·请注意所有警告提示并遵循使用操作指引的所有指令。 包装清单 4841 4842 M.2 SSD 硬盘盒式旋转双快拆侧手柄 × 1 旋转双快拆侧手柄 × 1 用户手册 用户手册 × 1 × 1 操作指引 操作指引 × 1 × 1 保修卡 保修卡 × 1 × 1 产品介绍 硅胶装饰盖 无线遥控器 手柄 快拆转接头 六角扳手...
  • Page 14 安装步骤 1. 手柄安装与调节:手柄快拆转接头为双边快拆。按住图示快拆转接头上的 按钮,将转接头上的滑槽对准手柄快拆滑条并滑入,松开按钮即可锁定。 按压 按压 2. 手柄旋转:手柄快拆转接头可进行无级旋转。握住手柄,逆时针或顺时针 旋转手柄,可在任意角度停留。 注意:转接头旋转阻尼较大,需要将手柄与拓展框连接后进行旋转方可实现。...
  • Page 15 3. 手柄M.2 SSD 安装:按住手柄尾部并拉出SSD硬盘盒,旋转尾部软胶塞, 将M.2 SSD固态硬盘接口对准硬盘盒卡槽插入(请确保SSD接口标准为 M-Key)。 旋转软胶塞以确保SSD固态硬盘被固定,然后将固态硬盘附送 的导热硅胶覆盖至硬盘表面,推动硬盘盒至手柄内部固定后即可使用。 手柄功能说明及特性 1. 手柄为稳定而流畅的手机视频提供了集成化的解决方案; 2. 支持双边快拆,无需额外工具一秒拆装、任意调节; 3. 可无极旋转,支持任意角度握持,可在侧手柄和上手提模式间一秒切换; 4. 4841侧手柄带无线遥控模块,可一键控制手机拍照/摄影、对焦和变焦功能; 5. 4841侧手柄可拓展M.2 SSD后支持手机录制ProRes 4K视频;...
  • Page 16 4841 无线遥控器功能与设置 适配系统:苹果、安卓、鸿蒙。 按键说明:两段式快门按键、变焦拨杆、系统切换拨动开关。 1. 手柄连接 遥控器名称 SmallRig WR-05 (关机状态下) 长按快门键2秒开机,指示灯慢闪烁进入 开机方式 配对状态,配对成功后绿灯熄灭 长按3秒关机,指示灯熄灭 关机方式 遥控器左侧设有拨动开关,左拨适配IOS苹果系统, 右拨适配安卓/鸿蒙等其他系统; 系统选择 注意:连接手机前需拨至手机系统对应的位置, 如没有拨至匹配,则功能无法使用。 打开手机无线设置,在下方无线设备列表中搜索 手机配对 “SmallRig WR-05”,点击配对。 指示灯绿色慢闪烁 无配对状态 开机后,无配对状态下无操作3分钟后自动关机; 自动关机 或配对状态下,无操作20分钟后自动关机。 剩余电量低于10% (电池电压低于3.3V), 红色指示灯 低电量状态 慢闪烁 充电状态 充电时红灯常亮,满电后指示灯熄灭 开机后,如上一次已配对手机无线处于打开状态, 开机自动配对 直接自动连接 与手机处于连接状态时,在手机无线设置页面取消...
  • Page 17 2. 苹果IOS系统连接设置(参考IOS17.5.1) 与苹果手机蓝牙连接后务必做以下设置: (1) 进入苹果 “设置” → “辅助功能” → “触控” → “辅助触控” → 打开。 (2) 苹果“设置”→ “辅助功能” → “触控” → “辅助触控” → “鼠标键” → “最大速度” 调节至第6档( iPhone 16 Pro Max 调节至第7档)。...
  • Page 18 提示: iPhone 16 Pro Max 调节至第7档 (3) 苹果 “设置” → “辅助功能” → “触控” → “辅助触控” → “跟踪灵敏度” 调节至最低。...
  • Page 19 (4) 下拉打开 “控制中心”, 打开 “竖排方向锁定”。 3. 手柄拍摄 配对状态下,启动相机后: 对焦:半按快门按键超过0.3秒,以画面中心为焦点进行对焦和测光。 锁定对焦:保持半按超过2秒,完成画面中心焦点的锁定。 拍照/拍摄:全按快门按键,实现拍照或拍摄视频。 变焦:向左顺时针拨动变焦拨杆,拍摄画面放大;向右逆时针拨动变焦拨杆,拍摄 画面缩小。 切换前后镜头:双击半按拍摄按钮,切换前后摄像头。 (1)苹果IOS系统适配性提示:如苹果手机遇到视频拍摄时无法变焦情况,可 通过快速半按快门键三次,下移模拟触摸点即可变焦。 (2)安卓/鸿蒙系统适配性提示:如安卓/鸿蒙手机正常连接状态下无法变焦, 可通过快速半按快门键三次,切换至模拟触摸模式即可变焦。 注意:辅助触控的悬浮按钮不能与变焦按钮处于同一水平线上,否则会导致 变焦卡顿。...
  • Page 20 ≤3mW 待机功耗 ≤0.04mW 输入 5V⎓0.1A 电池参数 3.7V 145mAh 0.54Wh 电流 工作温度 -30℃ ~ 60℃ 无线控制距离 无线频率 2.4GHz 4841 M.2 SSD硬盘盒参数 工作协议 NVMe V1.3 内置接口 M.2 M-Key USB 规格 USB-C 3.1 输入 5V⎓1.5A 兼容M.2 SSD规格 2230, 2242, 2260, 2280 待机功耗 0.38W 工作功耗...
  • Page 21 手机直接供电驱动 (无需拓展坞和外接电源) 的硬盘测试报告 手机型号:iPhone 15 Pro 文件拷贝 测试设备 USB3.1读写 备注 / 格式化 三星980 M.2 NVMe SSD 2280 1TB 三星PM991a M.2 NVMe SSD 2230 1TB 三星990PRO M.2 NVMe SSD 2280 4TB Fail* 有外部供电可支持手机USB3.1读写 西部数据 WD-BLACK SN770M NVMe 视频可正常储存,只能在电脑上读取; Fail* M.2 SSD 2230 1TB 有外部供电可支持手机USB3.1读写。...
  • Page 22 FCC ID: 2BC2U-4948 LQ-P1339-18 执行标准:GB4943.1-2022 Boîte 1 Papier 5 R219-249284 中国制造...
