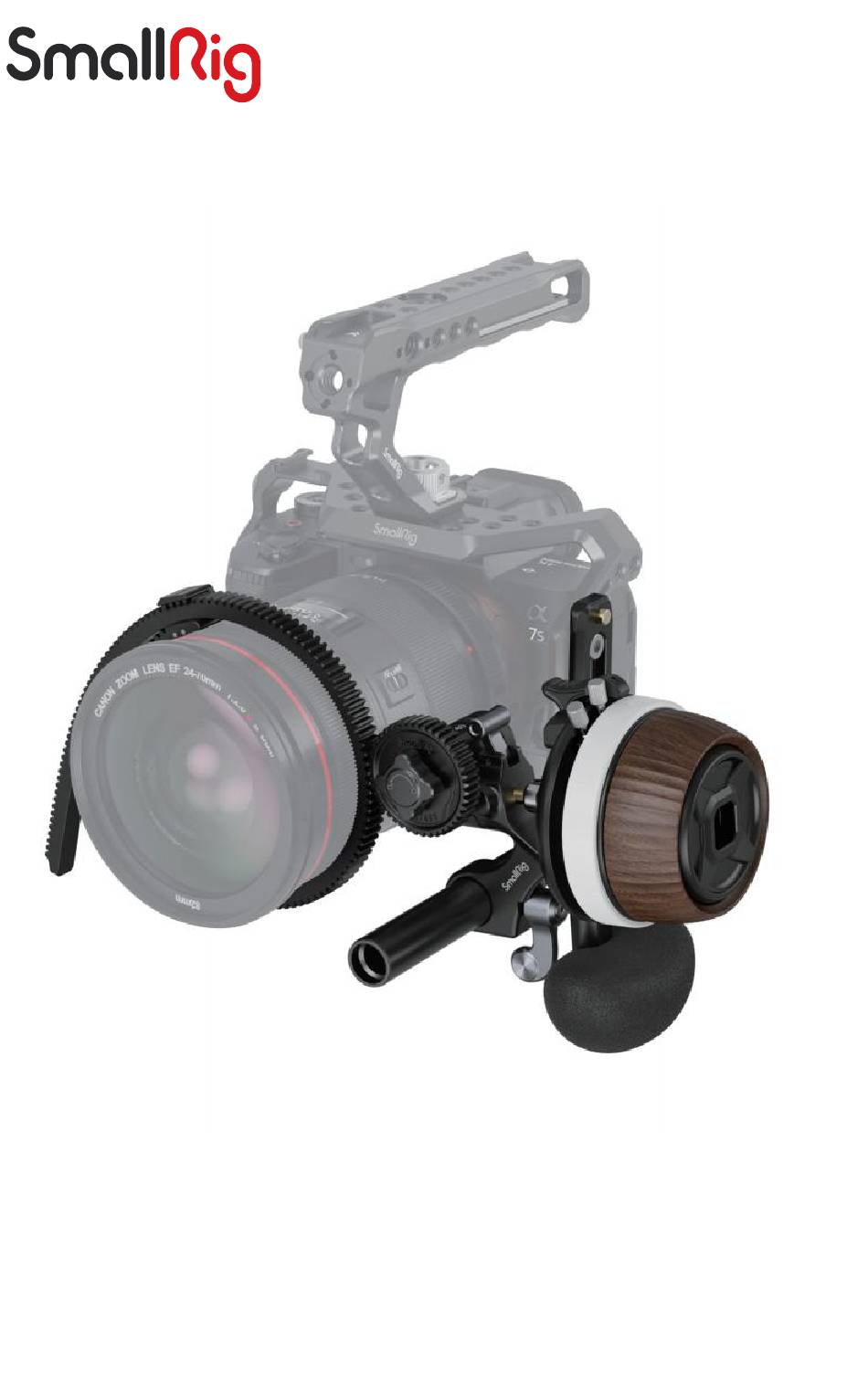

- Page 1 Modular Follow Focus F60 模块化跟焦器F60...
- Page 2 Catalogue / 目录 What’s Included 包装清单 Two Methods to Adjust Focus 两种驱动镜头跟焦方式 Optional Accessories 可选配件ID 手托安装 15mm Quick Release Arm 15mm摇臂安装 Silicone Gear Installation 硅胶齿轮安装 Preparation Before Attaching the Follow Focus Onto the Cage 跟焦器安装于拓展框前准备 Side / Top Mounting the Follow Focus 侧面-顶部安装跟焦器...
-
Page 3: What's Included
What’s Included / 包装清单 ⑤ ③ ① ④ ⑧ ② ⑦ ⑨ ⑥ ① Modular Follow Focus F60 × 1 ⑥ Snap-on Gear Ring × 1 模块化跟焦器 F60 扣式跟焦环 ② ⑦ Quick Release Arm × 1 Palm Support × 1 15mm摇臂... - Page 4 Two Methods to Adjust Focus / 两种驱动镜头跟焦方式 ① Friction Driven / 摩擦驱动 ② Gear Driven / 齿轮驱动 - 02 -...
- Page 5 Optional Accessories / 可选配件ID Rod Clamp / 双管管夹 Quick Release Plate / 阿卡快装板 4151 3853 Silicone Gear / 硅胶齿轮 Focus Adapter Part / 跟焦转接件 3852 3851 Palm Support Attachment / 手托安装 - 03 -...
- Page 6 15mm Quick Release Arm / 15mm摇臂安装 Silicone Gear Installation / 硅胶齿轮安装 - 04 -...
- Page 7 Preparation Before Attaching the Follow Focus Onto the Cage / 跟焦器安装于拓展框前准备 Step 1 / 步骤1 ① ② Attach 15mm Rod Clamp (with NATO Rail) 安装管夹﹙带滑条﹚ Step 2 / 步骤2 ④ ③ Insert 15mm Rod 安装15mm管 Step 3 / 步骤3 ⑤ Attach Snap-on Gear Ring 安装扣式跟焦环...
- Page 8 Side / Top Mounting the Follow Focus / 侧面-顶部安装跟焦器 ① ② Adjust the Locking Angle 调整锁紧角度 ① ② The Gear must firmly touch the lens 注意紧密贴合镜头 ③ Steps for Mounting the Follow Focus on Top 顶部安装跟焦器步骤说明 - 06 -...
- Page 9 Easily Adjust the Mounting Method According to the Lens / 根据镜头合理调整安装方式 Add 15mm Quick Release Arm 增加15mm摇臂状态 Individual installation status without 15mm Quick Release Arm 单独安装状态 - 07 -...
- Page 10 Adjustable AB Stop Mechanism / AB挡点切换 Changing Gear Mounting From the Right to Left Side / 齿轮安装左右两边操作 ③ ① ② - 08 -...
- Page 11 Damping Adjustment / 阻尼调节操作 Forward / Reverse Rotation Switching / 正反转切换操作 ② ① ④ ③ - 09 -...
- Page 12 Marker Ring Replacement Procedure / 更换标记环操作 Note: Align with the slot 备注：对准限位槽安装 - 10 -...
- Page 13 Dual Rod Clamp Installation and Adjustment / 双管管夹安装与调节 Locking and Adjusting Lever 固定松脱调节 Tilt angle is adjustable Horizontal positioning is adjustable 角度可调节 水平位置可调节 ① ② Attach Rod Clamp﹙ID:4151﹚ 管夹﹙ID:4151﹚安装 - 11 -...
- Page 14 For more methods, please scan the code for details. 更多使用方法，请扫码了解详情 operating instructions 中文操作说明 www.smallrig.com Made in China | 中国制造...
