Base
(1) Lift the incline lever to set the saw to 90° (0°) and then
tighten the lever.
(2) Retract the lower guard and place the saw upside
down.
(3) Place a combination square against the blade and
base to check whether the blade is 90° to the base.
(4) If the blade is not 90° to the base, turn the hex screw
on the bottom of the base by using 3 mm hex wrench
to adjust.
(5) Check the accuracy of the adjustment by an actual cut
on a scrap piece of material.

OPERATION

WARNING
● Never touch the moving parts.
● Never operate the circular saw with the saw
blade turned upward or to the side.
● Do not fi x and secure the lock-off button.
Besides, keep your fi nger off the trigger switch
when the circular saw is being carried around.
Otherwise, the main body switch can be
inadvertently turned ON, resulting in unexpected
accidents.
● Do not use any abrasive wheels.
● Use only blade diameter specifi ed on the product
nameplate.
● Should the saw blade be stopped or make an
abnormal noise during operation, turn off the
switch immediately.
● Don't remove circular saw from workpiece during
a cut while the saw blade is moving.
● Always wear eye protection with side shields.
Ordinary eyeglasses do not provide adequate
protection.
20

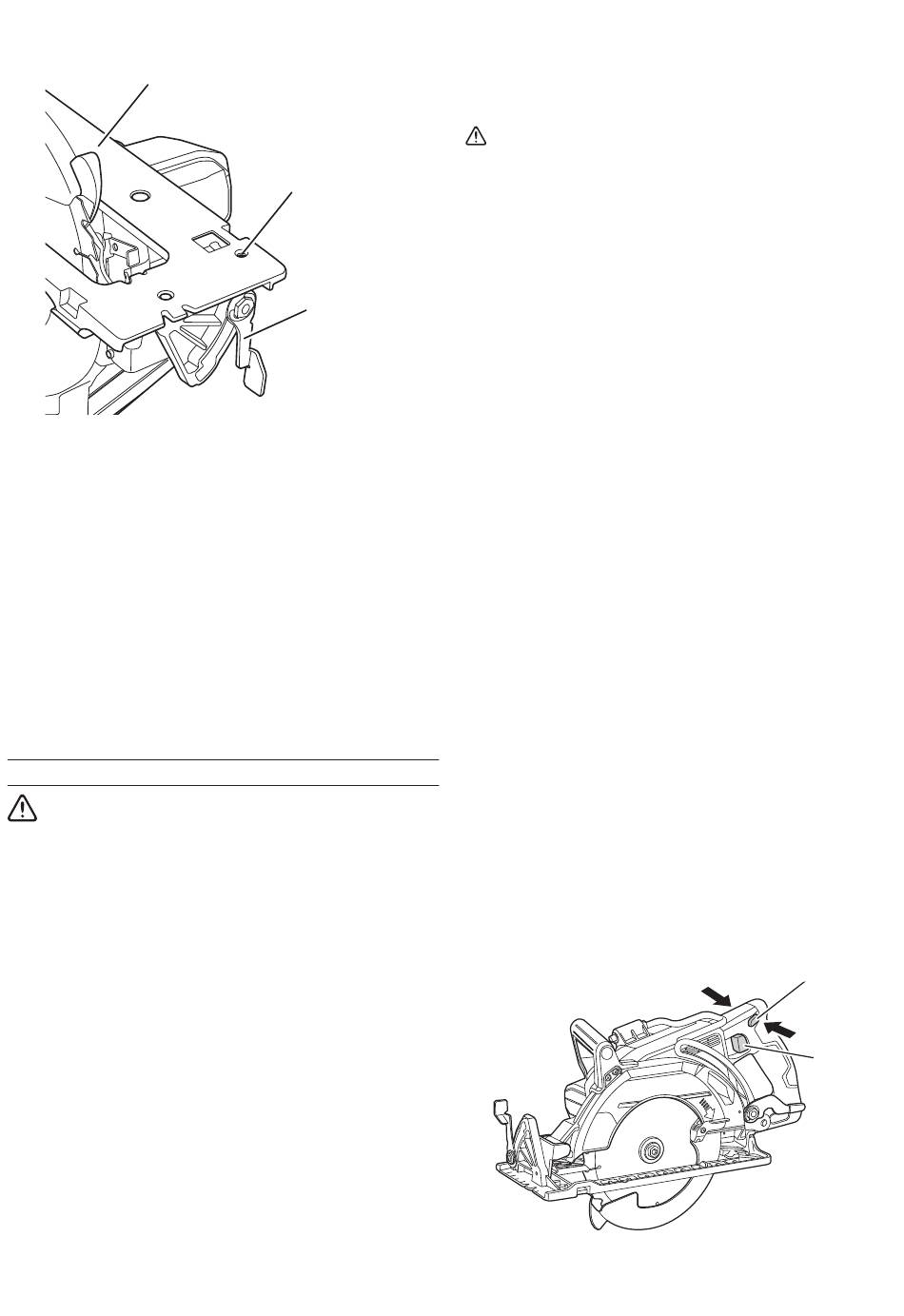

Hex screw
Incline lever
Fig. 24
● Avoid cutting any material like metal, etc., that
give off sparks.
CAUTION
● Pull out the battery after completing operation.
● To extend the lifetime, the lithium-ion battery
equips with the protection function to stop the
output. Therefore, if the tool is overloaded, the
motor may stop. However, this is not the trouble
but the result of protection function. In this case,
release the switch of tool and eliminate the
causes of overloading.
● Before use, check to see if the lock-off button
moves smoothly.
NOTE
Take care not to lock the motor. If the motor is locked,
immediately turn the power off . If the motor is locked
for a while, the motor or battery may be burnt.
1. Check if saw blade is tightened
While the saw blade is tightened securely for
immediate use when it is assembled at the factory,
be sure to check it out again for caution's sake. A bolt
can be tightened when it is turned clockwise. Use the
provided wrench to check it out. For further details,
refer to the item of [PRIOR TO OPERATION] on
Page 16.
2. Check if the lever is tightened
If the cutting depth lever (Fig. 21) is loose, injury can
result. Make sure that it is tightened securely.
3. Switch operation (Fig. 25)
For safe operation of the machine, a "lock-off button"
is provided on the side of a handle.
If the "trigger switch" is pulled in a state where "lock-
off button" is pressed in the direction of the arrow
mark, the main switch can be turned ON.
After the switch is on, the saw blade will continue to
operate as long as you pull on the trigger switch, even
if you release the lock-off button.
Lock-off button
Trigger
switch
Fig. 25
