(3) When charging is completed
○ To verify charge status, check the USB device.
○ Unplug the power cord from the electrical outlet.

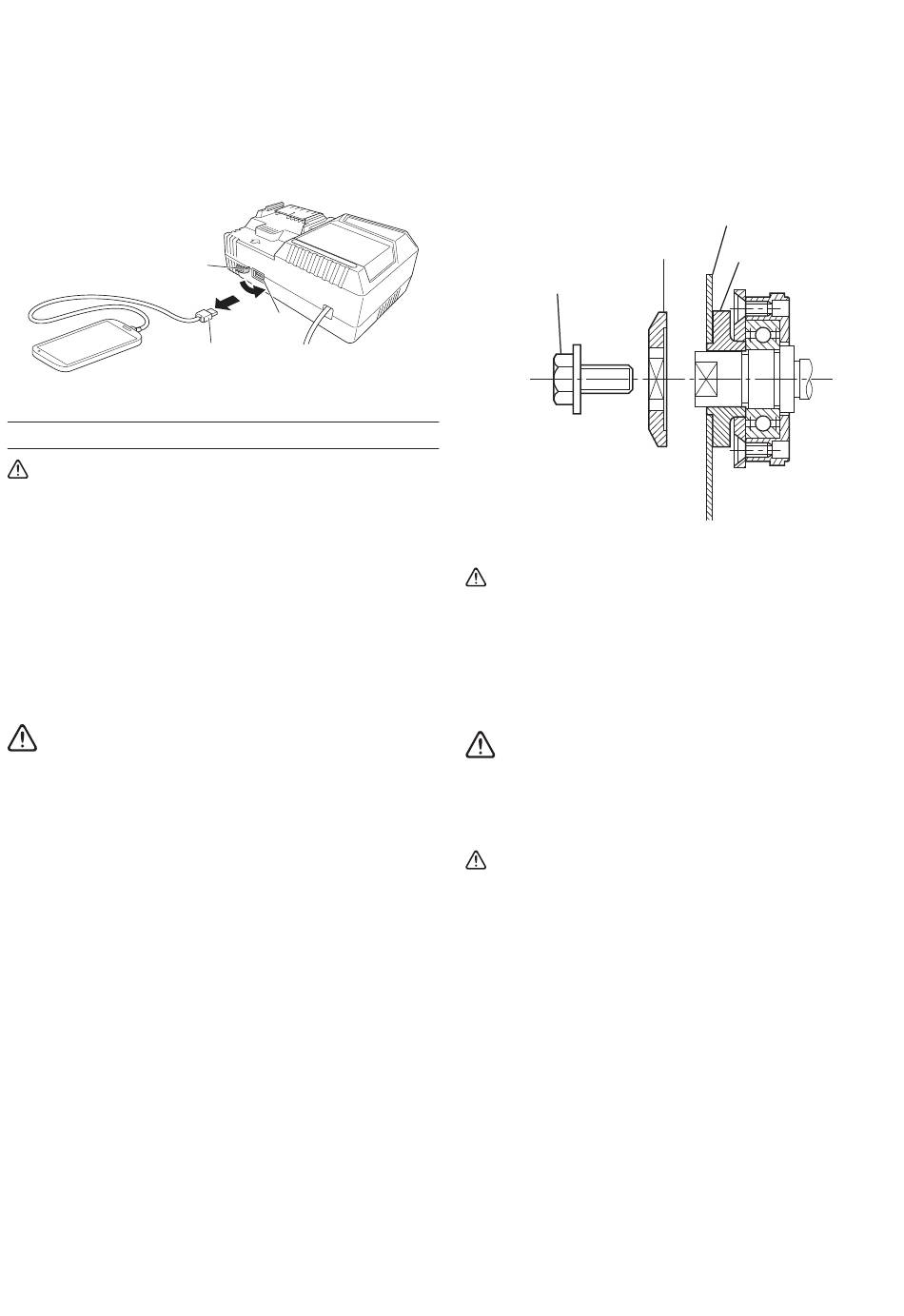

(Fig. 13)
○ Place the rubber cover over the USB port.
Rubber cover
USB cable

PRIOR TO OPERATION

CAUTION
To avoid serious accident, ensure the switch is in
the OFF position, and pull out the battery.
1. Check the work area environment
Check the work area to make sure that it is clear of
debris and clutter.
Clear the area of unnecessary personnel. Ensure that
lighting and ventilation is adequate.
2. Mounting the Saw Blade (Fig. 14)
WARNING
● Do not use a blade larger than 185 mm in
diameter. To avoid injury from an accidental
start, ensure the switch is in the OFF position
and make sure to pull out the battery.
● Make sure the blade is installed correctly and is
tight before operating.
● If the hexagonal fl ange bolt is worked using
other tools than the provided wrench, excessive
tightening and insuffi cient tightening may take
place, resulting in injury.
(1) Thoroughly remove any sawdust which has
accumulated on the spindle, bolt and washers.
(2) For mounting saw blade, the concave sides of both
washers (A) and (B) must be fi tted to the saw blade
sides. Mount the saw blade on the spindle, and fi nally
affi x washer (B) (See Fig. 14)
(3) To assure proper rotation direction of the saw blade,
the arrow direction on the saw blade must coincide
with the arrow direction on the blade cover.
16
USB port
Fig. 13
(4) Using the fi ngers, tighten the hexagonal bolt retaining
the saw blade as much as possible. Then depress the
lock lever, lock the spindle, and thoroughly tighten the
bolt.
(5) Confi rm that the lock lever is in the original position.
Washer (B)
Hexagonal
Flange Bolt
CAUTION
After mounting the saw blade, reconfi rm that the
lock button is fi rmly secured in the prescribed
position.
3. Dismounting the saw blade
WARNING
The tool becomes hot after tool operation.
To avoid burns, the blade replacement work
should be done after tool has cooled suffi ciently.
CAUTION
Never touch the saw blade immediately after use.
The metal is hot and can easily burn your skin.
Saw Blade
Washer (A)
Fig. 14
