4. About Remaining Battery Indicator
You can check the battery's remaining capacity by
pressing the remaining battery indicator switch to light
the indicator lamp. (Fig. 26, Table 4)
The indicator will shut off approximately 3 seconds
after the remaining battery indicator switch is pressed.
It is best to use the remaining battery indicator as
a guide since there are slight diff erences such as
ambient temperature and the condition of the battery.
Also, the remaining battery indicator may vary from
those equipped to a tool or charger.
Remaining battery
indicator lamp
Display panel
State of lamp
Remaining battery
indicator switch

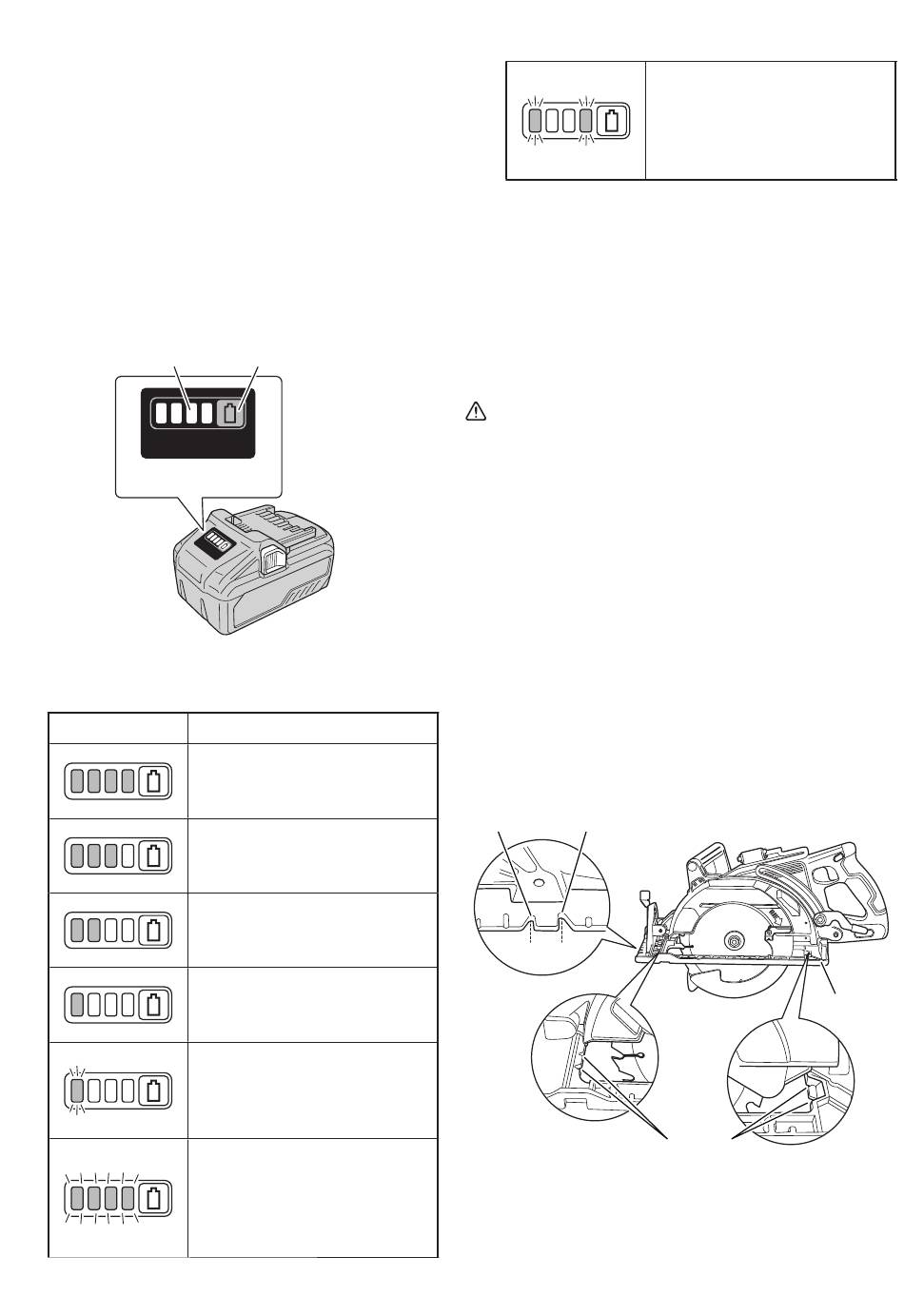

Fig. 26
Table 4
Battery Remaining Power
Lights ;
The battery remaining power is
over 75%
Lights ;
The battery remaining power is
50%–75%.
Lights ;
The battery remaining power is
25%–50%.
Lights ;
The battery remaining power is
less than 25%
Blinks ;
The battery remaining power
is nearly empty. Recharge the
battery soonest possible.
Blinks ;
Output suspended due to high
temperature. Remove the
battery from the tool and allow it
to fully cool down.
As the remaining battery indicator shows somewhat
diff erently depending on ambient temperature and
battery characteristics, read it as a reference.
NOTE
Do not give a strong shock to the switch panel or
break it. It may lead to a trouble.
5. Cutting procedures
CAUTION
● Recheck that the saw blade is securely clamped.
● Confi rm that the incline lever and the cutting
depth lever are adjusted correctly.
(1) The front of the base has a 90° guide notch and a 45°
guide notch for vertical and bevel cutting. The guide
notches enable you to guide the saw along the cutting
lines marked on the workpiece.
Also, the saw has the inner guide notches located on
the insides of the base as shown in Fig. 27 to keep the
straight cutting.
(2) When the base is not inclined, use the right side of the
notch.
If the base is inclined (45 degrees), use the left side of
the notch (Fig. 27).
45° guide
90° guide
notch
notch
45° 90°
Inner guide notches
Blinks ;
Output suspended due to failure
or malfunction. The problem
may be the battery so please
contact your dealer.
Base
Fig. 27
21
