DC 13,8V/9A uninterruptible power supply

9 outputs, protected with 1A glass fuses

fitting battery: 17Ah/12V

wide range of mains supply: ~200 - 240 V

high efficiency 87%

battery charging and maintenance control

excessive discharging (UVP) protection

battery charging current 1A/4A changed with
jumper

Approximate backup time: 2h 30min
CONTENTS:
1. Technical description.
1.1 General description
1.2 Block diagram
1.3 Description of PSU components and connectors.
1.4 Specifications
2. Installation.
2.1 Requirements
2.2 Installation procedure
3. Operating status indication.
3.1 LED indication of operating status
4. Operation and use.
4.1 Overload or short circuit of the PSU output (SCP on)
Battery-assisted operation
4.2
4.3 Maintenance
PSDCB09129C
Features:

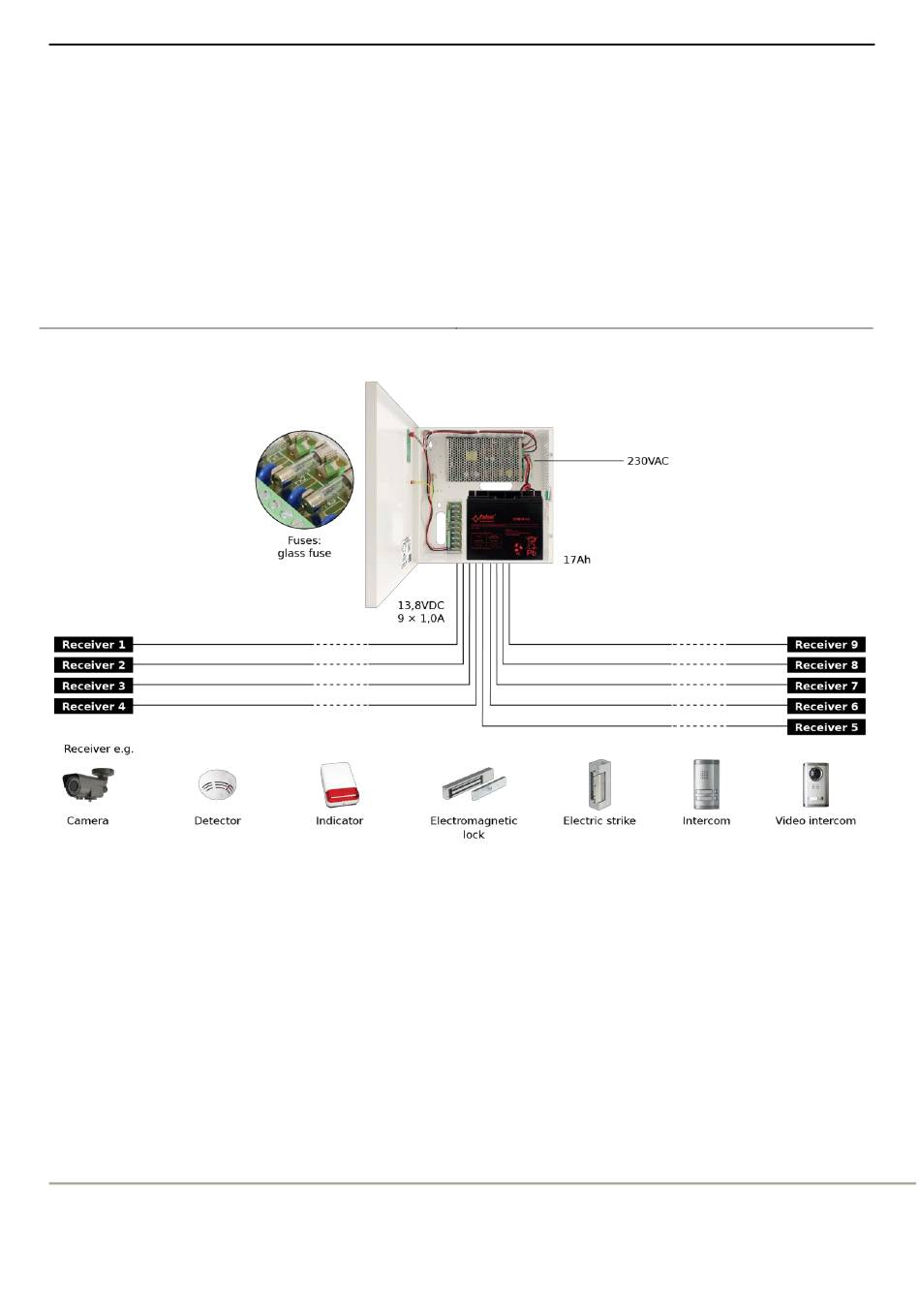

An example of power supply for HD cameras.
9 x 1A
2

battery output full protection against short-circuit
and reverse polarity connection

LED indication

protections:

SCP short-circuit protection

OVP overvoltage protection

overvoltage protection

against sabotage

overload protection (OLP)

warranty - 2 years from production date
