PSDCSEP04124
v.1.0
PSDCSEP 12V/4A/4x1A/TOPIC
Power supply for up to 4 cameras,
adjustable for each channel.
EN**
Edition: 2 from 25.05.2015
Supersedes the edition: 1 from 10.08.2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSDCSEP04124 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pulsar PSDCSEP04124

  • Page 1 PSDCSEP04124 v.1.0 PSDCSEP 12V/4A/4x1A/TOPIC Power supply for up to 4 cameras, adjustable for each channel. EN** Edition: 2 from 25.05.2015 Supersedes the edition: 1 from 10.08.2014...
  • Page 2: Table Of Contents

    1. Technical description. 1.1 General description. The PSDCSEP04124 stabilized power supply is designed to supply cameras or other devices requiring stabilized voltage of 12V DC. The power supply has four independently adjustable channels with selectable voltages in the range 12V ÷ 15V DC / 4x1A, thus compensating voltage drops in large CCTV installations. Power supply outputs are galvanically separated and protected by fuses.
  • Page 3: Block Diagram

    PSDCSEP04124 1.2. Block diagram. (fig.1). Fig.1. Block diagram of the PSU. 1.3. Description of PSU components and connectors. Table 1. Elements of the PSU pcb (see fig. 2). Element no. Description IN1….. IN4 Input of the DC supply F1…F4 fuses in circuits AUX (+) L1 ÷...
  • Page 4: Specifications

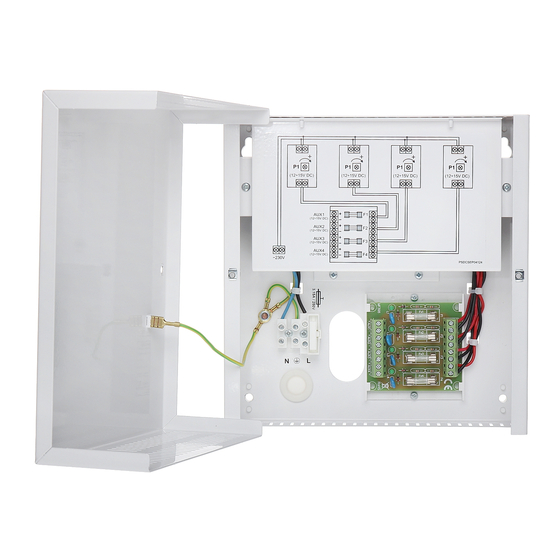

    PSDCSEP04124 Fig.3. The view of the PSU. 1.4. Specifications: - electrical specifications (tab.3) - mechanical specifications (tab.4) - operation safety (tab.5) - operating specifications (tab.6) Electrical specifications (tab. 3). 85 ÷ 264V AC Supply voltage Current consumption 1A@230VAC max.
  • Page 5: Installation

    PSDCSEP04124 Mechanical specifications (tab. 4). Enclosure dimensions 205 x 220 x 80+8 (WxHxD) [mm] (+/- 2) 180 x 180 x 4 szt. Φ 6 (WxH) Fixing Net/gross weight 2,35/2,55 kg Enclosure Steel plate, DC01 0,7mm colour: RAL 9003 Closing Cheese-head screw x 2: at the front Power supply: 230V AC: Φ0,64-2,05 (AWG 22-14)
  • Page 6: Installation Procedure

    PSDCSEP04124 2.2 Installation procedure. 1. Before installation, make sure that the voltage in the 230V power-supply circuit is cut off. 2. Mount the PSU in a selected location and connect the wires. 3. Connect the power cables (~230VAC) to L-N terminals of the PSU. Connect the ground wire to the terminal marked by the earth symbol.
  • Page 7 WEEE separately. GENERAL WARRANTY CONDITIONS 1. Pulsar (the manufacturer) grants a two-year warranty for the equipment, counted from the device’s production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects, unless such...
  • Page 8 PSDCSEP04124 Pulsar Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl, sales@pulsar.pl http:// www.pulsar.pl, www.zasilacze.pl...
