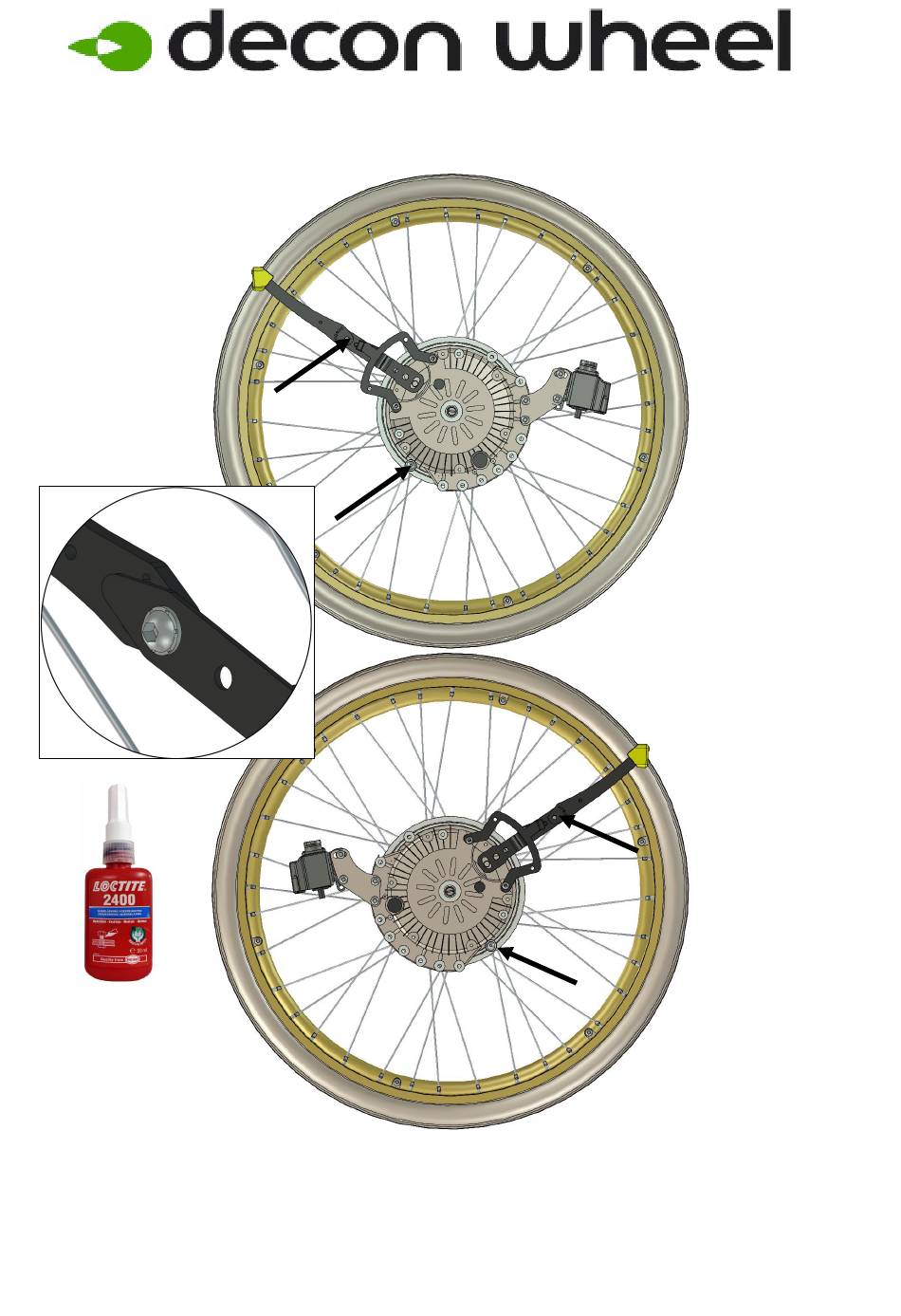

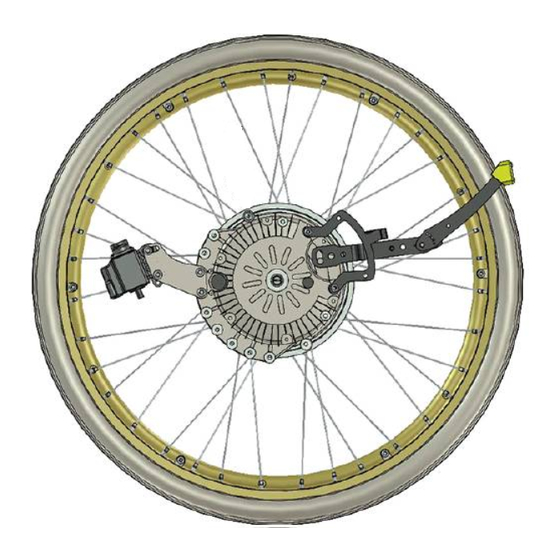

- Page 1 Assembly instructions for Netti I, II, III MED3010 1. Remove wheels on both sides. 2. Check the correct placement for the stop pin, and that the screws XSM6X10 with a lock washer for the handles are mounted. 2020-06-15...
- Page 2 3. Assembly the plate (right side) according to picture. Item No. Part Number Description MED2000 Bracket HW084 Hub Sleeve M18X1 100 400 016 Spacer XSM18M Nut : Standard - M18 100 400 008 Spacer 100 400 011 Spacer XSM8X40 Screw : Round - M8 x 40 XSM8ML Nut : Self-Locking - M8 405241...
- Page 3 4. Assembly the battery bag according to picture above. 5. Assembly for optional joystick bracket according to picture above. Item No. Part Number Description XSM6X16 Screw Round M6 x 16 XSM6BR Washer Plain M6 XSM6ML Nut Self-Locking M6 MED1500 Rev5 Bracket MC6SM5X40 Screw Socket M5 x 40...
- Page 4 Item No. Part Number Description XSM6BR Plain Washer M6 XSM6X50 Screw M6 x 50 XA2-2612E-00 Clamp with hole XA2-2612K-00 Drilled 6,2 1 Clamp with drilled hole 6,2 mm 2020-06-15...
- Page 5 MED1356 Attendant control with Joystick controller Item No. Part Number Description MED1317 Bracket MC6SM6X35 Screw M6 x 35 XSM6X16 Screw M6 x 16 XSM6BR Plain Washer M6 XSM6ML Locknut M6 MED1316 Plate with pin XA2-2612K-00 Clamp with thread XA2-2612E-00 Clamp with hole 2020-06-15...
- Page 6 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
