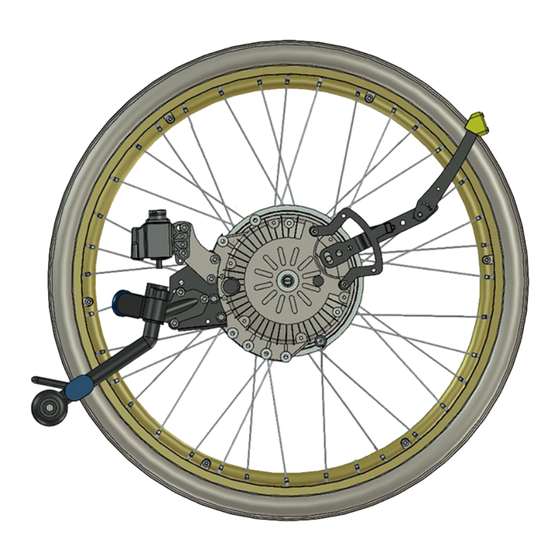

- Page 1 Assembly instructions for Legend 2 with Basic Block MED3150 1. Remove wheels on both sides. 2. Check the correct placement for the stop pin. 3. Remove anti tip devices from the chair, see pictures below. 2020-04-23...

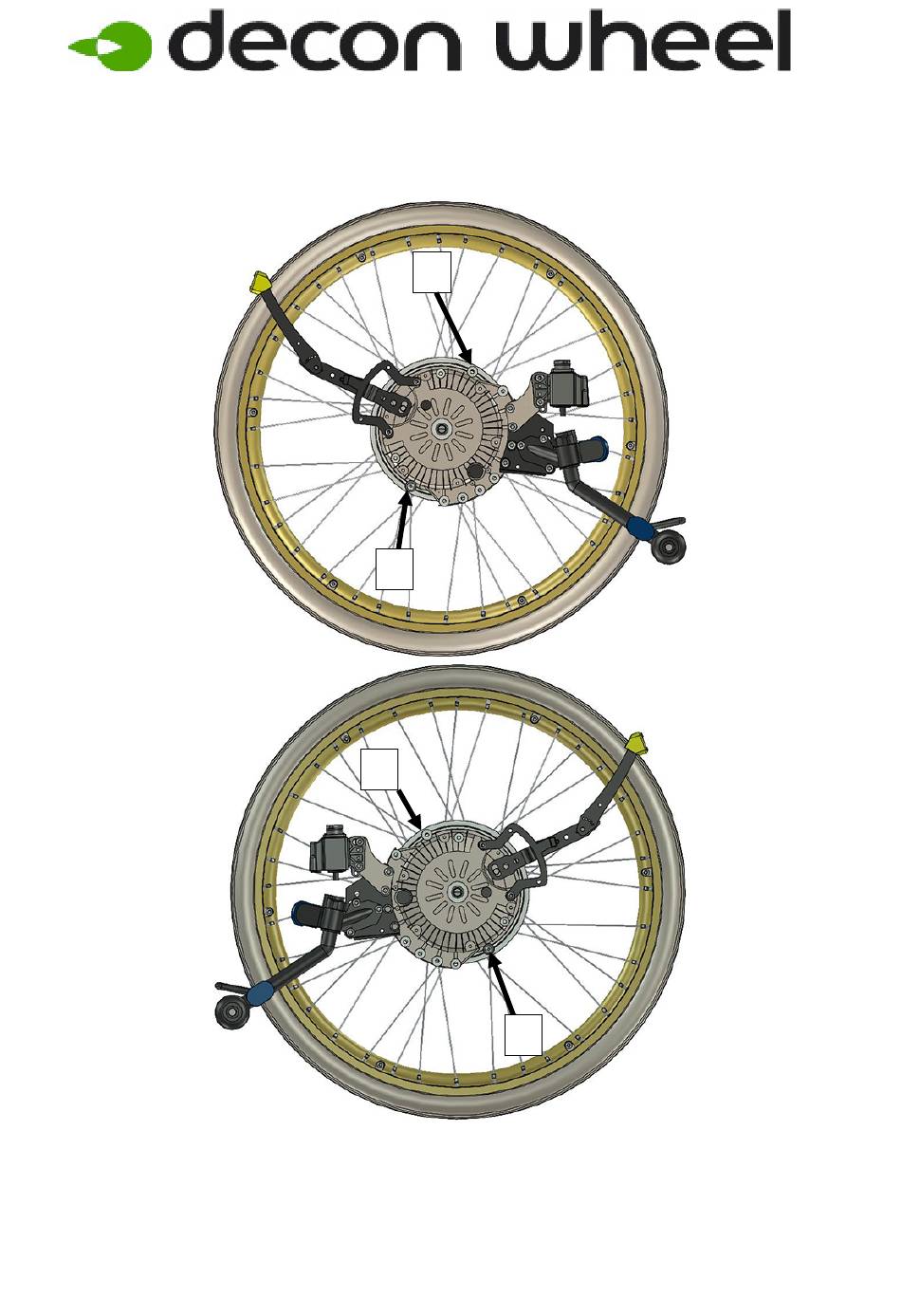

- Page 2 Battery box on wheel/ Battery bag Only Battery bag Only Battery bag Battery box on wheel/ Battery bag Only Battery bag Only Battery bag 4. Placement for the adapter plate. 2020-04-23...
- Page 3 5. Assembly the plate (right side) according to picture Parts pair mounting set: Item No. Part Number Description 100 400 008 Spacer 100 400 013 Spacer 405240 Nordlock Washer M18 100 400 016 Spacer XSM18M Nut M18x1 HW084 Hubsleever XSM8ML Locknut M8 XSM8X45 Screw M8 x 45...
- Page 4 MED1321 Legend2 with Joystick Item No. Part Number Description XOC-46295-00 Bracket XOC-48160-B0 Upper holder assembly2 XSM6X30 Screw M6 x 30 XSM6BR Plain washer M6 XSM6ML Locknut M6 XSM6X16 Screw M6 x 16 MED1502 Bracket MED1501 Rev4 Bracket 2020-04-23...
- Page 5 Attendant control with joystick (left and right side) MED1409 Move this too the other side, if you assemble the joystick on the left side. Item No. Part Number Description MED1317 Bracket XSM6X35 Screw M6 x 35 XSM6X16 Screw M6 x 16 XSM6BR Plain Washer M6 XSM6ML...
- Page 6 Alternative attendant control (only right side) Item No. Part Number Description XSM6TG Thorn Washer 6,4 Xklamma2 XClamp2 XSM6X20 Screw M6 x 20 XSM6BR Plain Washer 6,4 MED1200 Attendant control 2020-04-23...
- Page 7 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
