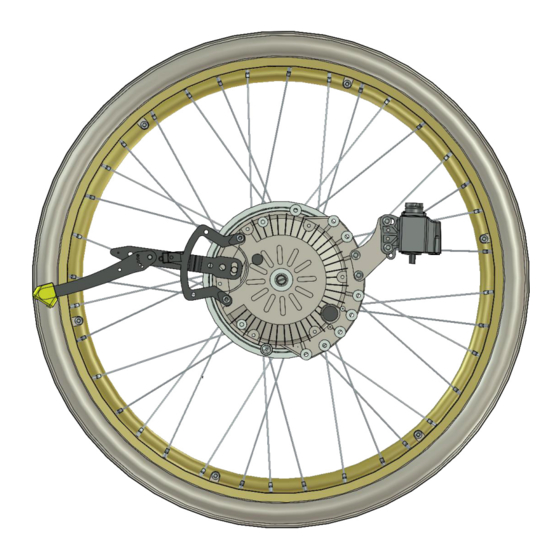

Assembly instructions for Sorg Jump, Vector
MED3190

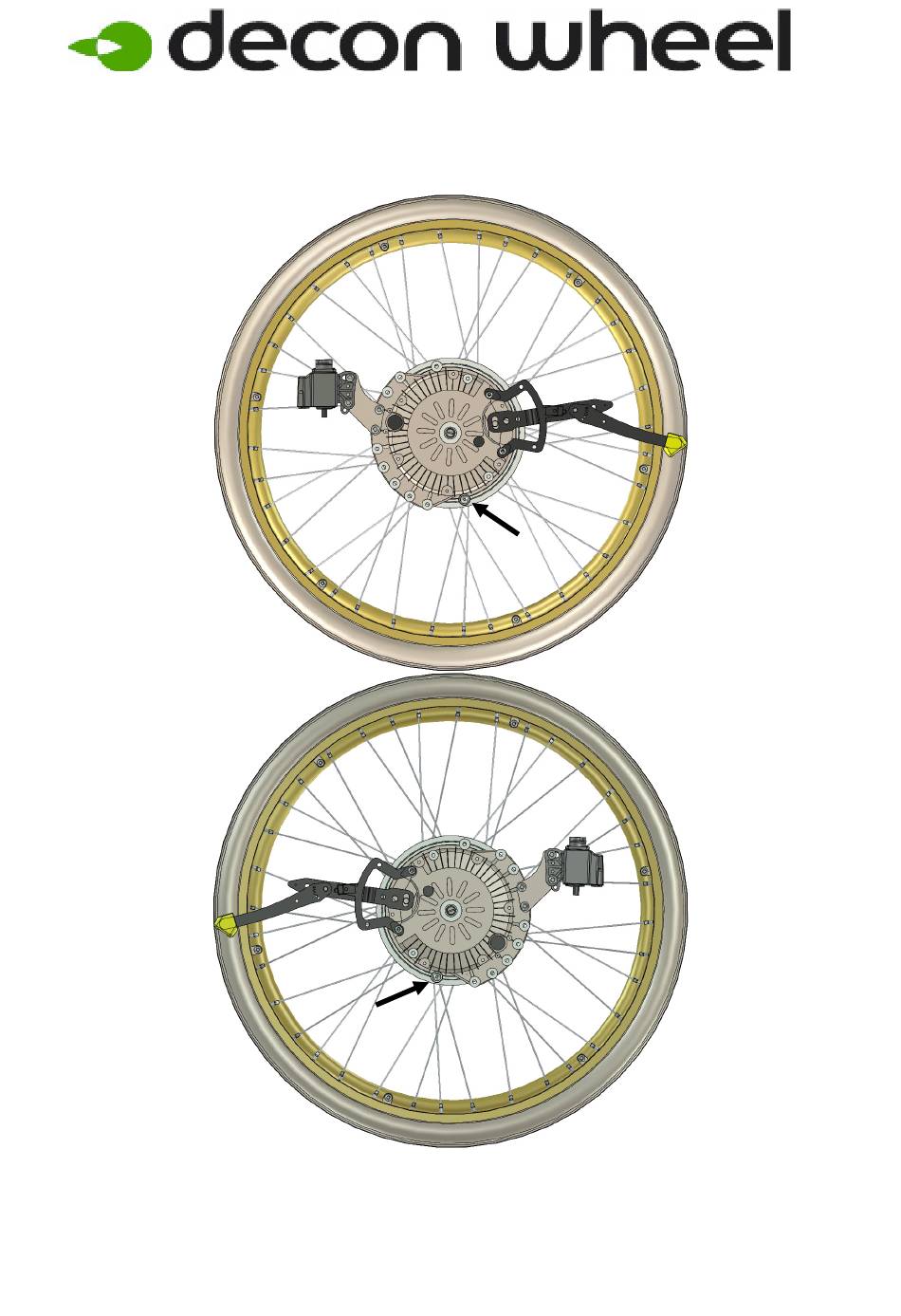

1. Remove wheels and sleeves on both sides.
2. Check the correct placement for the stop pin, and check that the battery box
and anti-tip devices are removed. Use the wheelchairs original tip-devices.
2021-09-03
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Decon wheel Sorg Jump
Summary of Contents for Decon wheel Sorg Jump
- Page 1 Assembly instructions for Sorg Jump, Vector MED3190 1. Remove wheels and sleeves on both sides. 2. Check the correct placement for the stop pin, and check that the battery box and anti-tip devices are removed. Use the wheelchairs original tip-devices.
- Page 2 40-50 Nm 19,5-28,5 Nm 3. Assembly the plate (right side) according to pictures. Parts pair mounting set for one side: ITEM PART NUMBER DESCRIPTION MED2000 Bracket 405241 Nordlock Washer M18 HW084 Sleeve 100 400 008 Spacer 100 400 016 Spacer Vector Spacer Not included (recycled from the wheelchair) 100 400 013...
- Page 3 Assemble the Joystick on Side cover with armrest ITEM PART NUMBER DESCRIPTION XOC-48160-B0 SwingAway Bracket MED1500 Bracket XSM6X16 Screw Round M6 x16 XSM6BR Plain Washer M6 XSM6ML Lock Nut M6 MED1320 Bracket NJF1022 Ball pin with pin X0F-48160-D00 Sliding bracket assembly 2021-09-03...
- Page 4 MED1209 Assembly instructions for Joystick as an Attendant control Item No. Part Number Description MED1317 Bracket XSM6X25 Screw M6 x 25 XSM6BR Plain Washer M6 XSM6LM Locknut M6 XSM6X20 Screw M6 x 20 MED1316 Plate with pin 8500-1042-01 Clamp dia. 20mm 100 400 039 Spacer 2021-09-03...
- Page 5 MED1210 Assembly instructions for Attendant control Item No. Part Number Description XSM6BRTG Thorn Washer M6 XSM6X20 Screw Round M6 x 20 8500-1042-01 Clamp dia. 20mm 2021-09-03...
- Page 6 Åtdragningsmoment / Tightening torque Metriska grovgänga, stål. Metric coarse thread, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
