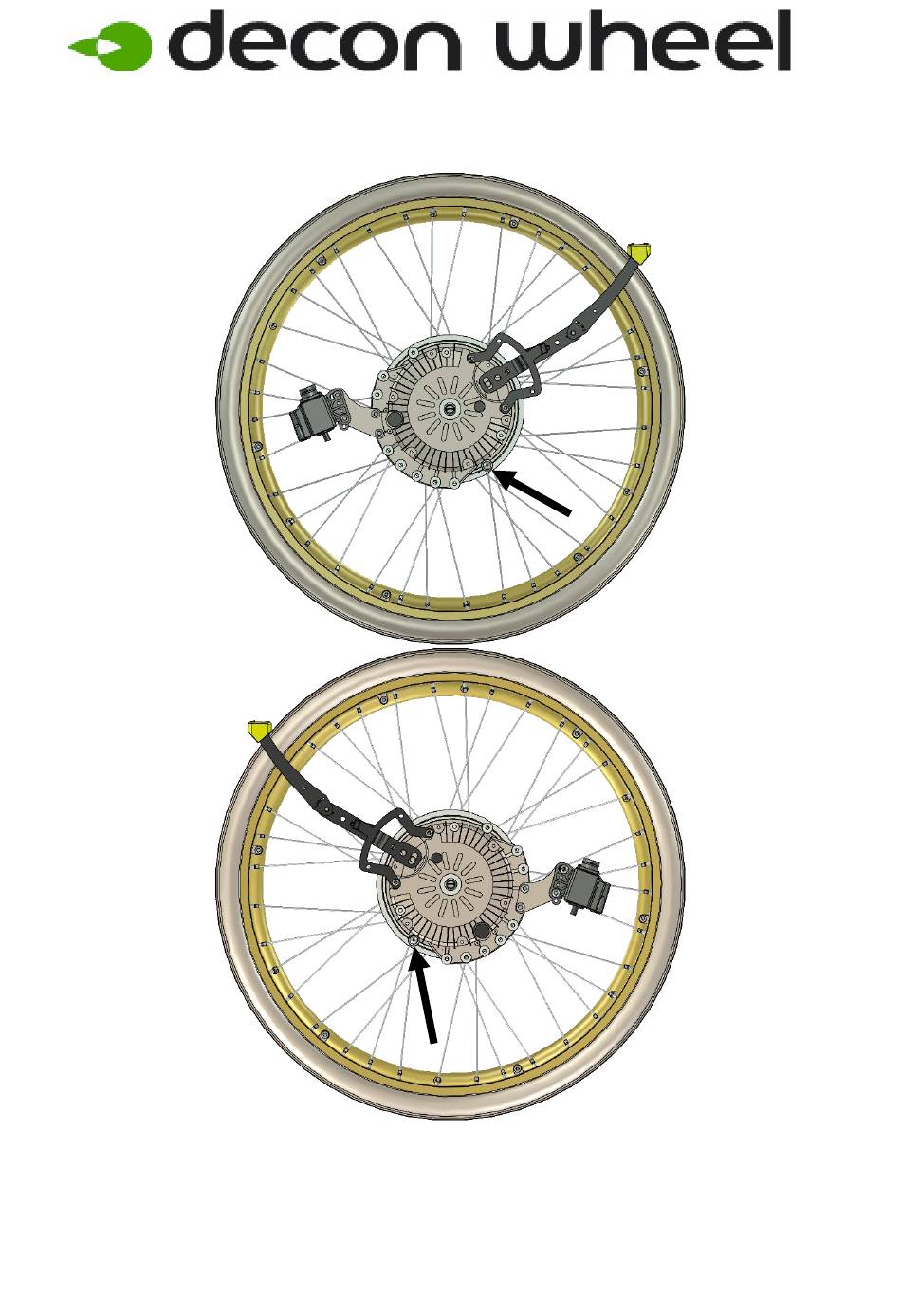

- Page 1 Assembly instructions for Meyra Nano 1.155 MED3315 1. Remove wheels and sleeves on both sides. 2. Check the correct placement for the stop pin and do not use antitip devices on the E-drive unit. 2020-09-10...
- Page 2 3. Assembly the plate (right side) according to picture. 4. Parts pair mountingset: Item No. Part Number Description MED1460 Bracket HW052 Sleeve XSFM6X12 Screw Countersunk M6 x 12 5. Assemble the under placed battery bag. 2020-09-10...
- Page 3 Brake assemble 6. Assemble the bracket according to pictures on top. Parts for right side mounting: Item No. Part Number Description XSM6X16 Screw Rounded M6 x 16 XSM6X12 Screw Rounded M6 x 12 AS 1474 - M6 Square Nut 310052 Bracket 7.
- Page 4 Joystick with Swing Away assembly on armrest with Code 748 Item No. Part Number Description MED1500 Rev5 Bracket X0C-48160-C0 Swing Away Bracket NJF1022 Ball pin with pin XSM6BR Plain Washer M6 XSM6ML Nut Self-Locking M6 XSM6X16 Screw Round M6 x 16 Note! MED1300 for the Leftside.
- Page 5 Joystick with Parallel assembly on armrest with Code 748 Item No. Part Number Description MED1500 Rev5 Bracket NJF1022 Ball pin with pin XSM6BR Plain Washer M6 XSM6ML Nut Self-Locking M6 XSM6X16 Screw Round M6 x 16 X0F-48160-D00 Parallel Bracket Note! MED1300 for the Leftside. 2020-09-10...
- Page 6 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Åtdragningsmoment / Tightening Gänga / Thread torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Åtdragningsmoment / Tightening Gänga / Thread torque M16x1 30 Nm...
