Assembly instructions for Kudu with 16" eDrive
MED3168
1. Remove wheels on both sides.
2. Remove adapter plates and anti-tip devices from the wheelchair.
3. Check the correct placement for the stop pin, anti-tip devices and that the battery box
is removed.
2020-03-06
Advertisement
Related Manuals for Decon wheel MED3168
Summary of Contents for Decon wheel MED3168
- Page 1 Assembly instructions for Kudu with 16” eDrive MED3168 1. Remove wheels on both sides. 2. Remove adapter plates and anti-tip devices from the wheelchair. 3. Check the correct placement for the stop pin, anti-tip devices and that the battery box is removed.
- Page 2 100 400 007 Spacer XSM8X25 Screw Round M8 x 25 XSM8ML Nut Self-Locking M8 100 400 017 Spacer MED2000 Bracket XSM8X16 Screw Round M8 x 16 MED3168-01 1 Bracket Kudu_eDrive16" 5. Assemble the back rested battery bag on the wheelchair. 2020-03-06...
- Page 3 MED1542 Assembly Joystick with Parallel Bracket Item No. Part Number Description X0F-48160-D00 Parallel Bracket XSM6ML Nut Self-Locking M6 XSM6X16 Screw Round M6 x 16 MED1541 Bracket Kudu 2020-03-06...

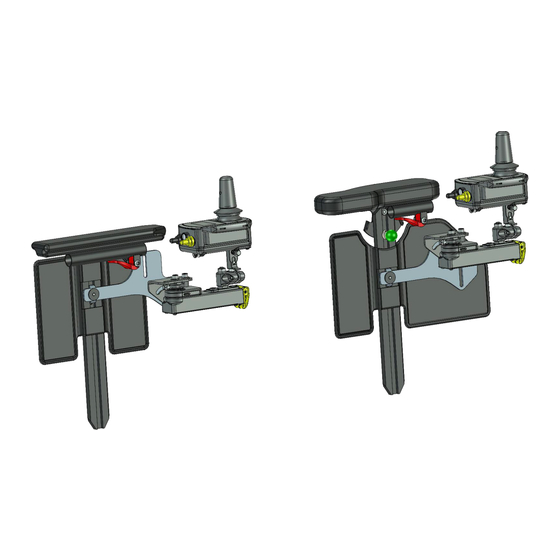

- Page 4 MED1543 Assembly Joystick Swing Away Bracket Item No. Part Number Description XSM6ML Nut Self-Locking M6 XSM6X16 Screw Round M6 x 16 XOC-48160-C0 Swing Away MED1541 Bracket Kudu 2020-03-06...
- Page 5 MED1356 Attendant control with Joystick controller Item No. Part Number Description MED1317 Bracket MC6SM6X35 Screw M6 x 35 XSM6X16 Screw M6 x 16 XSM6BR Plain Washer M6 XSM6ML Locknut M6 MED1316 Plate with pin XA2-2612K-00 Clamp with thread XA2-2612E-00 Clamp with hole 2020-03-06...
- Page 6 Assistant control Assembly 6. Assemble the assistant control on optional place. Item No. Part Number Description MED1200 Assistant controller 91312-06050 Screw Socket M6 x 50 92902-06200 Washer Plain M6 XA2-2612E-00 Clamp XOD-2612K-00 Clamp2 2020-03-06...
