Decon wheel Meyra Nano 1.155 Assembly Instructions

Assembly instructions for Meyra Nano 1.155

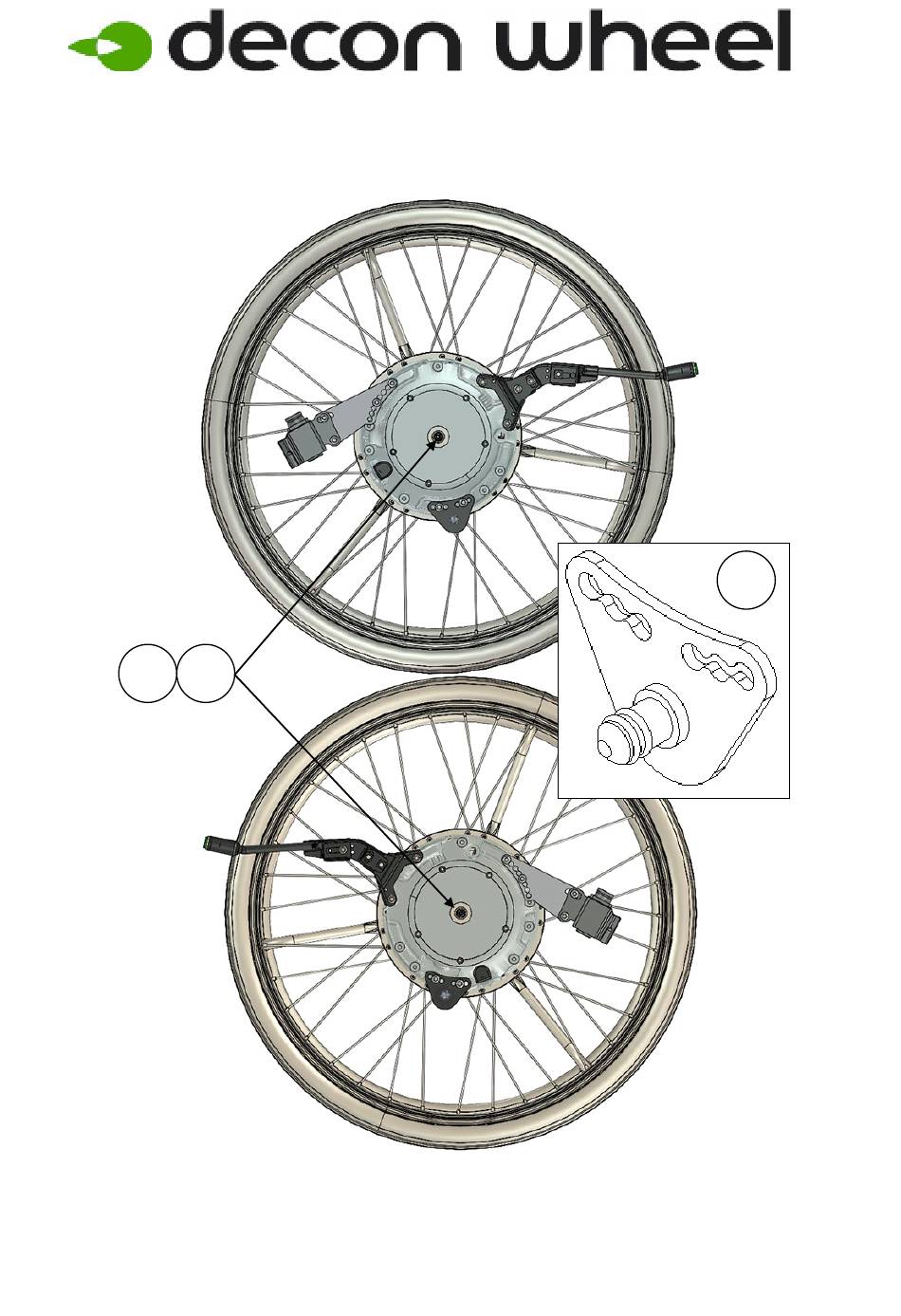

1. Remember to assemble the wheelchairs original anti tip devices.

2. Remove wheels and hub sleeves on both side of the wheelchair.

3. Check the correct placement for the eMove, and that it is axle Ø12,7 x 51 with

Part Number: XOE-2530E-C0 and Spacer with Part Number: XOC-25383-00 and

Stop pins is assembled with Part Number: 320003

MEM6399P and MEM6400P

2020-09-10

Table of Contents

Need help?

Do you have a question about the Meyra Nano 1.155 and is the answer not in the manual?

Page 1 Assembly instructions for Meyra Nano 1.155 MEM6399P and MEM6400P 1. Remember to assemble the wheelchairs original anti tip devices. 2. Remove wheels and hub sleeves on both side of the wheelchair. 3. Check the correct placement for the eMove, and that it is axle Ø12,7 x 51 with...
Page 2 4. Assemble the bracket according to pictures on top. Parts for right side mounting: Item No. Part Number Description HW052 Sleeve XSFM6X12 Screw Countersunk M6 x 12 310050 Bracket XOC-25383-00 Spacer 93440-120520 Circlip 320003 Stop Pin Bracket Note! If you only order the mounting set, the axle, axle spacer and the circlip are not included, for replacement see the service manual.
Page 3 Brake assemble 6. Assemble the bracket according to pictures on top. Parts for right side mounting: Item No. Part Number Description XSM6X16 Screw Rounded M6 x 16 XSM6X12 Screw Rounded M6 x 12 AS 1474 - M6 Square Nut 310052 Bracket 7.
Page 4 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
