Assembly instructions for Küschall K-Serie, K-Serie G3
1. Remove the wheels.
9
10

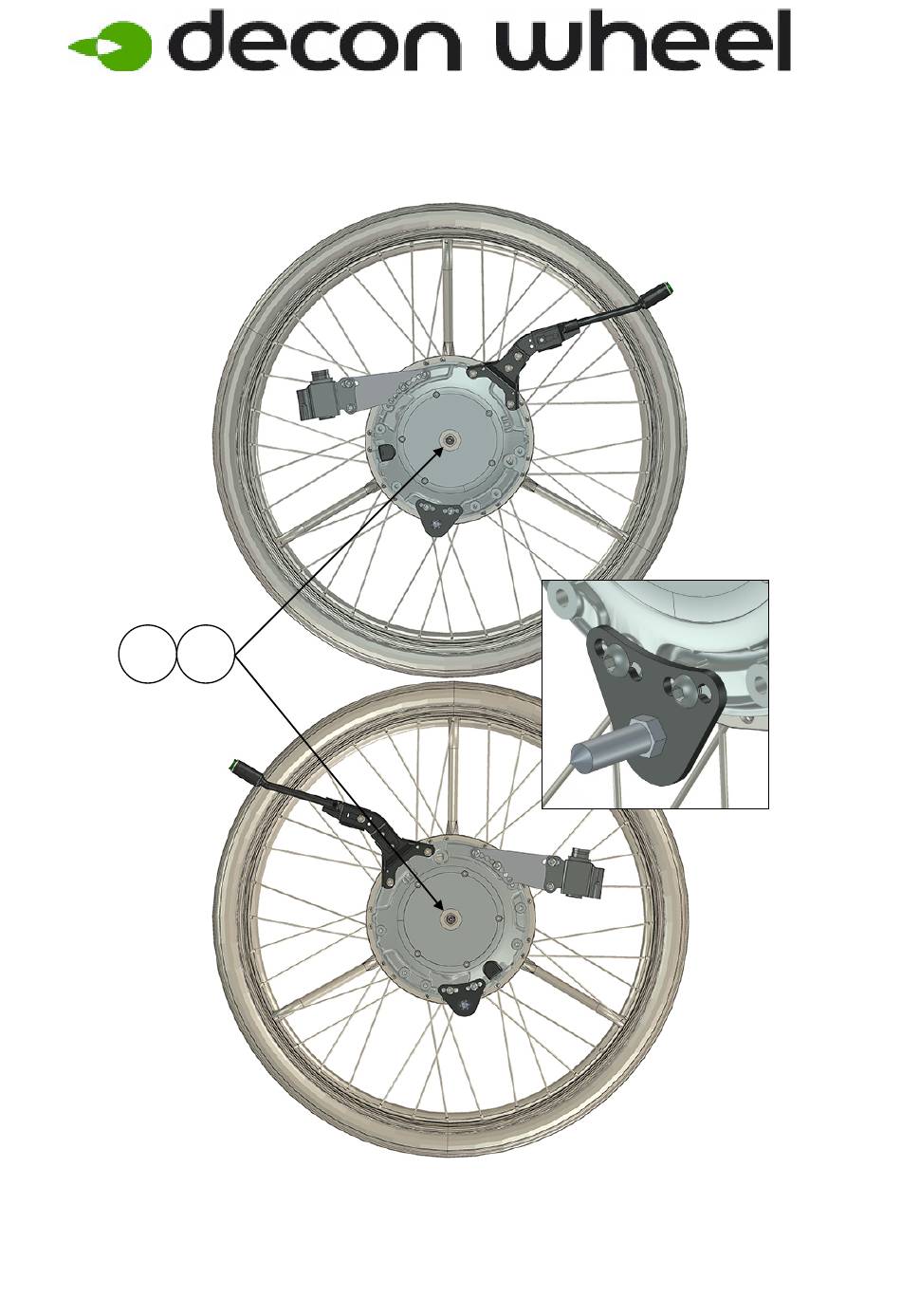

2. Check the correct placement for the eMove with axle Ø12,7 x 51 with
Part number: XOE-2530E-C0 and Spacers with Part number: XOC-25383-00 and Stop
pins are assembled with Part Numbers: 290000, 300001 and XSM8ML.
with Vario-Ax rear axle
MEM6179P and MEM6180P
2019-10-09
Page: 1
