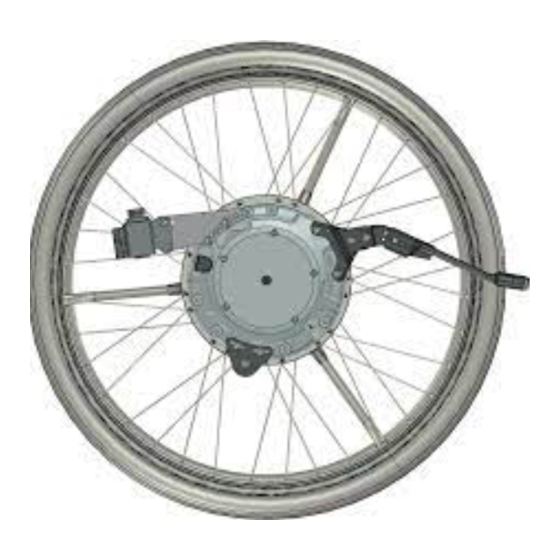

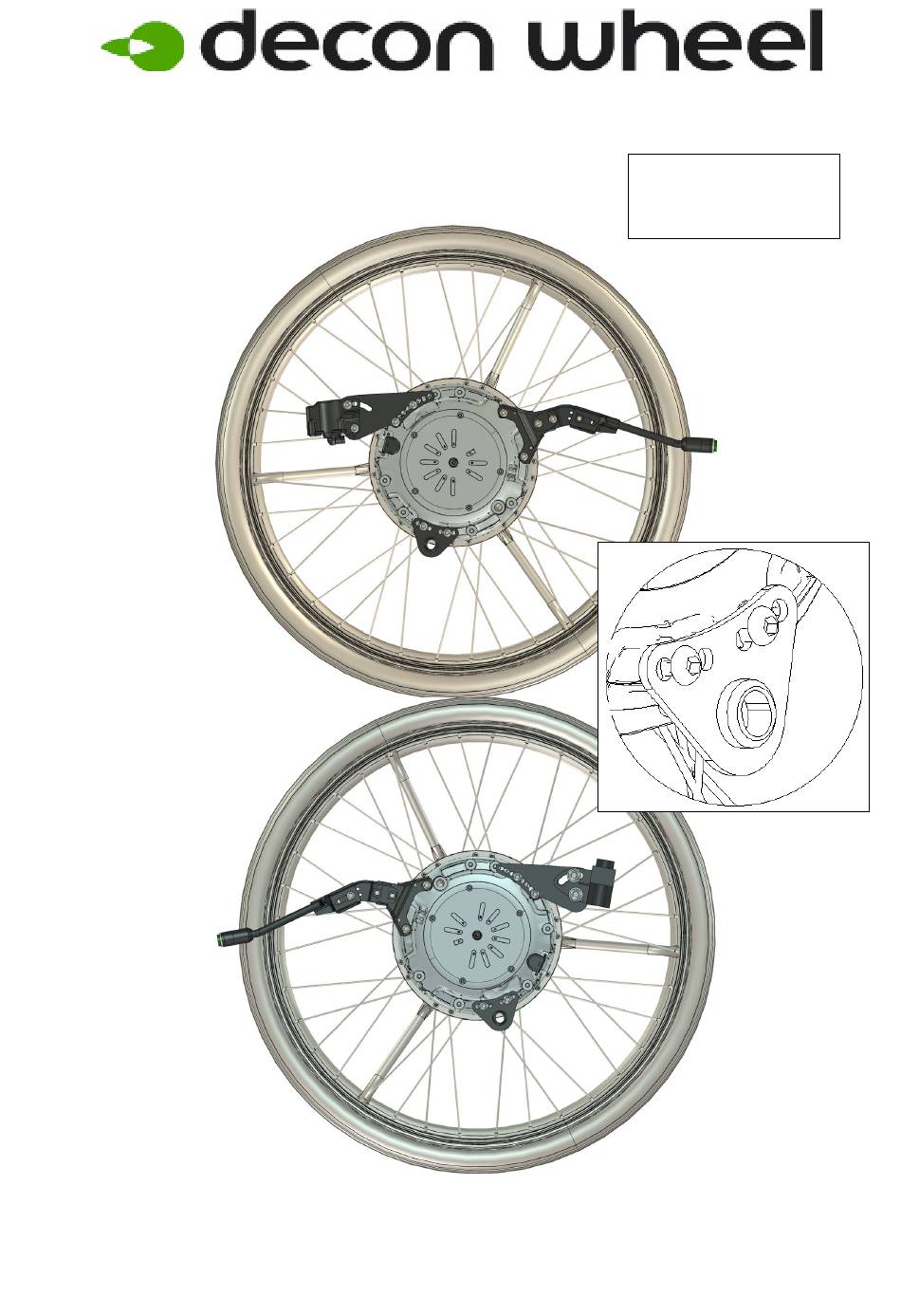

- Page 1 Assembly instructions for Helium, Nitrum With 0° Camber MEM6137 and MEM6138 Only STD rear axle. 1. Remove wheels and Sleeves. Not PRO rear axle or short COG rear axle. 2. Check the correct placement for the eMove and assemble with axle Ø12,7-46 with part number: X0E-2530E-00.
- Page 2 3. Assemble the plate (right side) according to picture. Parts for right side mounting: Item No. Part Number Description HW072 Hub sleeve XSTM6X12 Stop Screw M6 x 12 XSM8X16 Screw : Round - M8 x 16 XOE-22274-1O Bracket Note! If you only order the mounting set, the axle it’s not included, for replacement see the service manual.
- Page 3 4. Assemble the under placed battery bag or if have order a Lithium battery place the battery holder as the picture bellow. Assembly of Battery bracket MEM5015 Item No. Part Number Description MEM5002 Hoop MEM5003 Clamp XSFM5X12 Screw Countersunk M5 x12 XSM5ML Nut Self-Locking M5 XSSM8X16...
