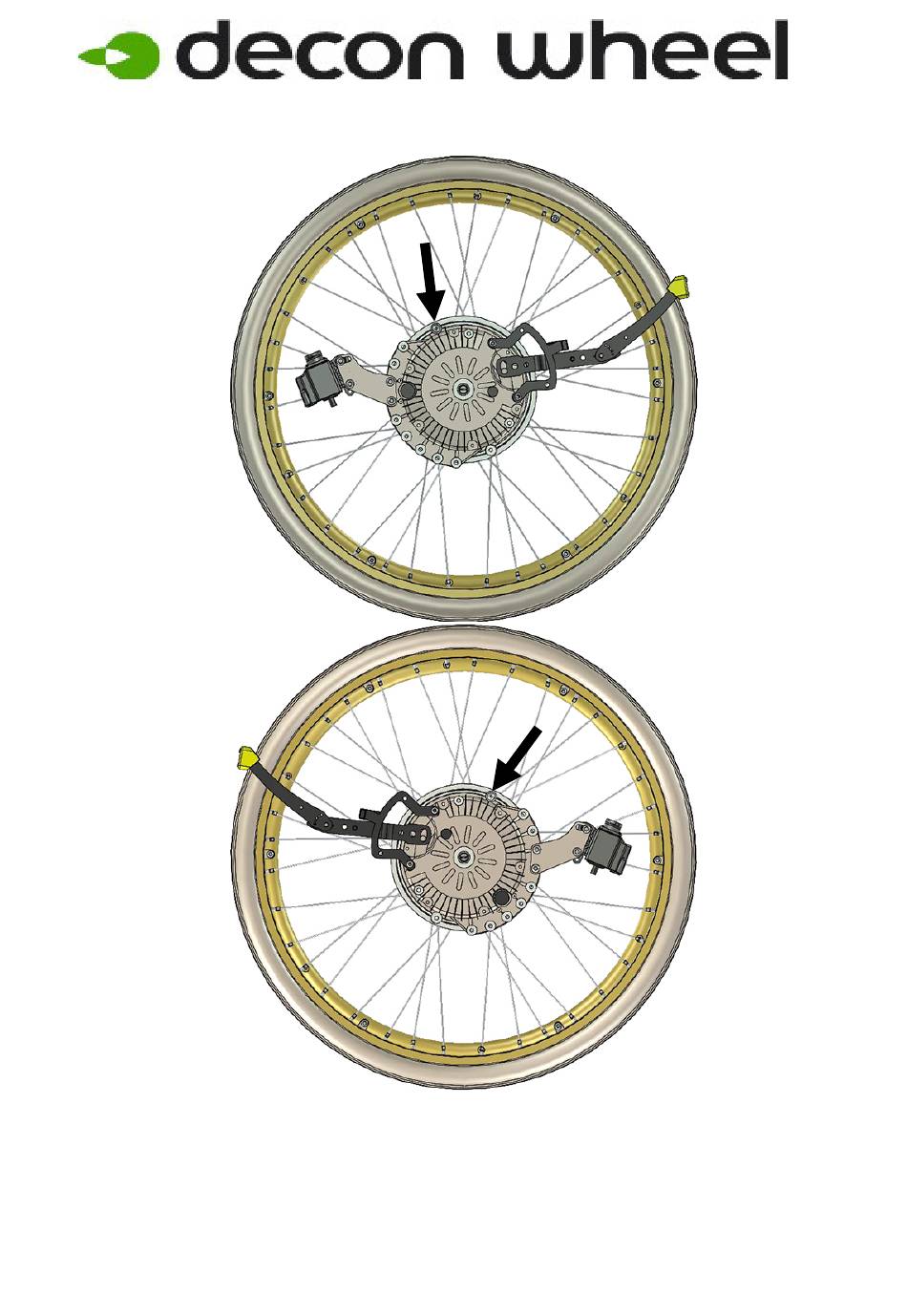

- Page 1 Assembly instructions for SMART f/s MED3175 1. Remove wheels on both sides. 2. Check the correct placement for the 6 mm shorter stop pins and turn the handle upside- down on the E-drive unit, and use the wheelchairs original anti tip devices.
- Page 2 3. Assembly the plate (right side) according to picture. Parts pair mounting set: ITEM PART NUMBER DESCRIPTION MED2000 Bracket 405241 Nordlock Washer M18 HW084 Sleeve 100 400 008 Spacer 100 400 001 Spacer 100 400 016 Spacer XSM8ML Nut Self-Locking M8 XSM8X40 Screw Rounded M8x40 XSM18M...
- Page 3 Joysticks Assembly on armrest with Code 81 Remove screws and demount armrest pad. Remove screws and remove the plate. Assemble the MED1428L/R bracket. Assemble the armrest pad. ITEM PART NUMBER DESCRIPTION MED1428R Joystick Bracket Rightside 2018-06-20...
- Page 4 MED1201 ITEM PART NUMBER DESCRIPTION XSM6TG External Teeth Washer 6,4 X-klamma2 Clamp2 XSM6X16 Screw M6 x 16 XSM6BR Plain Washer 6,4 MED1200 Attendant Control 5. Assemble the attendant control. Brake Assembly for SMARTf Item No. Part Number Description Right brake Right brake NOT INCLUDED 310047 Brake plate...
- Page 5 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
