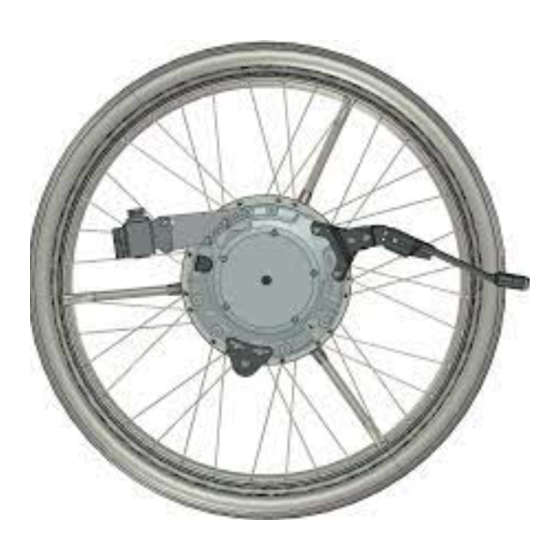

Decon wheel Helium Assembly Instructions

Hide thumbs Also See for Helium:

Table of Contents

Download this manual

Assembly instructions for Helium and Nitrum

2. Check the correct placement for the eMove and assemble with

axle Ø12,7-46 with part number: X0E-2530E-00.

Stop pins are assembled with Part Numbers: 320003.

2022-09-16

With 0° Camber

MEM6137P and MEM6138P

Only STD rear axle.

Not PRO rear axle or

short COG rear axle.

1(4)

Table of Contents

Do you have a question about the Helium and is the answer not in the manual?

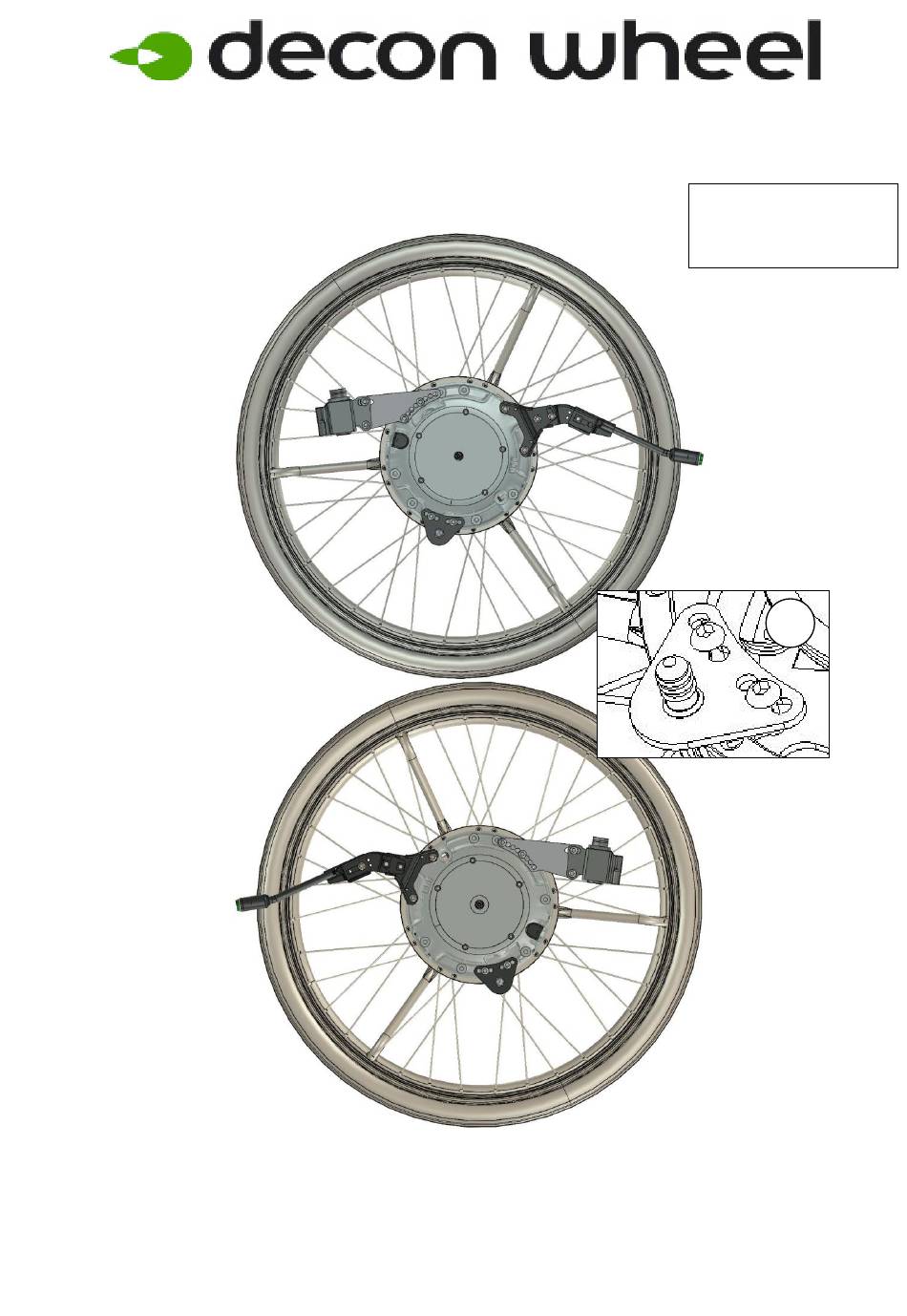

Page 1 Assembly instructions for Helium and Nitrum With 0° Camber MEM6137P and MEM6138P 1. Remove wheels and sleeves. Only STD rear axle. Not PRO rear axle or short COG rear axle. 2. Check the correct placement for the eMove and assemble with axle Ø12,7-46 with part number: X0E-2530E-00.
Page 2 3. Assemble the plate (right side) according to picture. Parts for right side mounting: Item No. Part Number Description HW072 Hub sleeve XSTM6X12 Stop Screw M6 x 12 XSM8X16 Screw : Round - M8 x 16 310031 Bracket 320003 Stop Pin Note! If you only order the mounting set, the axle it’s not included, for replacement see the service manual.
Page 3 Assembly of Battery bracket MEM5015 Item No. Part Number Description MEM5002 Hoop MEM5003 Clamp XSFM5X12 Screw Countersunk M5 x12 XSM5ML Nut Self-Locking M5 XSSM8X16 Bolt Round-Square M8 x16 XSM8ML Nut Self-Locking M8 MED5001 Rev3 Battery plate eDrive/ eMove XSFM6X16 Screw Countersunk M6 x16 XSM6ML Nut Self-Locking M6 MEM5011...
Page 4 Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Hubsleever. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1 40 Nm 2022-09-16...
