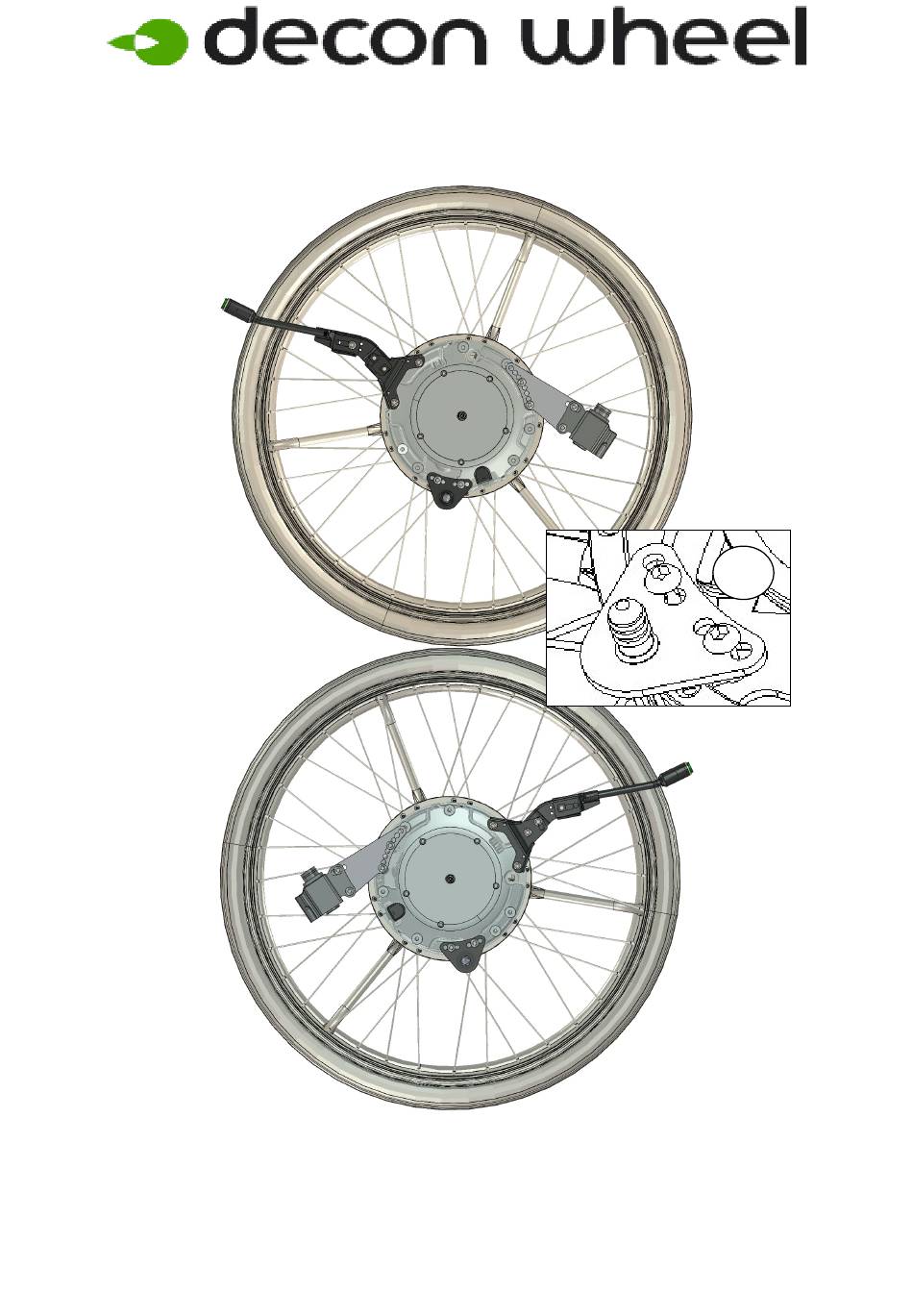

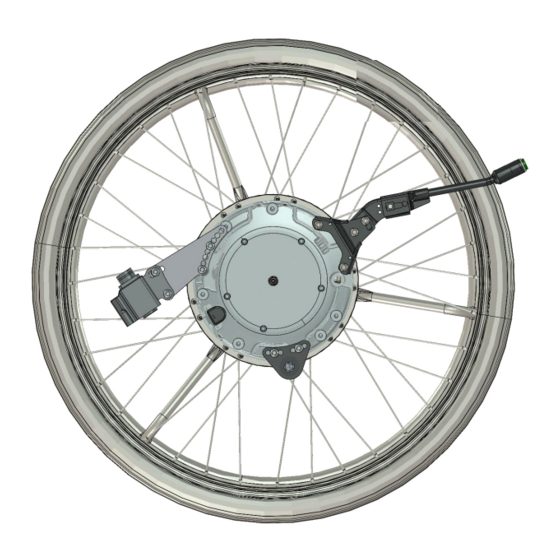

Assembly instructions for TNS Notos.
1. Remove wheels and sleeves on both sides.
2. Check the correct placement for the eMove, and that it is axle Ø12,7 x 46 with
Part Number: XOE-2530E-00 and Stop pins are assembled with Part Number:
320003.
MEM6409P and MEM6410P
13
2021-01-22
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Decon wheel TNS Notos
Summary of Contents for Decon wheel TNS Notos
- Page 1 Assembly instructions for TNS Notos. MEM6409P and MEM6410P 1. Remove wheels and sleeves on both sides. 2. Check the correct placement for the eMove, and that it is axle Ø12,7 x 46 with Part Number: XOE-2530E-00 and Stop pins are assembled with Part Number: 320003.
- Page 2 3. Assembly of the plate according to picture. Parts for right side mounting: Item No. Part Number Description XSM6ML Locknut M6 405239 Nordlock Washer 100 400 004 Spacer XSM8ML Locknut M8 XSM8X20 Screw M8x20 HW069 Sleeve 100 400 039 Spacer 100 400 020 Spacer 310022...
- Page 3 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsa. Sleeve. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
