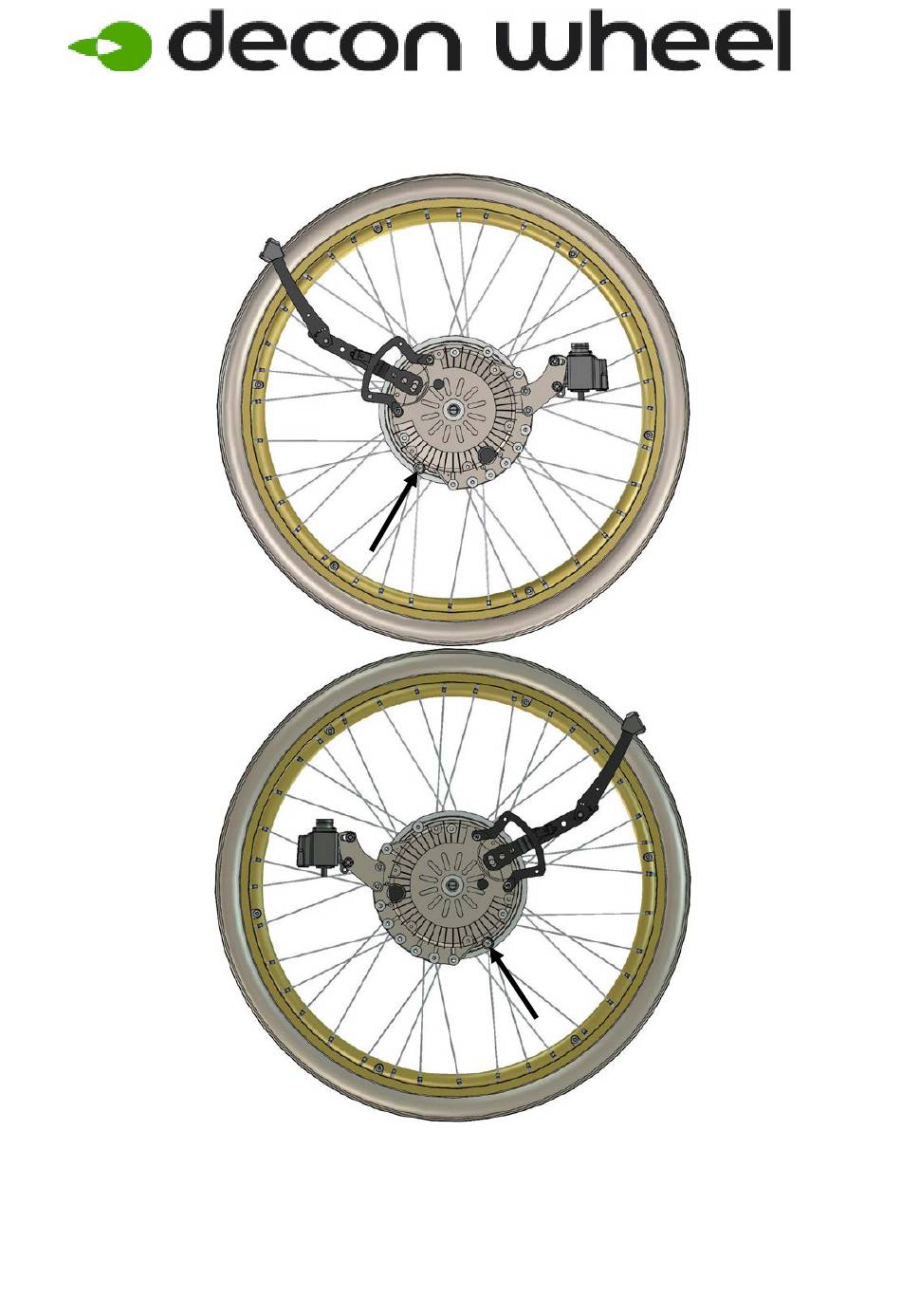

- Page 1 Assembly instructions for R82 Combi frame x MED3145 1. Remove wheels on both sides. 2. Check the correct placement for the stop pin, and that the anti-tip devices and Battery box are removed. 2018-01-23...
- Page 2 3. Assembly the plate (right side) according to picture. 4. Parts pair mounting set: Item No. Part Number Description XSM18M Nut M18 x1 low 405241 Nordlock M18 Washer 100 400 020 Spacer XSM18BR Washer M18 XSM6X30 Screw Round M6 x 30 HW056 Sleeve MED 2004...
- Page 3 MED1204 User control with Joystick controller 7. Assemble the joystick control handle. Place the bracket 1 into the aluminum tube on the side you want to place the joystick. Item No. Part Number Description MED1203 Bracket plate 100 400 039 Spacer XSM6BR Washer Plain M6...
- Page 4 MED1202 Attendant control with Attendant controller 8. Assemble the attendant control. Item No. Part Number Description MED1200 Assistant controller 91312-06050 Screw Socket M6 x 50 92902-06200 Washer Plain M6 XA2-2612E-00 Clamp XOD-2612K-00 Clamp2 2018-01-23...
- Page 5 MED1356 Attendant control with Joystick controller 9. Assemble the attendant control with the joystick unit, see the pictures. Item No. Part Number Description MED1317 Bracket MC6SM6X35 Screw M6 x 35 XSM6X16 Screw M6 x 16 XSM6BR Plain Washer M6 XSM6ML Locknut M6 MED1316 Plate with pin...
