- Page 1 Hardware Manual: NTAG I C plus Explorer Kit OM5569/NT322E BL ID Doc Rev 1.00 Approved — 2015.09.01 Document information Info Content Author Pavel Slamnik Author Role Design Engineer Keywords NTAG I2C plus Explorer Kit OM5569-NT322E, RFID, NFC, TAG, NTAG...
- Page 2 First Version Pavel Slamnik Copyright: @2009, NXP Semiconductors The information contained herein is the exclusive and confidential property of NXP Semiconductors and, except as otherwise indicated, shall not be disclosed or reproduced in whole or in part. SRS Template_vs 1.0 public ©...

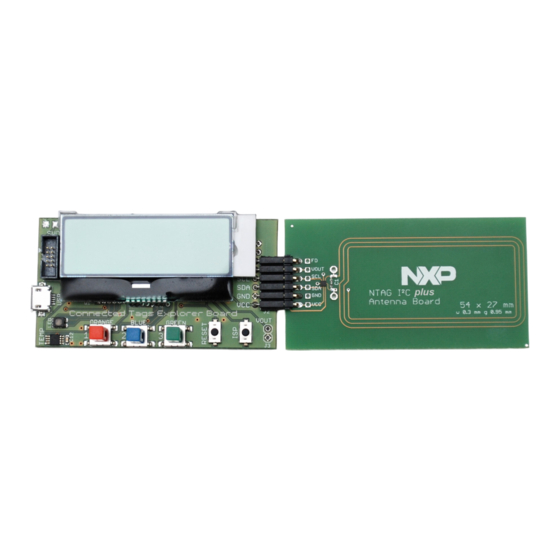

- Page 3 Hardware Manual BL ID Project Name: Integration Manual Project ID: 62743 1. NTAG I C plus Explorer Kit OM5569/NT322E: Photo Figure 1: NTAG I C plus Explorer Kit OM5569/NT322E – Connected Tags Explorer Board with NTAG I C plus Antenna Board 54 x 27mm (pcb type). Figure 2: Connected Tags Explorer Board OM5569, Rev 2.0.
- Page 4 Hardware Manual BL ID Project Name: Integration Manual Project ID: 62743 Figure 3: NTAG I C plus Antenna Board OM5569/NT322E, 54 x 27 mm. SRSt Template 1.0 public © NXP B.V. 2015. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 2015.09.01 4 of 18...
- Page 5 Hardware Manual BL ID Project Name: Integration Manual Project ID: 62743 2. NTAG I C plus Explorer Kit OM5569/NT322E: Description 2.1. Operational desription To demonstrate the unique properties of the NTAG I C tag chip, NXP developed the NTAG C plus Explorer Kit OM5569/NT322E which consists from Connected Tags Explorer Board OM5569 and one NTAG I C plus Antenna Board OM5569/NT322E (54 x 27 mm ).
- Page 6 Hardware Manual BL ID Project Name: Integration Manual Project ID: 62743 Figure 4: Connected Tags Explorer board with NTAG I C plus Antenna Board 54 x 27 mm. Figure 5: Connected Tags Explorer Board with NTAG I C plus Antenna Board and NFC device –...
- Page 7 Hardware Manual BL ID Project Name: Integration Manual Project ID: 62743 Figure 6: Connected Tags Explorer Board Rev. 2.0 with NTAG I C plus Antenna Board – Block diagram. SRSt Template 1.0 public © NXP B.V. 2015. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved —...
- Page 8 Hardware Manual BL ID Project Name: Integration Manual Project ID: 62743 Figure 7: Connected Tags Explorer Board OM5569, Rev. 2.0: dimensions and equipped pcb with connectors. SRSt Template 1.0 public © NXP B.V. 2015. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved —...
- Page 9 Hardware Manual BL ID Project Name: Integration Manual Project ID: 62743 Figure 8: NTAG I C plus Antenna Board OM5569/NT322E, 54 x 27mm, Rev. 2.0: dimensions and equipped pcb with connector. SRSt Template 1.0 public © NXP B.V. 2015. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved —...
- Page 10 Hardware Manual BL ID Project Name: Integration Manual Project ID: 62743 3. NTAG I C plus Expolorer Kit OM5569/NT322E: SPECIFICATION 3.1. Connected Tags Explorer Board OM5569: Specifications Table 1: Connected Tags Explorer Board OM5569, Rev. 2.0 – specifications: Low Power Microcontroller LPC11U24 (Cortex - M0) Oscillator Internal oscillator (in LPC11U24) up to 12 MHz, Quartz 12 MHz...
-
Page 11: Operating Range
Hardware Manual BL ID Project Name: Integration Manual Project ID: 62743 3.2. Connected Tags Explorer Board OM5569, Rev. 2.0: Electrical characteristics Table 2: Connected Tags Explorer Board OM5569, Rev. 2.0 – electrical characteristics: Operating Range Symbol Description Conditions Unit DC Power Supply (from NTAG Active (on NTAG I2C NTAG I2C tag ic) Antenna Board) -
Page 12: Specifications
Hardware Manual BL ID Project Name: Integration Manual Project ID: 62743 3.3. NTAG I C Antenna Board OM5569/NT322E, Rev 2.0 (54 x 27 mm) – specifications Table 3: NTAG I C plus Antenna Board OM5569/NT322E, Rev 2.0 (54 x 27 mm) – specifications: Antenna PCB type, 54 mm x 27 mm... -
Page 13: Power Supply
Hardware Manual BL ID Project Name: Integration Manual Project ID: 62743 4. INSTALLING MANUAL 4.1. Desktop use NTAG I²C plus Explorer Kit OM5569/NT322E consists from Connected Tags Explorer Board OM5569 with NTAG I C plus Antenna Board OM5569/NT322E 54 x 27 mm. It is intended for development use in development environment such are development departements in factories, at institutes, etc. - Page 14 Hardware Manual BL ID Project Name: Integration Manual Project ID: 62743 5. USER MANUAL The NTAG I²C plus Explorer Kit is developed to demonstrate the unique properties of the NTAG I²C tag chip. The NTAG I²C plus Explorer Kit consists from two boards: Connected Tags Explorer Board and NTAG I²C plus Antenna board.
-
Page 15: General Functions
Hardware Manual BL ID Project Name: Integration Manual Project ID: 62743 5.2. General functions Reading/writing to/from NTAG I C tag ic is possible with NFC mobile phone with android application. Explorer Board with NTAG I C plus Antenna Board can communicate with NFC mobile phone in distance up to 30 mm from the center of the NTAG I C plus Antenna Board to the center of phone NFC antenna. -
Page 16: Electromagnetic Compatibility
Hardware Manual BL ID Project Name: Integration Manual Project ID: 62743 6. ELECTROMAGNETIC COMPATIBILITY NTAG I²C plus Explorer Kit fulfils the following requirements of electromagnetic compatibility: FCC, Part 15. FCC Compliance Statement 6.5.1. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 17 Hardware Manual BL ID Project Name: Integration Manual Project ID: 62743 COMPLIANCE INFORMATION according to 47CFR 2.1033 6.5.2. We, declare that the product NTAG I²C plus Explorer Kit OM5569/NT322E FCC 12.225, FCC ID: OWROM5569-NT322E is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following conditions: (1) this device may not cause harmful interference (2) this device must accept any interference received, including interference that may...
-
Page 18: Warranty, Limitations Of Liability
Hardware Manual BL ID Project Name: Integration Manual Project ID: 62743 WARRANTY, LIMITATIONS OF LIABILITY WARRANTY POLICY Manufacturer warrants that any product (“Product“) sold by Manufacturer to an end user (“User”) shall be free of defects in material and workmanship for a period a one year (or other period if specified) from date of sale by Manufacturer.
