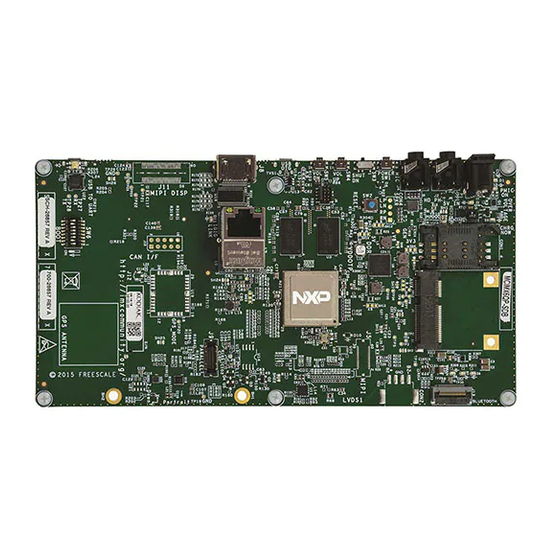

NXP Semiconductors
Document identifier: IMXBSPPG
User's Guide
Rev. L5.4.70_2.3.0, 31 December 2020
i.MX Porting Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i.MX 6 and is the answer not in the manual?

Questions and answers

Related Manuals for NXP Semiconductors i.MX 6

Summary of Contents for NXP Semiconductors i.MX 6

  • Page 1 NXP Semiconductors Document identifier: IMXBSPPG User's Guide Rev. L5.4.70_2.3.0, 31 December 2020 i.MX Porting Guide...

  • Page 2: Table Of Contents

    NXP Semiconductors Contents Chapter 1 Introduction................... 7 1.1 Introduction..........................7 1.2 References..........................7 Chapter 2 Porting Kernel..................9 2.1 Introduction..........................9 2.1.1 How to build and load Kernel in standalone environment............9 2.1.2 How to build and load Kernel in Yocto Project................11 Chapter 3 Porting U-Boot..................12...
  • Page 3 12.2 Enabling an LVDS channel with LDB..................39 12.3 LDB ports on i.MX 6......................40 12.3.1 LDB on i.MX 6 for input parallel display ports................. 40 12.3.2 LDB on i.MX 6 Output LVDS ports..................41 Chapter 13 Connecting MIPI-DSI Panel.............. 42 13.1 Introduction..........................42...
  • Page 4 NXP Semiconductors Contents 16.1.1 Porting the reference BSP to a custom board (audio codec is the same as in the reference design)............................56 16.1.2 Porting the reference BSP to a custom board (audio codec is different from the reference design)............................56 Chapter 17 Porting HiFi 4..................
  • Page 5 NXP Semiconductors Figures Figure 1. Booting flow on i.MX 6 and i.MX 7..........................21 Figure 2. Booting flow on i.MX 8..............................22 Figure 3. Example of TZASC configuration for i.MX 6UL......................25 Figure 4. i.MX 6 LVDS Display Bridge (LDB) block........................40 Figure 5.
  • Page 6 NXP Semiconductors Tables Table 1. DDR memory assignment..............................29 Table 2. FlexSPI memory assignment............................30 Table 3. Settings for Test Mode..............................44 Table 4. Required functions................................. 46 Table 5. CSI0 parallel interface signals............................52 Table 6. Required power supplies............................... 56 Table 7. Files for wm8962 codec support............................ 57 Table 8.

  • Page 7: Chapter 1 Introduction

    Release Notes describes which SoC is supported in the current release. Some previously released SoCs might be buildable in the current release but not validated if they are at the previous validated level. • i.MX 6 Family: 6QuadPlus, 6Quad, 6DualLite, 6SoloX, 6SLL, 6UltraLite, 6ULL, 6ULZ • i.MX 7 Family: 7Dual, 7ULP •...
  • Page 8 8M Plus Evaluation Kit Quick Start Guide (IMX8MPLUSQSG) • i.MX 8DXL Multisensory Enablement Kit Quick Start Guide (IMX8DXLUSQSG) Documentation is available online at nxp.com. • i.MX 6 information is at nxp.com/iMX6series • i.MX SABRE information is at nxp.com/imxSABRE • i.MX 6UltraLite information is at nxp.com/iMX6UL...

  • Page 9: Chapter 2 Porting Kernel

    SDK. The default location is but can be placed anywhere on the host /opt machine. Arm-v7A (32-bit) and Arm-v8A (64-bit) toolchain script and environment are as follows: • i.MX 6 Toolchain : environment-setup-cortexa9hf-vfp-neon-poky-linux-gnueabi Linux_Config: imx_v7_defconfig ARCH=arm CROSS_COMPILE=arm-poky-linux-gnueabi- •...
  • Page 10 The environment variables are created in the terminal window after running the script. environment-setup-<toolchain> See the information above for i.MX 6, i.MX 7, and i.MX 8 toolchains. $ source <toolchain install directory>/environment-setup-<toolchain script> Example for i.MX 8: $ source /opt/fsl-imx-wayland/environment-setup-aarch64-poky-linux...

  • Page 11: How To Build And Load Kernel In Yocto Project

    NXP Semiconductors Porting Kernel To flash the device trees generated from the build, execute the following commands: $ sudo dd if=<DevicetreeName>.dtb of=/dev/sd<partition> bs=512 seek=20480 conv=fsync NOTE For i.MX 8QuadMax and i.MX 8QuadXPlus, the kernel image and DTB need to be flashed after the first 6 MB of the SD card.

  • Page 12: Chapter 3 Porting U-Boot

    On the host machine, set the environment with the following command before building for i.MX 8 SoC. $ source/opt/fsl-imx-xwayland/5.4.47/environment-setup-aarch64-poky-linux $ export ARCH=arm64 b. On the host machine, set the environment with the following command before building for i.MX 6 or i.MX 7 SoC. $ export CROSS_COMPILE=/opt/fsl-imx-fb/5.4.47/environment-setup-cortexa9hf-vfp-neon-poky- linux-gnueabi $ export ARCH=arm c.

  • Page 13: How To Build And Load U-Boot In Yocto Project

    Where: • offset is: — 1 - for i.MX 6 or i.MX 7 — 33 - for i.MX 8QuadMax A0, i.MX 8QuadXPlus A0, i.MX 8M Quad, i.MX 8M Mini — 32 - for i.MX 8QuadXPlus B0, i.MX 8QuadMax B0, i.MX 8DXL, i.MX 8M Nano, and i.MX 8M Plus •...

  • Page 14: Customizing The I.mx Custom Board Code

    Before initializing the memory interface, configure the relevant I/O pins with the right mode and impedance, and then initialize the MMDC module. For how to generate calibration parameters for DDR, see i.MX 6 Series DDR Calibration (AN4467). Users can also use the DDR script Aid and DDR stress tools in i.MX Design and Tool Lists...
  • Page 15 NXP Semiconductors Porting U-Boot Reset cause: POR Board: MX6Q-Sabreauto revA I2C: ready DRAM: 2 GiB PMIC: PFUZE100 ID=0x10 NAND: 0 MiB MMC: FSL_SDHC: 0, FSL_SDHC: 1 No panel detected: default to Hannstar-XGA Display: Hannstar-XGA (1024x768) serial Out: serial Err: serial...
  • Page 16 NXP Semiconductors Porting U-Boot The following message should be displayed on the console if the custom board is based on the i.MX 8M Quad EVK board: U-Boot SPL 2017.03-imx_v2017.03_4.9.51_imx8m_ga+gb026428 (Mar 01 2018 - 03:15:20) PMIC: PFUZE100 ID=0x10 start to config phy: p0=3200mts, p1=667mts with 1D2D training...

  • Page 17: Adding New Driver Initialization Code To Board Files

    NXP Semiconductors Porting U-Boot 3.2.3 Adding new driver initialization code to board files The following steps describe how to add a new driver and how to initialize the code. 1. Find mx<customer_board>.c board/freescale/mx<customer_board>/ 2. Edit and add new driver initialization code, including clock, IOMUX, and GPIO.

  • Page 18: Debugging

    1. Make sure that the JTAG tool supports Arm Cortex -A9 cores on i.MX 6, Arm Cortex-A7 cores on i.MX 7Dual and 6UltraLite, Arm Cortex-A53/A72 on i.MX 8QuadMax, and Arm Cortex-A35 on i.MX 8QuadXPlus. It is recommended to use TRACE32.

  • Page 19: Chapter 4 Porting System Controller Firmware

    NXP Semiconductors Chapter 4 Porting System Controller Firmware 4.1 Introduction The System Controller is supported through a firmware also known as SCFW flashed into the boot image on SoC in the i.MX 8 and i.MX 8X families. Each release provides a System Controller Firmware porting kit, which includes a porting guide document.

  • Page 20: Chapter 5 Configuring Op-Tee

    TEE GlobalPlatform specifications can be found at https://globalplatform.org/specs-library/. 5.2 Boards supported All the i.MX 6, 7, and 8 boards support OP-TEE. Some support the same OP-TEE flavor for multiple boards like the i.MX 6ULL EVK and i.MX 6ULZ EVK. 5.3 OP-TEE booting flow Booting flow on i.MX 6 and i.MX 7 (Arm V7):...

  • Page 21: Figure 1. Booting Flow On I.mx 6 And I.mx 7

    NXP Semiconductors Configuring OP-TEE Figure 1. Booting flow on i.MX 6 and i.MX 7 Booting flow on i.MX 8 (Arm V8) Files and binaries required in the boot partition: • flash.bin: Fit image containing U-Boot and the ATF • zImage: Kernel image •...

  • Page 22: Op-Tee Linux Support

    = "linaro, optee-tz"; method = "smc"; This node is added by OP-TEE OS for i.MX 6, i.MX 7, and i.MX 7ULP, and added by U-Boot on i.MX 8M Mini, i.MX 8M Nano, and i.MX 8M Plus. 5.5 Memory protection OCRAM protection OCRAM stands for On-Chip RAM.
  • Page 23 NXP Semiconductors Configuring OP-TEE power management features, such as suspending or CPU idle. Therefore, OP-TEE needs to allocate a secure area in the OCRAM to execute its own power management code. This can be done by configuring the IOMUXC_GPR registers. The lower part is set to non-secure and the upper part is set to secure.
  • Page 24 NXP Semiconductors Configuring OP-TEE hardcoded: CFG_TZDRAM_START and CFG_TZDRAM_SIZE. These values are added in the device tree by OP-TEE OS after its initialization: /sys/firmware/devicetree/base/reserved-memory/ optee_core@<some_address> optee@<some address> The optee_core address belongs to the OP-TEE firmware. Any reading or writing from the normal world will result in a crash. The OP-TEE address is the shared memory between Linux OS and OP-TEE.

  • Page 25: How To Compile Op-Tee

    • On i.MX 8M Quad, i.MX 8M Mini, i.MX 8M Nano, and i.MX 8M Plus Similarly to i.MX 6 and i.MX 7 families, the TZASC enablement is done by setting a TZASC_EN bit in IOMUXC_GPR10. In mscale family, this bit is not a "one time write" type and TZASC_EN_LOCK must be programmed to avoid unintended disable operation.

  • Page 26: Adding Op-Tee Support For A New Board

    NXP Semiconductors Configuring OP-TEE Flash the SD card: $ cd tmp/deploy/images/<platform>/ $ bzip2 -d tmp/deploy/images/<platform>/imx-image-multimedia*.wic.bz2 $ sudo dd if=imx-image-multimedia*.wic of=/dev/sd<partition> bs=1M && sync Run the test suite to check if optee is operational: $ root@imx: xtest Another way to compile OP-TEE is to use .
  • Page 27 NXP Semiconductors Configuring OP-TEE Specify the Linux entry address, the device tree address, and the DDR size. ifneq (,$(filter $(PLATFORM_FLAVOR),mx*)) CFG_DT ?= y CFG_NS_ENTRY_ADDR ?= CFG_DT_ADDR ?= CFG_DDR_SIZE ?= CFG_PSCI_ARM32 ?= y CFG_BOOT_SYNC_CPU = * CFG_BOOT_SECONDARY_REQUEST = * endif In plat-imx/sub.mk, define the Arm processor (Cortex A7 or A9) if the SoC is an Arm V7.

  • Page 28: Chapter 6 Configuring Arm Trusted Firmware

    NXP Semiconductors Chapter 6 Configuring Arm Trusted Firmware 6.1 Introduction Arm Trusted Firmware (ATF) is required for all i.MX 8 boards. ATF might need some customization on new boards. ATF currently partitions non-secure resources for the OS partition before launching. When porting to a new board, ATF must be modified for the intended partitioning of system resources with System Controller Firmware.

  • Page 29: Chapter 7 Memory Assignment

    NXP Semiconductors Chapter 7 Memory Assignment 7.1 Introduction On i.MX 8QuadMax, i.MX 8QuadXPlus, and i.MX 8DXL, SCFW provides partition concept to divide resources. The memory is divided into several regions and can only be accessed by particular software modules with corresponding security mode.

  • Page 30: Table 2. Flexspi Memory Assignment

    NXP Semiconductors Memory Assignment Table 1. DDR memory assignment (continued) Memory Type Start Partition Reservation Code 0x88000000 #define BOOTAUX_RESER VED_MEM_SIZE 0x08000000 0x90000000 0xFDFFFFFF Non-secure OS 0xFE000000 0xFFBFFFFF Secure ATF Reserved by ATF mx8_partition for OPTEE _resources 0xFFC00000 0xFFFFFFFF Non-secure OS...
  • Page 31 NXP Semiconductors Memory Assignment rpmsg_dma_reserved:rpmsg_dma@0x90400000 { compatible = "shared-dma-pool"; no-map; reg = <0 0x90400000 0 0x1C00000>; decoder_rpc: decoder_rpc@0x92000000 { no-map; reg = <0 0x92000000 0 0x200000>; encoder_rpc: encoder_rpc@0x92200000 { no-map; reg = <0 0x92200000 0 0x200000>; dsp_reserved: dsp@0x92400000 { no-map;...

  • Page 32: Chapter 8 Configuring Iomux

    NXP Semiconductors Chapter 8 Configuring IOMUX 8.1 Introduction Before using the i.MX pins (or pads), select the desired function and correct values for characteristics such as voltage level, drive strength, and hysteresis. You can configure a set of registers from the IOMUX controller.

  • Page 33: Using Iomux In The Device Tree - Example

    NXP Semiconductors Configuring IOMUX 8.1.2 Using IOMUX in the Device Tree - example The following example shows how to use IOMUX in the Device Tree. usdhc@0219c000 { /* uSDHC4 */ fsl,card-wired; vmmc-supply = <&reg_3p3v>; status = "okay"; pinctrl-names = "default";...

  • Page 34: Chapter 9 Uart

    NXP Semiconductors Chapter 9 UART 9.1 Introduction UART is enabled by default. The default UART is configured as follows: • Baud rate: 115200 • Data bits: 8 • Parity: None • Stop bits: 1 • Flow control: None i.MX Porting Guide , Rev. L5.4.70_2.3.0, 31 December 2020...

  • Page 35: Chapter 10 Adding Sdhc

    NXP Semiconductors Chapter 10 Adding SDHC 10.1 Introduction uSDHC has 14 associated I/O signals.The following list describes the associated I/O signals. Signal overview • The SD_CLK is an internally generated clock used to drive the MMC, SD, and SDIO cards.
  • Page 36 NXP Semiconductors Adding SDHC status = "disabled"; For more information, see: The binding document at linux/Documentation/devicetree/bindings/mmc/fsl-imx-esdhc.txt arch/arm/boot/dts/imx6ul.dtsi arch/arm/boot/dts/imx6ul-14x14-evk.dts arch/arm/boot/dts/imx6qdl.dtsi arch/arm/boot/dts/imx6qdl-sabresd.dtsi Support of SD3.0 SD3.0 requires 3.3 V and 1.8 V for signal voltage. Voltage selection needs to be implemented on your platform.

  • Page 37: Chapter 11 Configuring Spi Nor

    11.1.2 Changing the SPI interface configuration The i.MX 6 SoC has five ECSPI interfaces. The i.MX 7Dual SoC has four ECSPI interfaces. The i.MX 8QuadMax/8QuadXPlus has four LPSPI interfaces. By default, the BSP configures ECSPI-1 interface in master mode to connect to the SPI NOR Flash.

  • Page 38: Hardware Operation

    NXP Semiconductors Configuring SPI NOR 11.1.3 Hardware operation SPI NOR Flash is SPI compatible with frequencies up to 66 MHz. The memory is organized in pages of 512 bytes or 528 bytes. SPI NOR Flash also contains two SRAM buffers of 512/528 bytes each, which allows data reception while a page in the main memory is being reprogrammed.

  • Page 39: Chapter 12 Connecting Lvds Panel

    6 with IPU and i.MX 8QuadMax, i.MX 8QuadXPlus, and i.MX 8M Plus support the LVDS display interfaces. The implementationn of the LVDS is a DRM driver for i.MX 8 and framebuffer driver for i.MX 6. The LVDS connects to a LVDS Display bridge (LBB), which is configured as a DRM LDB driver for i.MX 8 and a framebuffer driver for i.MX 6.

  • Page 40: Ldb Ports On I.mx 6

    • Control signals to configure LDB parameters and operations • Clocks from the SoC PLLs 12.3.1 LDB on i.MX 6 for input parallel display ports The LDB is configurable to support either one or two (DI0, DI1) parallel RGB input ports. The LDB only supports synchronous access mode.

  • Page 41: Ldb On I.mx 6 Output Lvds Ports

    • For single-channel output: up to 85 MHz per interface (such as WXGA-1366 x 768 at 60 Hz + 35% blanking). 12.3.2 LDB on i.MX 6 Output LVDS ports The LDB has two LVDS channels, which are used to communicate RGB data and controls to external LCD displays either through the LVDS interface or through LVDS receivers.

  • Page 42: Chapter 13 Connecting Mipi-Dsi Panel

    NXP Semiconductors Chapter 13 Connecting MIPI-DSI Panel 13.1 Introduction The MIPI DSI support on i.MX 8 is enabled through the device trees located in the kernel source in arch/arm64/boot/dts/ . For more information about MIPI-DSI, see the MIPI-DSI section in the Video chapter in Display Interfaces. MIPI-DSI freescale on i.MX with IPU is supported with Synopsys hardware while i.MX 8 uses the Mixel and the Advantec panel.

  • Page 43: Chapter 14 Supporting Cameras With Csi

    The camera sensor is support on all i.MX but configured using different capture controllers. For more information, see the "Capture i.MX Linux Reference Manual (IMXLXRM). For i.MX 6 with IPU, the CSI interface Overview" section in the ‘Video“ chapter in the is through the IPU, but on other parts, the Parallel CSI driver is available to support the CSI interface.

  • Page 44: Configuring The Csi Unit In Test Mode

    NXP Semiconductors Supporting Cameras with CSI CSI0 is used as a parallel sensor input interface. CSI1 is used as a MIPI sensor input interface. 14.1.3 Configuring the CSI unit in test mode This section uses the test mode for its example scenario of a new camera driver that generates a chess board.

  • Page 45: Adding A Camera Sensor Entry In Kconfig

    NXP Semiconductors Supporting Cameras with CSI 14.2.1 Adding a camera sensor entry in Kconfig Select specific camera drivers in the following location (as shown in the following figure): Device Drivers > Multimedia support > Video capture adapters V4L platform devices > MXC Video For Linux Camera >...

  • Page 46: Table 4. Required Functions

    NXP Semiconductors Supporting Cameras with CSI NOTE Before connecting a camera sensor to the i.MX 6Dual/6Quad/6Solo/6DualLite board, check whether the sensor is powered with the proper supply voltages and whether the sensor data interface has the correct VIO value. Power supply mismatches can damage either the CMOS or the i.MX 6Dual/6Quad/6Solo/6DualLite.

  • Page 47: Adding A Compilation Flag For The New Camera

    NXP Semiconductors Supporting Cameras with CSI The following ioctl function references are included: static struct v4l2_int_slave ipuv3_csi0_chess_slave = { .ioctls = ipuv3_csi0_chess_ioctl_desc, .num_ioctls = ARRAY_SIZE(ipuv3_csi0_chess_ioctl_desc), static struct v4l2_int_device ipuv3_csi0_chess_int_device = { .type = v4l2_int_type_slave, static int ipuv3_csi0_chess_probe(struct i2c_client *client,const struct i2c_device_id *id) retval = v4l2_int_device_register(&ipuv3_csi0_chess_int_device);...

  • Page 48: Using The I C Interface

    NXP Semiconductors Supporting Cameras with CSI 14.3 Using the I C interface Many camera sensor modules require a synchronous serial interface for initialization and configuration. This section uses the file as its example code. This file contains a driver linux/drivers/media/video/mxc/capture/ov5642.c that uses the I C interface for sensor configuration.

  • Page 49: Loading And Testing The Camera Module

    NXP Semiconductors Supporting Cameras with CSI return -1; *val = u8RdVal; return u8RdVal; static int my_camera_probe(struct i2c_client *client, const struct i2c_device_id *id) my_camera_i2c_client = client; static __init int mycamera_init(void) u8 err; err = i2c_add_driver(&mycamera_i2c_driver); if (err != 0) pr_err("%s:driver registration failed, error=%d \n",__func__, err);...

  • Page 50: Additional Reference Information

    NXP Semiconductors Supporting Cameras with CSI To test the video0 input (camera), an mxc_v4l2_overlay test is included in the BSP. If the imx-test package has also been included, open the unit test folder and execute the test. root@ ~$ cd /unit_tests/ root@ /unit_tests$ ./mxc_v4l2_overlay.out...

  • Page 51: I.mx 6Dual/6Quad/6Solo/6Duallite Csi Parallel Interface

    NXP Semiconductors Supporting Cameras with CSI Figure 7. IPU block diagram Several sensors can be connected to each of the CSIs. Simultaneous functionality (for sending data) is supported as follows: • Two sensors can send data independently, each through a different port.

  • Page 52: Figure 8. Parallel Interface Layout

    NXP Semiconductors Supporting Cameras with CSI Figure 8. Parallel interface layout In parallel interface, a single value arrives in each clock, except in BT.1120 mode when two values arrive per cycle. Each value can be 8-16 bits wide according to the configuration of DATA_WIDTH. If DATA_WIDTH is configured to N, then 20-N LSB bits are ignored.

  • Page 53: Timing Data Mode Protocols

    NXP Semiconductors Supporting Cameras with CSI Table 5. CSI0 parallel interface signals (continued) Signal IPU Pin Description HSYNC CSI0_HSYNC Horizontal synchronization signal DATA_EN CSI0_DATA_EN Data enable or data ready DATA[19:10] CSI0_DAT [19:10] Pixel data bus, optional to [19:4] The following section explains how the timing data mode protocols use these signals. Not all signals are used in each timing data mode protocol.

  • Page 54: Chapter 15 Supporting Cameras With Mipi-Csi

    NXP Semiconductors Chapter 15 Supporting Cameras with MIPI-CSI 15.1 Introduction This chapter describes how to configure the MIPI-CSI cameras on the i.MX 7 and i.MX8. For more information on MIPI-CSI, see i.MX Linux Reference Manual (IMXLXRM). the "Capture Overview" section in the "Video" chapter in the A variety of capture controllers are used and included to support different cameras.

  • Page 55: Chapter 16 Porting Audio Codecs

    CODEC DAI driver, and DAI LINK driver machine driver) should be registered in the device tree, and accordingly there must be three nodes in the board specified dts file. Device trees are located in for i.MX 6 and i.MX 7 and arch/arm/boot/dts arch/ for all i.MX 8.

  • Page 56: Porting The Reference Bsp To A Custom Board (Audio Codec Is The Same As In The Reference Design)

    NXP Semiconductors Porting Audio Codecs "MICBIAS", "AMIC", "IN3R", "MICBIAS", "DMIC", "MICBIAS", "DMICDAT", "DMIC"; mux-int-port = <2>; mux-ext-port = <3>; hp-det-gpios = <&gpio7 8 1>; /*active low*/ mic-det-gpios = <&gpio1 9 1>; /*active low*/ NOTE For the specific meaning of the device tree binding, see the document located in Documentation/devicetree/ bindings/sound/.

  • Page 57: Table 7. Files For Wm8962 Codec Support

    NXP Semiconductors Porting Audio Codecs The source code for the ALSA driver is located in the Linux kernel source tree at . The following table shows linux/sound/soc the files used for the wm8962 codec support. Table 7. Files for wm8962 codec support...

  • Page 58: Chapter 17 Porting Hifi 4

    NXP Semiconductors Chapter 17 Porting HiFi 4 17.1 Porting HiFi 4 DSP framework The HiFi 4 DSP framework is provided on specific i.MX 8QuadXPlus, i.MX 8QuadMax, and i.MX 8M Plus SoC. Supporting the HiFi 4 on a custom board is documented in the i.MX DSP Porting Guide inlcuded in the i.MX DSP Redistribution package available to customers who have a HiFi 4 license with Cadence.

  • Page 59: Chapter 18 Porting Ethernet

    Porting Ethernet 18.1 Introduction This chapter explains how to port the Ethernet controller driver to the i.MX 6 or i.MX 7 processor. Using i.MX FEC standard driver makes porting simple. Porting needs to address the following three areas: • Pin configuration •...

  • Page 60: Ethernet Configuration

    Data in, bit 3K Because i.MX 6 has more functionality than it has physical I/O pins, it uses I/O pin multiplexing. Every module requires specific pad settings. For each pad, there are up to eight muxing options called ALT modes. For further explanation, see IOMUX chapter in the SoC Application Processor Reference Manual.

  • Page 61: Chapter 19 Porting Usb

    19.1 Introduction The USB supports USB 2.0 on i.MX 6 and i.MX 7 families using the Chip IDEA hardware. On all i.MX 8 families, the USB supports USB 2.0 and USB 3.0. This chapter describes how to configure USB ports.

  • Page 62: Usb Overview For I.mx 6Sll And 6Solox

    To secure HSIC connection, the USB HSIC port must be powered up before the USB HSIC device. 19.2 USB overview for i.MX 6SLL and 6SoloX There are up to three USB ports on i.MX 6 6SLL and 6SoloX serial application processors: • USB OTG1 port •...

  • Page 63: Usb Overview For I.mx 8

    NXP Semiconductors Porting USB NOTE For the USBOTG_ID pin, a pin that has an alternate USBOTG_ID function must be used. • USBOTG_ID • USBOTG_OC_B • One pin used to control the USB_OTG_VBUS signal. For USB OTG2 port, the following signals are used: •...
  • Page 64 NXP Semiconductors Porting USB • USB1_TX_P • USB1_VBUS i.MX Porting Guide , Rev. L5.4.70_2.3.0, 31 December 2020 User's Guide 64 / 66...

  • Page 65: Chapter 20 Revision History

    NXP Semiconductors Chapter 20 Revision History 20.1 Revision History This table provides the revision history. Table 9. Revision history Revision number Date Substantive changes L4.9.51_imx8qxp-alpha 11/2017 Initial release L4.9.51_imx8qm-beta1 12/2017 Added i.MX 8QuadMax L4.9.51_imx8mq-beta 12/2017 Added i.MX 8M Quad L4.9.51_8qm-beta2/8qxp-beta 02/2018 Added i.MX 8QuadMax Beta2 and i.MX...
