NXP Semiconductors Intrinsyc Open-X 8M Quick Start Manual

Package Contents
1. Open-X™ 8M SOM with NXP i.MX 8M processor
2. Open-X™ 8M Carrier board
3. AC Power Adapter
4. HDMI Video Cable
5. 4.5" FWVGA MIPI DSI LCD/touchscreen (optional accessory)

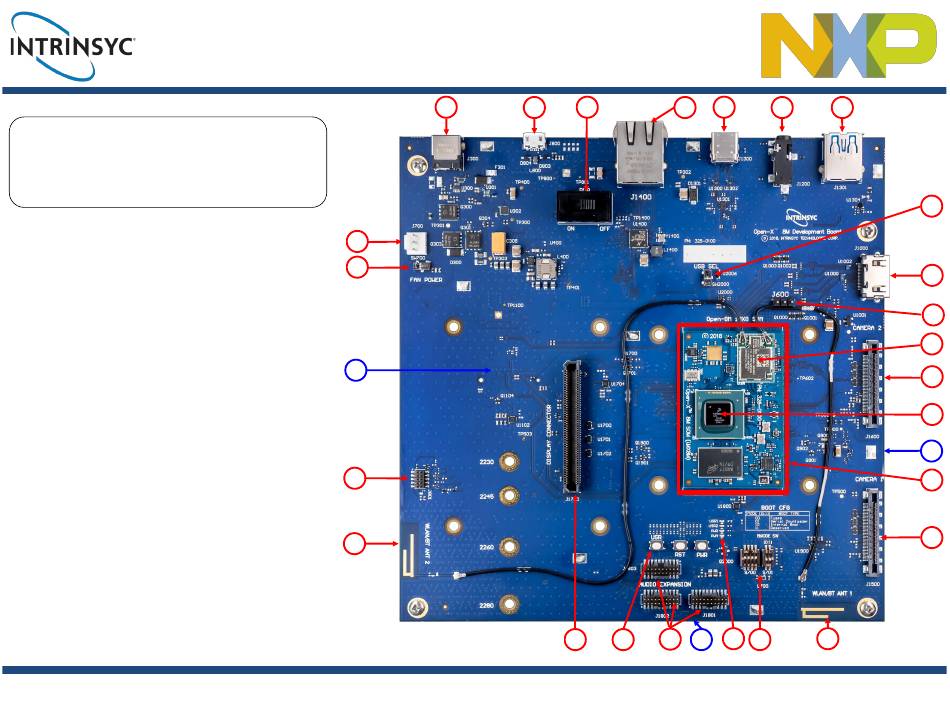

1. 12V DC input jack 23. MIPI DSI LCD/touchscreen
2. Debug UART (USB MicroB)
3. Power on-off switch
24. WLAN PCB Antenna 2
4. Gigabit Ethernet connector
25. JTAG header
5. USB Type-C connector
26. PCIe M.2 Socket (on bottom)
6. 3.5 mm audio line-out jack
27. Fan power on-off switch
7. USB Type-A host port
28. Fan power header
8. USB select switch
9. HDMI video output
10. SOM current sense connector
11. Wi-Fi/BT module
12. MIPI CSI 2 camera connector
13. NXP i.MX 8M SoC
14. Micro SD card slot (on bottom)
15. Open-X 8M System on Module
16. MIPI CSI 1 camera connector
17. WLAN PCB Antenna 1
18. Boot configuration DIP switches
19. 4 x LEDs
20. FPC digital audio expansion
connector (on bottom)
21. Digital audio expansion headers
22. Power, reset, and user buttons
Your use of this document is subject to and governed by those terms and conditions in the Intrinsyc Purchase and Software License Agreement for the Open-X™ 8M Development Kit based on the NXP i.MX 8M Processor, which you or the legal entity you represent, as the case may be,
accepted and agreed to when purchasing an Open-X™ 8M Development Kit from Intrinsyc Technologies Corporation ("Agreement"). You may use this document, which shall be considered part of the defined term "Documentation" for purposes of the Agreement, solely in support of
your permitted use of the Open-X™ 8M Development Kit under the Agreement. Distribution of this document is strictly prohibited without the express written permission of Intrinsyc Technologies Corporation and its respective licensors, which they can withhold, condition or delay in its
sole discretion. Intrinsyc and Open-X are trademarks of Intrinsyc Technologies Corporation, registered in Canada and other countries. Other product and brand names used herein may be trademarks or registered trademarks of their respective owners.
™
Open-X
Quick Start Guide
28
connector to interface with
Intrinsyc display adapter
27
26
25
24
8M Development Kit
1
2
3 5
4
21 19
23 22 20
6 7
8
9
10
11
12
13
14
15
16
17
18
