Menus

The web interface menus allow you to access the full range of the TMT4 Margin Tester features. The front panel provides access to run a
Quick Scan, see Quick Scan results, and view the instrument IP address.

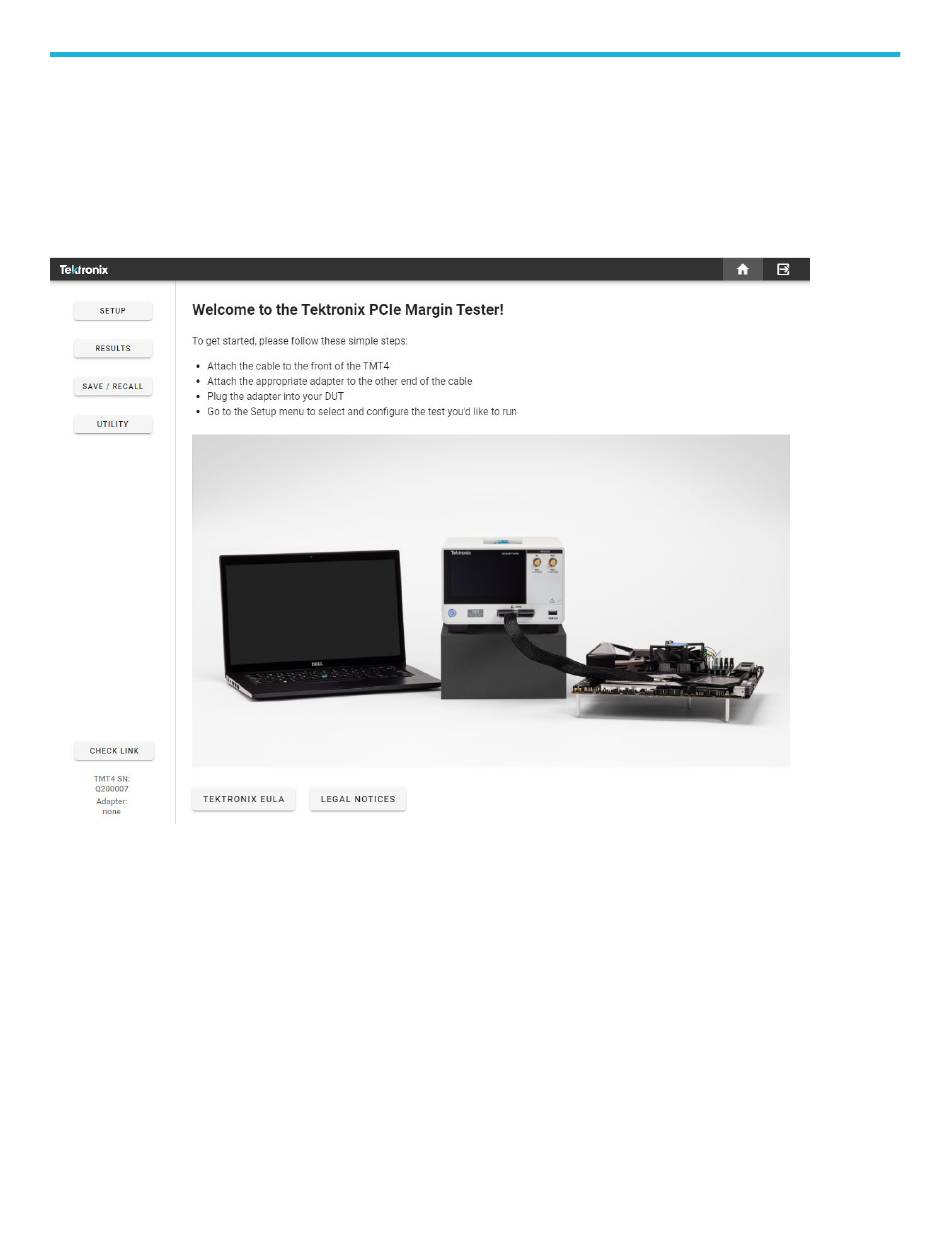

The navigation panel is on the left side of the Web interface Welcome screen. It allows you to access the various menus, check link status,
instrument serial number, and adapter information.
Check Link
Click the Check Link button before running a scan to ensure you have a link. This will report the current configuration of the DUT for its
given speed and link width.
• No link detected: Red text will appear showing "No link".
• Link detected: Green text will appear.
• If there is no adapter connected, the button will return nothing.
TMT4 serial number and adapter status
The TMT4 serial number and the connected adapter type, if any, is displayed at the bottom of the navigation panel.
