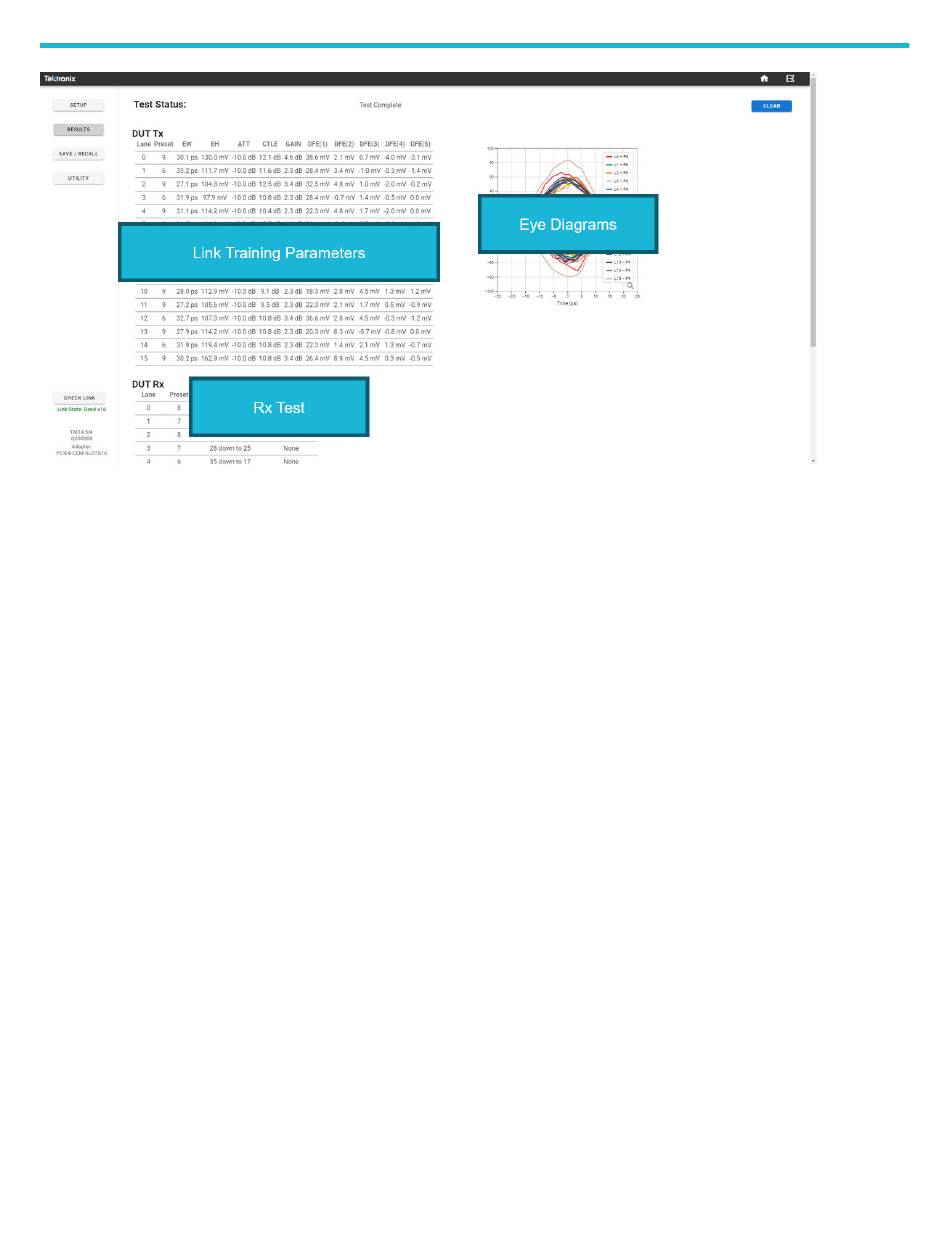

• For a DUT Tx test, the results show the resulting eye diagrams at the receiver of the TMT4 instrument, and the associated link training
parameter values that show the equalization used at the TMT4 receivers to open the eyes.
• For a DUT Rx test, the results table shows the preset each lane is trained to, the expected test range based on the negotiated preset,
and if any errors were found.
