Example setups

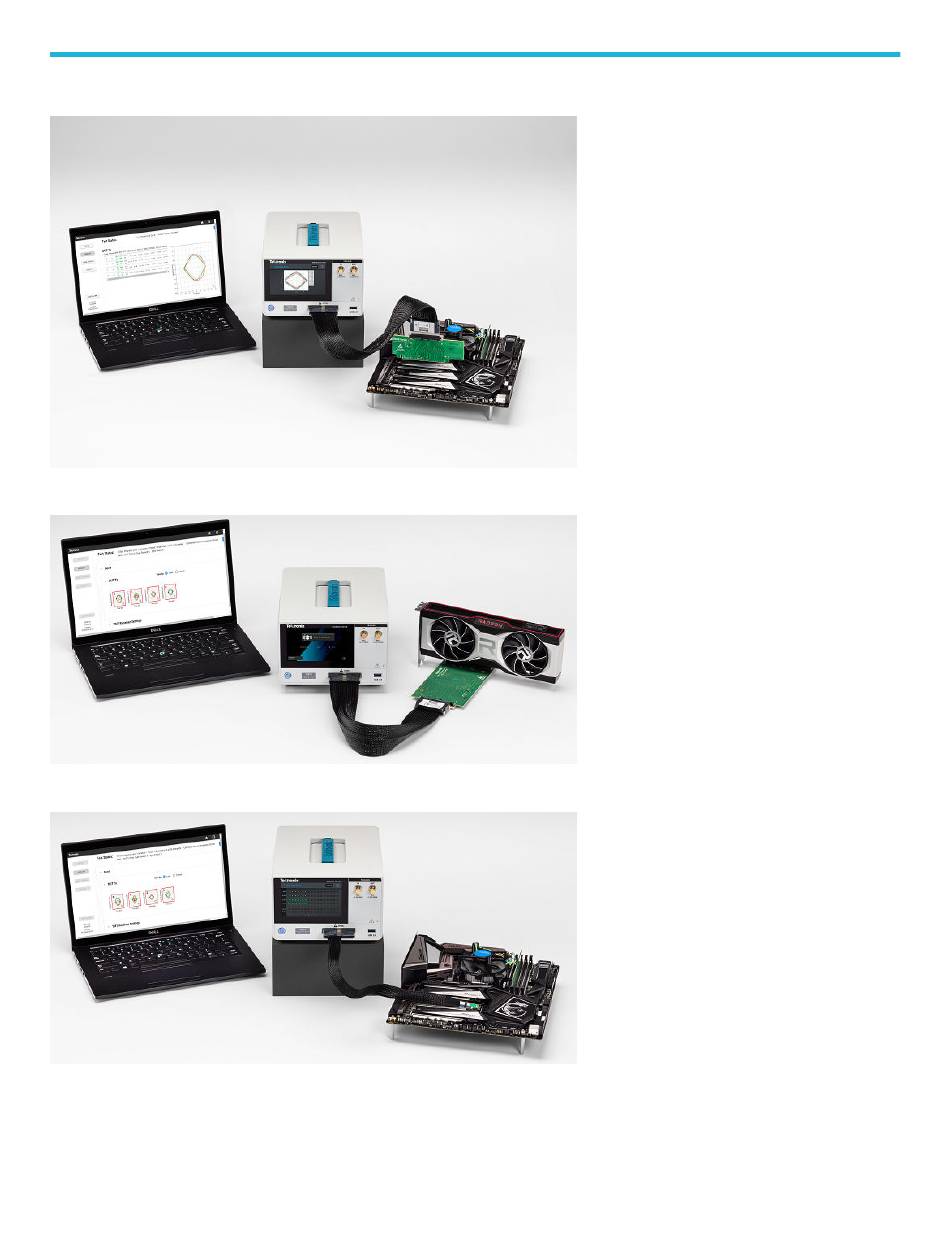

Figure 13: Quick scan setup example using a x16 CEM Edge adapter for motherboard testing. Quick scans can be run and results seen from the front panel and the web UI.
Figure 14: Custom scan setup example using a x16 CEM Slot adapter for graphics card testing. Custom scan can only be run and results seen from the web UI.
Figure 15: Setup using M.2 Edge adapter and integrated cable for motherboard testing.
