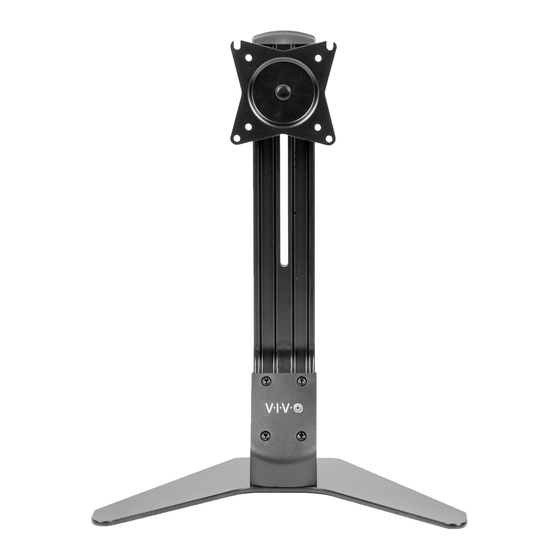

Single Monitor Desk Stand
Instruction Manual
SKU: STAND-V001D
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v001d
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V001D
Summary of Contents for Vivo STAND-V001D
- Page 1 Single Monitor Desk Stand Instruction Manual SKU: STAND-V001D Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v001d GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 Apply pads (M) to underside of base (C). STEP 2 Mount column (A) to base (C) using M6x10 bolts (J) and tighten with Allen wrench (K).
- Page 4 STEP 3 Attach VESA plate (B) to column (A) using knob (H), washer (I), and washer (N). 14x6.5x1.5 16x6.2x1.5...
- Page 5 STEP 4 OPTION A: Flat Back Monitor Insert M4x8 or M4x12 screws (D, E) into top two holes of monitor, leaving 3mm of thread exposed. Hang monitor over slots in VESA mount, insert M4x8 or M4x12 screws into bottom two holes, then tighten.
- Page 6 STEP 4 (continued) OPTION B: Curved Back Monitor Insert M4x30 screws (F) with spacers (G) into top two holes of monitor, leaving 3mm of thread exposed. Hang monitor over slots in VESA mount, insert M4x30 screws with spacers into bottom two holes, then tighten.
- Page 7 STEP 5 Adjust monitor height by loosening the knob (H), then tighten at desired height (NOTE: hold monitor when adjusting height). Adjust tilt joint using the 5mm Allen key (L).
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
