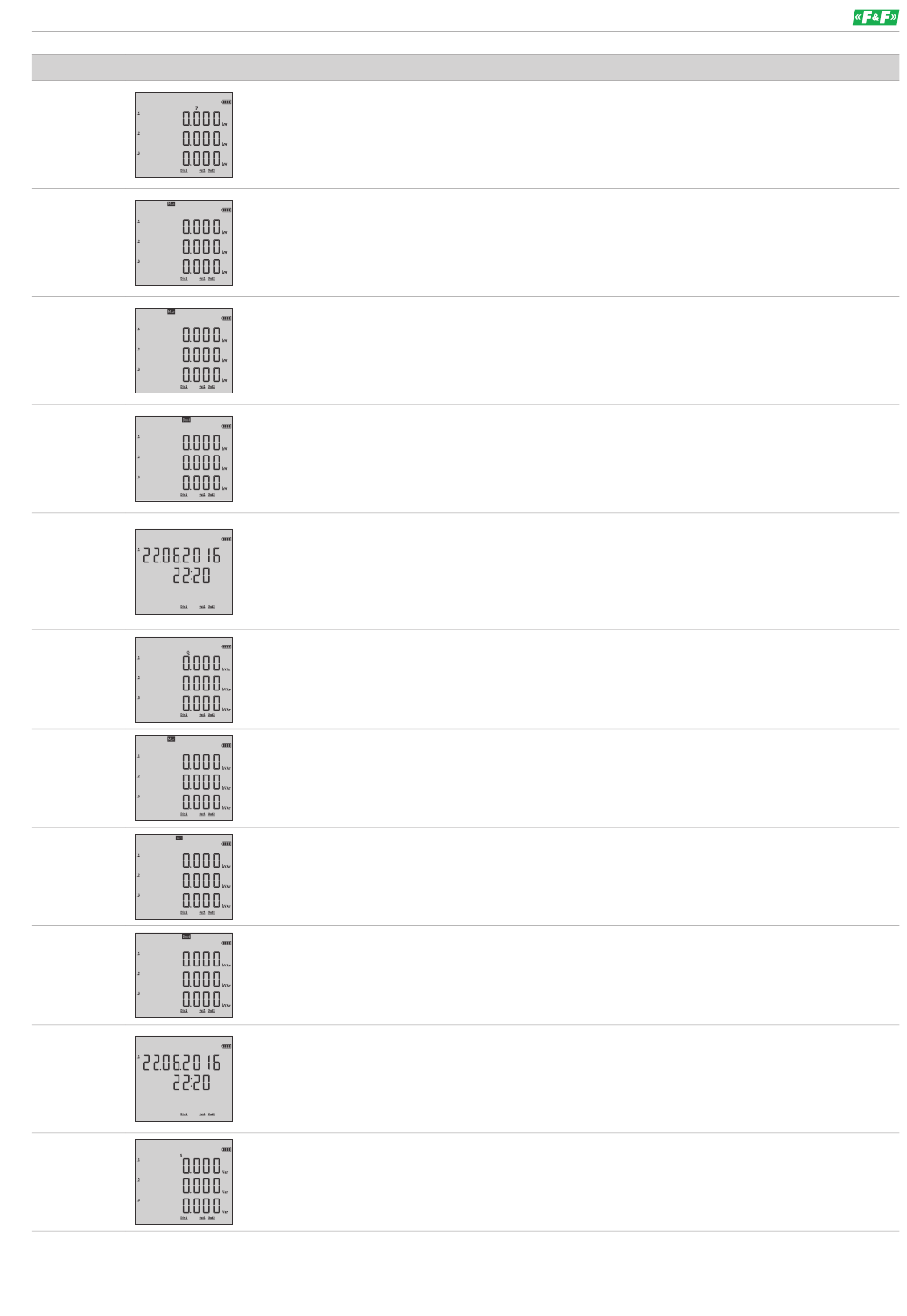

No. Screen
Fig. 25.
Fig. 26.
Fig. 27.
Fig. 28.
Fig. 29.
Fig. 30.
Fig. 31.
Fig. 32.
Fig. 33.
Fig. 34.
Fig. 35.
DMM-5T-3 User manual
It shows the active power (P) values for each zone.
When you press the right button, the screen will show Figure-26.
It shows the maximum active power (P) values for each zone.
When you press the right key, the Figure-27 comes to the screen.
It shows average(Ave) active power (P) value of each phase.
When you press the right key, the Figure-28 comes to the screen.
It shows the active power (P) demand (Dmd) values for each zone.
When you press the right key, the Figure-29 comes to the screen.
It shows the time and date of active power (P) demands of each phase.
When you press the right key ,values which belongs to the L2 and L3 comes
to the screen subsequently.
When you press the right key, the Figure-30 comes to the screen.
It shows the reactive power value (Q) which belongs to each phase.
When the right button is pressed, the Figure-31 comes to the screen.
It shows the maximum reactive power value (Max) which belongs to each
phase. When the right button is pressed, the Figure-32 comes to the screen.
It shows average (Ave) reactive power (Q) which belongs to each phase.
When the right button is pressed, the Figure-33 comes to the screen.
It shows the demand (Dmd) of reactive power (Q) which belongs to each
phase. When the right button is pressed, the Figure-34 comes to the screen.
It shows the dates and time values of the reactive power(Q)'s demand.
When the right botton is pressed values of L2 and L3 phases comes to the
screen subsequently. When the right button is pressed, the Figure-35 comes
to the screen.
It shows apparent power (S) which belongs to each phase.
When the right button is pressed, the Figure-36 comes to the screen.
