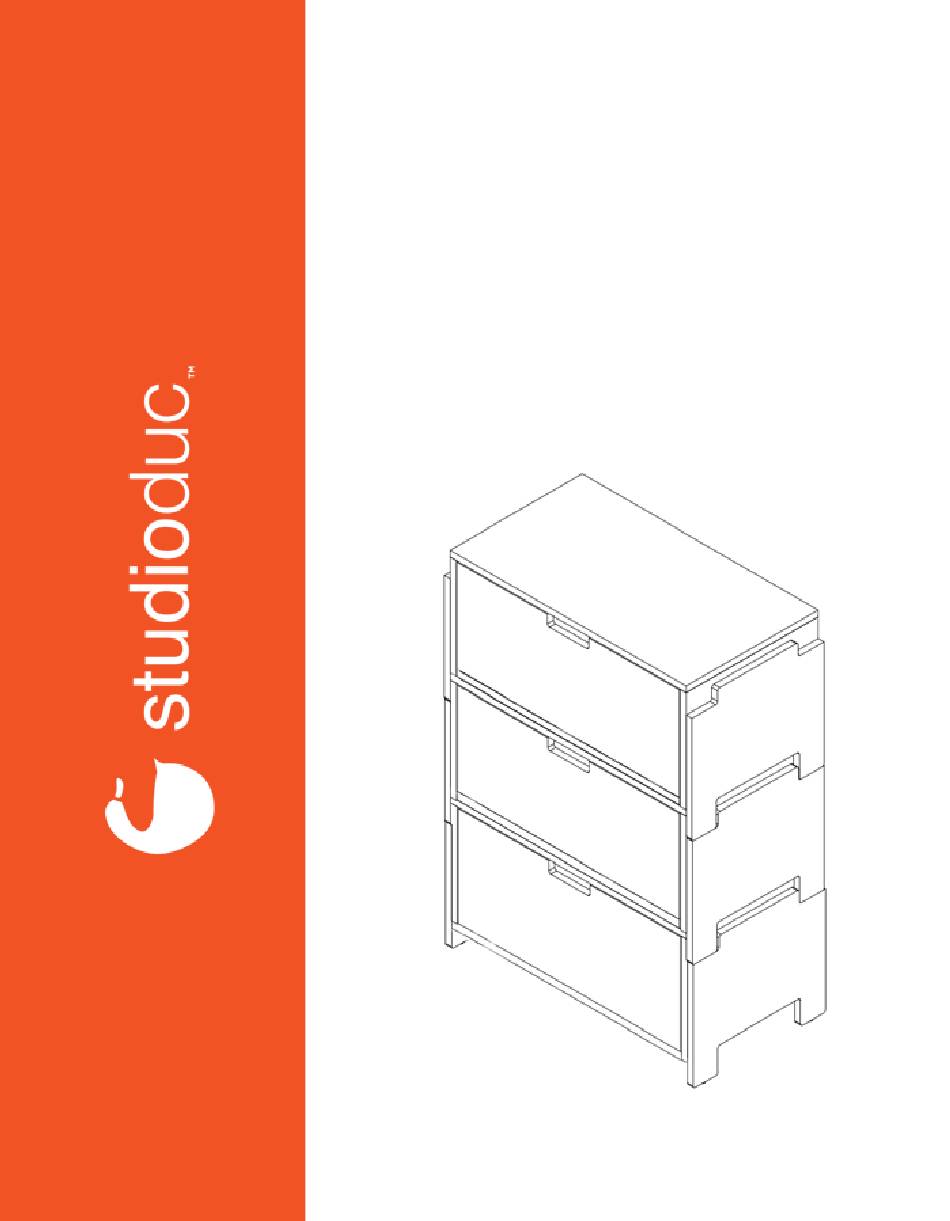

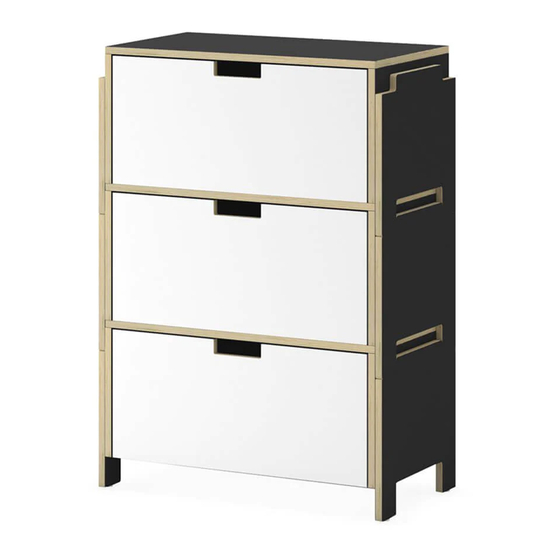

- Page 1 ASSEMBLY INSTRUCTIONS juno stacking toy storage a how-to guide that won’t leave you in tears...
- Page 2 parenting is hard. this is easy. no really, it is. MADE HERE™ MADE WELL™ MADE SAFE MADE SMART...
- Page 3 want to watch this assembly IRL? (acronym challenged? that means “in real life”.) open the camera on your phone and place it over the QR code below to see our NYC studio dream team do all the heavy lifting (just kidding, there is none!) or go to ducducnyc.com/pages/assembly-instructions...
- Page 4 thank you for selecting a studio duc product!
-
Page 5: Maintenance
please check contents against the components list in these instructions. also, please ensure there was no damage that may have occurred in shipping. if any components are missing or you find any damage, please contact ducduc before continuing. read all the instructions before use. pay close attention to the safety warnings in these instructions. -
Page 6: What's In The Box
WHAT’S IN THE BOX: L side panel R side panel drawer face drawer box back back panel L drawer box side R drawer box side bottom drawer box bottom safety strap kit hammer cap (with hardware) -
Page 7: What You'll Need
WHAT YOU’LL NEED: phillips head screwdriver household hammer or and/or drill with 6mm bit rubber mallet a soft surface to assemble on 15 minutes (like a rug or some of the corrugate (or less) box your piece arrived in) 2 people plus a dog for moral support (unless you’re a cat person) - Page 8 lean R side panel (A2) against a wall as shown. insert connectors of back panel (B) into slots on R side panel (A2). push down at the connection to lock into place. still confused? scan this code to watch the assembly video!
- Page 9 insert connectors of back panel (B) into slots on L side panel (A1). push down at the connection to lock into place. have a friend gently flare L + R side panels (A1 + A2) outward as shown. still confused? scan this code to watch the assembly video!
- Page 10 with the side panels flared outward, insert connectors of bottom (C) into slots on R side panel (A2). insert remaining connectors of bottom (C) into slots on L side panel (A1). still confused? scan this code to watch the assembly video!
- Page 11 once all connectors and slots are lined up and side panels are back to square position, apply hammer cap (E) to the head of a household hammer and tap bottom (C) until it is flush with the backside of back panel (B). with a friend, flip partially assembled case into upright position.
- Page 12 now we build the drawers! starting with drawer face (DB1) facing down, insert connectors of both drawer box side panels (DB3 + DB4) into slots on drawer face (DB1). push down at the connections to lock into place. rotate the partially assembled drawer box as shown. slide drawer box bottom (DB5) into place using grooves on the drawer box side panels (DB3 + DB4) as guides.
- Page 13 again, rotate partially assembled drawer box as shown. insert connectors of drawer box back (DB2) into slots on drawer box sides (DB3 + DB4). push down at the connections to lock into place. use hammer and hammer cap (E) if needed. pull drawer glides out to extended position as shown.
- Page 14 place one assembled drawer box onto extended glides as shown. from underside of drawer, use hands to pull each glide forward until it locks into connection with glide hardware attached to drawer box bottom (DB5). the drawer will be secure when you hear a click on each connection.
- Page 15 before you move forward! The following instructions describe how to stack your toy storage units and apply the safety straps if stacking two or more. If you will not be stacking your toy storage units, you can stop here.
- Page 16 Place your stacking toy storage unit in the area it will stay. Do not try to move the unit once it has been stacked. Have a friend help you lift the second stacking toy storage on top of the first. Make sure the notches in the legs are aligned with the grooves in the top of the unit below.
- Page 17 Place your stacking toy storage unit in the area it will stay. Do not try to move the unit once it has been stacked. still confused? scan this code to watch the assembly video!
- Page 18 safety strap installation the last step for your stacking toy storage is to install the safety strap included in the box. reference the separate instructions enclosed in the envelope.
- Page 19 hooray! you did it! give yourself a pat on the back, take a bow, or go house a pint of ice cream…we don’t judge.
- Page 20 prefer to talk to a human instead? we’re here for you! contact our customer advocate team below: 212.226.1868 quack@ducducnyc.com live chat at 200 lexington, no. 1201 ducducnyc.com ny, ny 10016...
