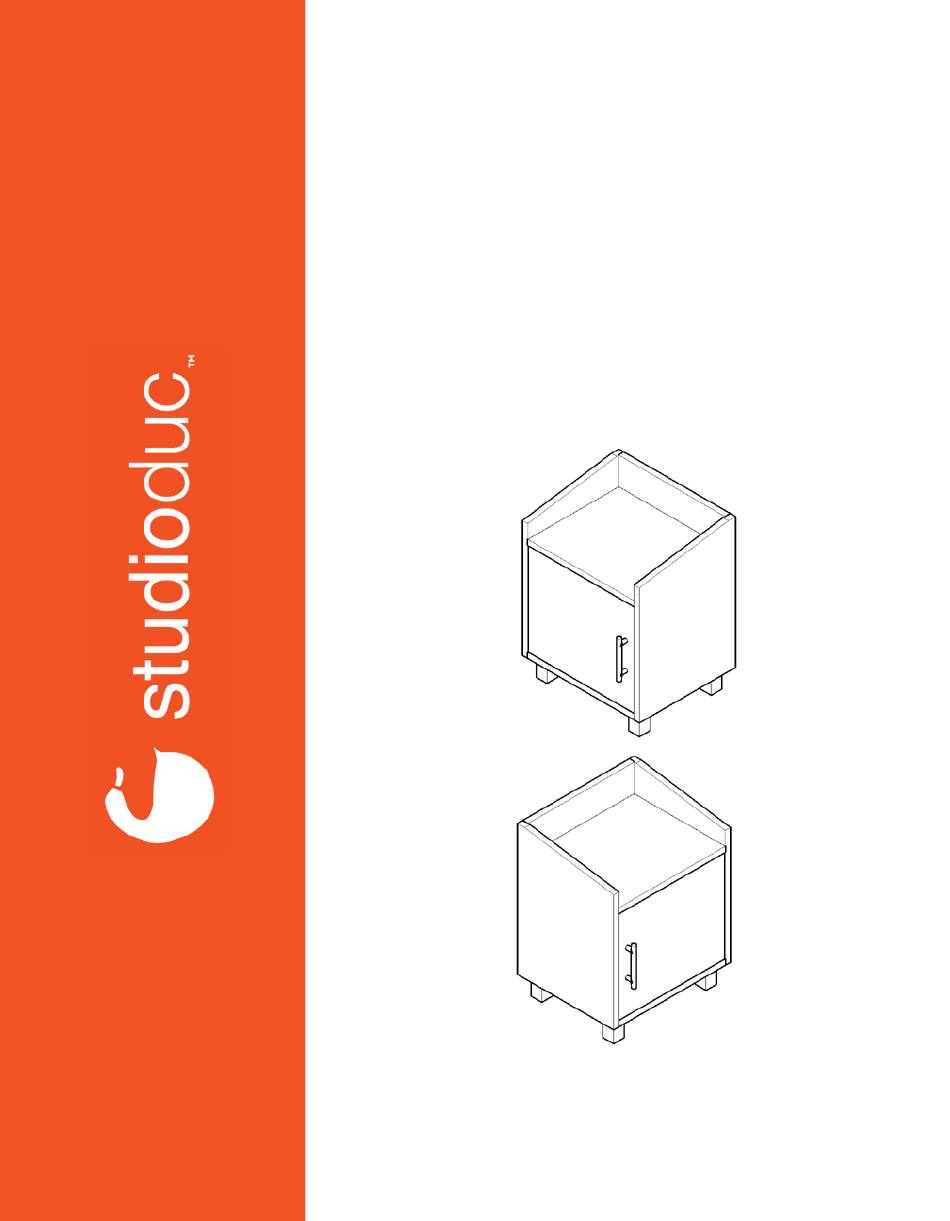

- Page 1 ASSEMBLY INSTRUCTIONS indi nightstand a how-to guide that won’t leave you in tears...
- Page 2 parenting is hard. this is easy. no really, it is. MADE HERE™ MADE WELL™ MADE SAFE MADE SMART...
- Page 3 want to watch this assembly IRL? (acronym challenged? that means “in real life”.) open the camera on your phone and place it over the QR code below to see our NYC studio dream team do all the heavy lifting (just kidding, there is none!) or go to ducducnyc.com/pages/assembly-instructions...
- Page 4 thank you for selecting a studio duc product!
- Page 5 please check contents against the components list in these instructions. also, please ensure there was no damage that may have occurred in shipping. if any components are missing or you find any damage, please contact ducduc before continuing. read all the instructions before use. pay close attention to the safety warnings in these instructions.
-
Page 6: What's In The Box
WHAT’S IN THE BOX: pre-attached hinge hardware pre-attached magnetic catch R side L side back hardware pre-attached hinge hardware pre-attached magnetic catch hardware bottom door F (x4) G (x4) foot JCB bolt (25mm) allen key (4mm) L (x2) hammer cap indi pull screw for indi pull... -
Page 7: What You'll Need
WHAT YOU’LL NEED: household hammer or phillips head screwdriver and/or rubber mallet drill with 6mm bit 20 minutes a soft surface to assemble on (or less) (like a rug or some of the corrugate box your piece arrived in) 2 people plus a dog for moral support (unless you’re a cat person) - Page 8 lean bottom (D) against a wall as shown. using the provided allen key (H) and JCB bolts (G x4), attach feet (F x4) to bottom (C). once all feet are securely attached, set the assembled base aside. duc insider tip! be sure the edges of the feet are square to the edges of the bottom...
- Page 9 lean R side (A1) against a wall as shown. insert connectors on back (B) into the slots on R side (A1) as shown. push down at the connection to lock into place. still confused? scan this code to watch the assembly video!
- Page 10 insert connectors on back (B) into slots on L side (A2). push down at the connection to lock into place. have a friend gently flare both sides (A1 + A2) outward as shown. still confused? scan this code to watch the assembly video!
- Page 11 with the sides flared outward, insert the connectors on bottom (D) and top (C) into slots on R side (A1). important! when inserting the top, be sure the pre- attached magnetic catch hardware is oriented as shown insert remaining connectors on bottom (D) and top (C) into slots on L side (A2). still confused? scan this code to watch the assembly video!
- Page 12 once all connectors and slots are lined up and case sides are back to square position, apply hammer cap (I) to the head of a household hammer and tap bottom (D) and top (C) until there is no gap at the connection to back (B). use your phillips screwdriver and screws (L x2), attach indi pull hardware (K) to the front door (E).
- Page 13 RIGHT side. we know choices can be a blessing and a curse, LEFT so poll all invested parties, phone a friend, or do whatever you need to help make your decision.
- Page 14 HINGES ON RIGHT: the indi nightstand is shipped with the hardware pre-attached for a right-hinged installation. simply attach door (E) to R side (A1) by lining up the hinge hardware and firmly pushing on it until it clicks into place.
- Page 15 HINGES ON LEFT: use a phillips head screwdriver or power drill to remove the screws (x2) that attach each piece of hinge hardware (x2) to R side (A1). once removed, rotate the hardware 180° and use the same screws to securely attach each piece to the L side (A2) using the pre-drilled pilot holes as a guide.
- Page 16 use a phillips head screwdriver or power drill to remove the screw from the magnetic catch hardware attached to interior of door (E). once removed, reattach the hardware to the opposite end of the door (E) using the pre-drilled pilot holes as a guide. once all hardware is re-oriented and securely attached to the nightstand, install door (E) to L side (A2) by lining up the hinge hardware and firmly pushing on it until it clicks into place.
- Page 17 voilà! you did it! give yourself a pat on the back, take a bow, or go house a pint of ice cream…we don’t judge.
- Page 18 prefer to talk to a human instead? we’re here for you! contact our customer advocate team below: 212.226.1868 quack@ducducnyc.com live chat at 200 lexington, no. 1201 ducducnyc.com ny, ny 10016...
